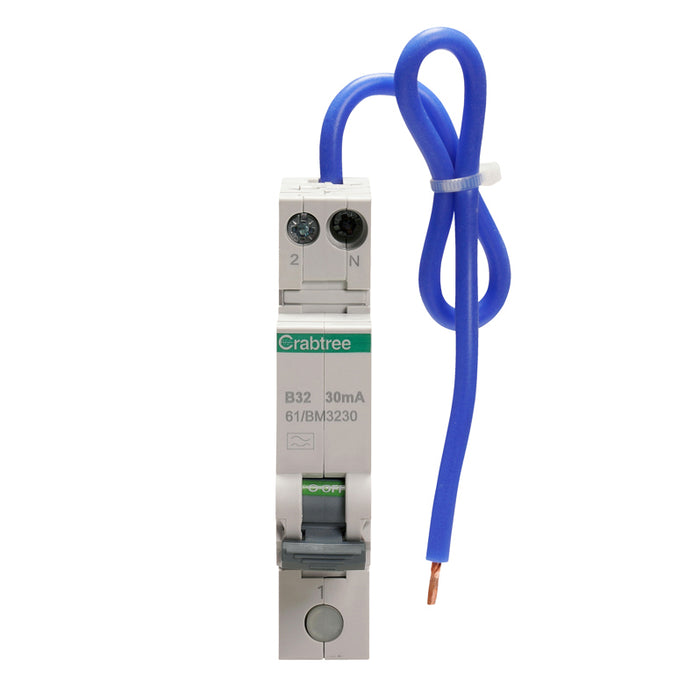

Crabtree 61/BM3230 32A 30mA SPswN B Curve 6kA Type A Miniature Bi-Directional RCBO

Crabtree 61/BM3230 32A 30mA SPswN B Curve 6kA Type A Miniature Bi-Directional RCBO

SKU 61/BM3230
£15.95 - £15.95
£15.95 inc VAT £13.29 exc VAT
£15.95 - £15.95
£15.95 inc VAT £13.29 exc VAT inc VAT £13.29 exc VAT
Availability:
198 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

The Crabtree Starbreaker 61/BM3230 32A 30mA Type A RCBO is a compact, bi-directional circuit-protection device designed for installation in compatible Crabtree Starbreaker consumer units. It combines a 32A B-curve miniature circuit-breaker function with 30mA Type A residual-current protection, delivering overcurrent and earth-leakage protection within one space-saving module.

Specification
  • Number of poles (total) 2
  • Number of protected poles 1
  • Rated voltage 230 V
  • Rated insulation voltage Ui 400 V
  • Rated impulse withstand voltage Uimp 4 kV
  • Rated current 32 A
  • Rated fault current 0.03 A
  • Leakage current type A
  • Current limiting class 3
  • Product Standard/s IEC 61009-1
  • CE Conformity Yes
  • WEEE Symbol Yes
  • Built-in depth 73 mm
  • Flush-mounted installation No
  • Anti-nuisance tripping version No
  • Degree of protection (IP) IP20
  • Voltage type AC
  • Frequency 50 Hz
  • Release characteristic B
  • Concurrently switching neutral conductor Yes
  • With interlocking device No
  • Over voltage category 3

Datasheet
