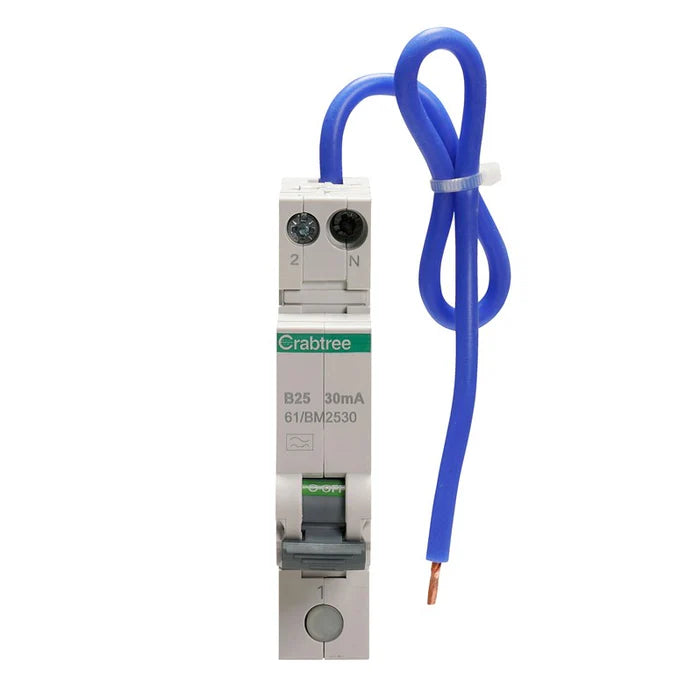

Crabtree 61/BM2530 25A 30mA SPswN B Curve 6kA Type A Miniature Bi-Directional RCBO

Crabtree 61/BM2530 25A 30mA SPswN B Curve 6kA Type A Miniature Bi-Directional RCBO

SKU 61/BM2530
Save 34% Save 34%
£23.94
£23.94 - £23.94
£23.94
£15.90 inc VAT £13.25 exc VAT
£15.90 - £15.90
£15.90 inc VAT £13.25 exc VAT inc VAT £13.25 exc VAT
Availability:
39 in stock, ready to be shipped

Estimated delivery time: Next working day

Specification
  • Single module, Miniature Bi-Directional RCBO
  • 25A B curve (MCB), 30mA Type A (RCD)
  • Single pole with switched neutral
  • Plug in
  • Number of poles (total) 2
  • Number of protected poles 1
  • Rated voltage 230 V
  • Rated insulation voltage Ui 400 V
  • Rated impulse withstand voltage Uimp 4 kV
  • Rated current 25 A
  • Rated fault current 0.03 A
  • Leakage current type A
  • Current limiting class 3
  • Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA
  • Disconnection characteristic Undelayed
  • Voltage type AC
  • Frequency 50 Hz
  • Release characteristic B
  • Concurrently switching neutral conductor Yes
  • With interlocking device No
  • Over voltage category 3
  • Ambient temperature during operating -5 - 40 °C
  • Width in number of modular spacings 1
  • Built-in depth 73 mm
  • Flush-mounted installation No
  • Anti-nuisance tripping version No
  • Degree of protection (IP) IP20
  • Connectable conductor cross section solid-core .75-16 mm²
  • Connectable conductor cross section multi-wired .75-16 mm²
  • Product Standard/s IEC 61009-1
  • CE Conformity Yes
  • WEEE Symbol Yes

Datasheet
