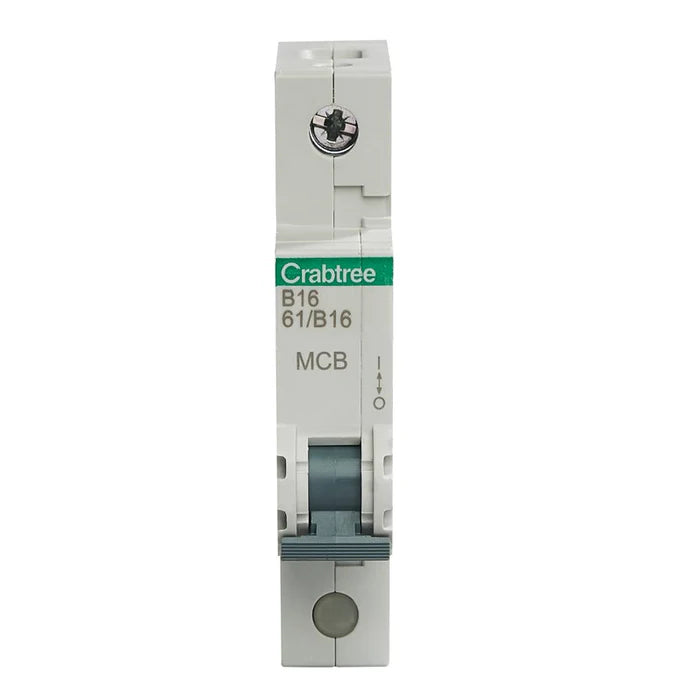

Crabtree 61/B16 16A SP Type B 6kA MCB

Crabtree 61/B16 16A SP Type B 6kA MCB

SKU 61/B16
£2.64 - £2.64
£2.64 inc VAT £2.20 exc VAT
£2.64 - £2.64
£2.64 inc VAT £2.20 exc VAT inc VAT £2.20 exc VAT
Availability:
327 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

Upgrade your electrical safety with the Crabtree 61/B16, a high-performance 16A Type B Miniature Circuit Breaker designed for use in Starbreaker consumer units. Ideal for domestic and light commercial installations, this single pole MCB offers reliable protection against overloads and short circuits with a 6kA breaking capacity and energy limiting Class 3 performance.

Specification
  • Release characteristic B
  • Number of poles (total) 1
  • Number of protected poles 1
  • Rated current 16 A
  • Rated voltage 230 V
  • Rated insulation voltage Ui 400 V
  • Rated impulse withstand voltage Uimp 4 kV
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V 6 kA
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V 6 kA
  • Voltage type AC
  • Frequency 50 Hz
  • Current limiting class 3
  • Flush-mounted installation No
  • Concurrently switching neutral conductor No
  • Over voltage category 3
  • Additional equipment possible No
  • Width in number of modular spacings 1
  • Built-in depth 73 mm
  • Degree of protection (IP) IP20
  • Ambient temperature during operating -5 - 40 °C
  • Connectable conductor cross section multi-wired .75-25 mm²
  • Product Standard/s BS EN 60898-1
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes
