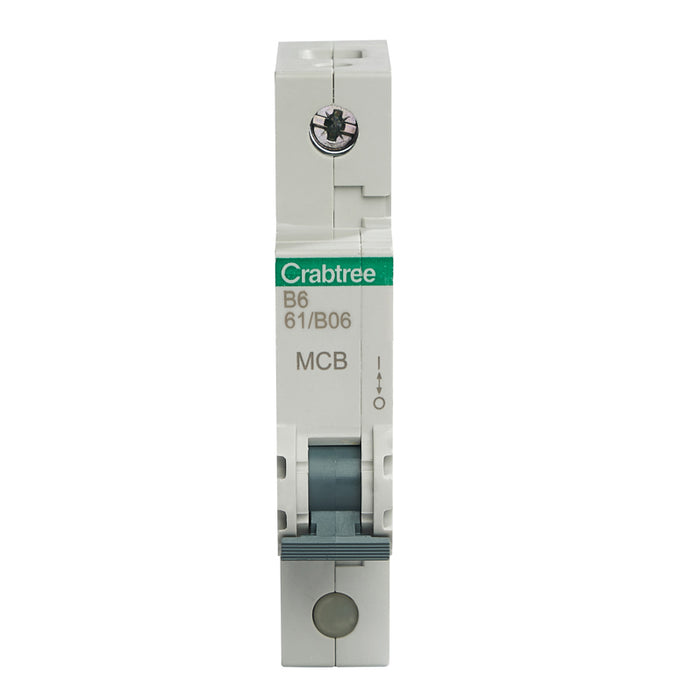

Crabtree 61/B06 6A SP Type B 6kA MCB

Crabtree 61/B06 6A SP Type B 6kA MCB

SKU 61/B06
£2.64 - £2.64
£2.64 inc VAT £2.20 exc VAT
£2.64 - £2.64
£2.64 inc VAT £2.20 exc VAT inc VAT £2.20 exc VAT
Availability:
102 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

The Crabtree Starbreaker 61/B06 6A Type B MCB is a compact miniature circuit breaker designed to protect compatible electrical circuits against overload and short-circuit faults. Its 6A rated current, single-pole configuration and Type B tripping characteristic make it suitable for appropriately designed final circuits installed within compatible Crabtree Starbreaker consumer units.

The Crabtree 61/B06 provides a rated short-circuit breaking capacity of 6kA at both 230V and 400V. Its Class 3 current-limiting performance helps restrict the electrical energy released during a short-circuit fault, supporting effective protection for compatible cables, equipment and fixed electrical installations.

Specification
  • Release characteristic B
  • Number of poles (total) 1
  • Number of protected poles 1
  • Rated current 6 A
  • Rated voltage 230 V
  • Rated insulation voltage Ui 400 V
  • Frequency 50 Hz
  • Current limiting class 3
  • Flush-mounted installation No
  • Concurrently switching neutral conductor No
  • Over voltage category 3
  • Additional equipment possible No
  • Width in number of modular spacings 1
  • Built-in depth 73 mm
  • Degree of protection (IP) IP20
  • Ambient temperature during operating -5 - 40 °C
  • Connectable conductor cross section multi-wired .75-25 mm²
  • Product Standard/s BS EN 60898-1
  • CE Conformity Yes
  • WEEE Symbol Yes
  • UKCA Conformity Yes

Datasheet
