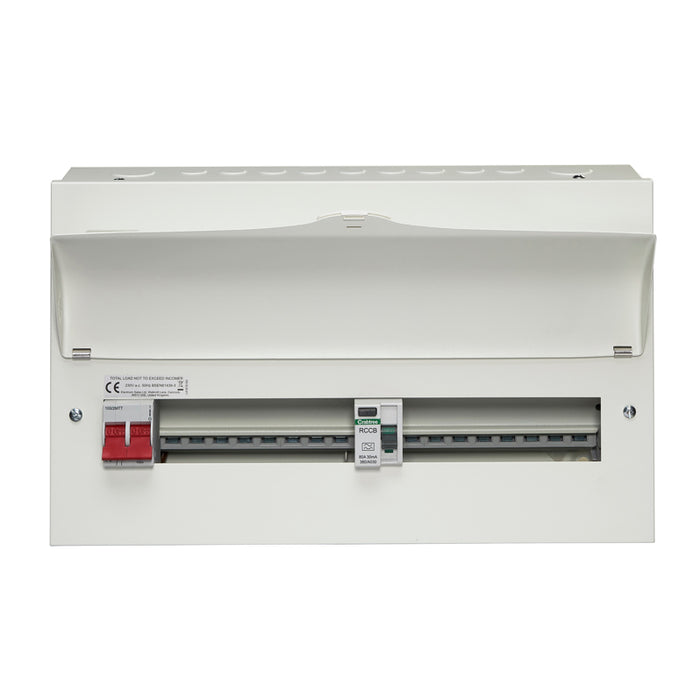

Crabtree 516/2883B 16 Way Split Load Consumer Unit 100A Main Switch +8, 80A 30mA RCD +8

Name: Crabtree 516/2883B 16 Way Split Load Consumer Unit 100A Main Switch +8, 80A 30mA RCD +8
Brand: Crabtree
SKU: 516/2883B
Price: 98.5 GBP
Availability: InStock

SKU 516/2883B

£0

£98.50 - £98.50

£98.50 inc VAT £82.08 exc VAT

£98.50 - £98.50

£98.50 inc VAT £82.08 exc VAT inc VAT £82.08 exc VAT

Quantity

More payment options

Estimated delivery time: Next working day

Specification

Full metal enclosure
Plug in insulated busbar assembly
8+8W Split load
1x 80A 30mA type A RCCB
Mounting method Surface mounted (plaster)
Number of phases 1
Protection Miniature- / earth leakage circuit breaker
Total number of groups 2
Number of poles main switch 2
Main switch rated current 100 A
Over voltage protection No
Material housing Steel
Degree of protection (IP) IP2XC
Width in number of modular spacings 20
Extension possible No
With transparent cover No
Lockable Yes
Product Standard/s BS EN 61439-3
Frequency 50 Hz
CE Conformity Yes
WEEE Symbol Yes
UKCA Conformity Yes
Amperage 100 A
Operating Voltage 230 V
Type of Current AC
Consumer Unit Type Split load
Total final circuit modular ways 16
Busbar type Plug in
Main switch rating 100 A
Main switch final circuit modular ways 8

Datasheet

Product Dimensions

Height 261 mm
Width 438 mm
Width in number of modular spacings 20
Depth 121 mm
