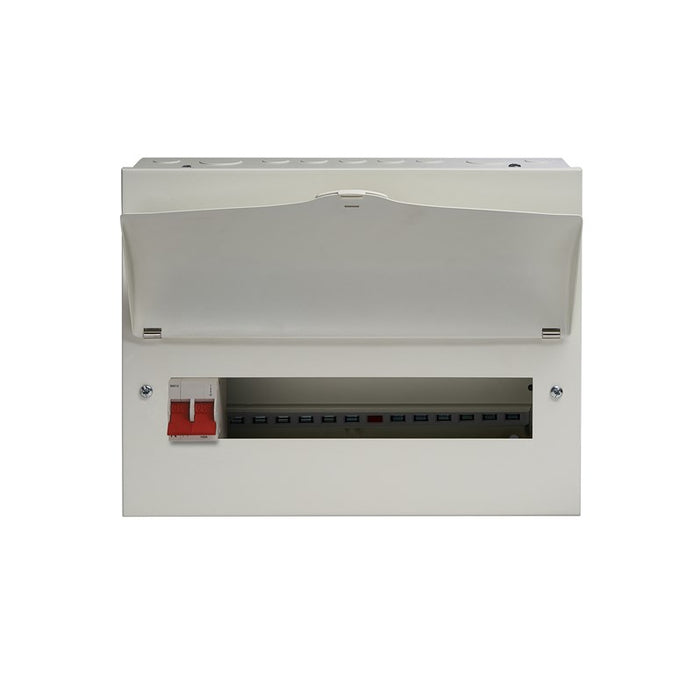

Crabtree 513/2B 13 Way Consumer Unit Main Switch 100A

Name: Crabtree 513/2B 13 Way Consumer Unit Main Switch 100A
Brand: Crabtree
SKU: 513/2B
Price: 63.5 GBP
Availability: InStock

SKU 513/2B

£63.50 - £63.50

£63.50 inc VAT £52.92 exc VAT

£63.50 - £63.50

£63.50 inc VAT £52.92 exc VAT inc VAT £52.92 exc VAT

Availability:

7 in stock, ready to be shipped

Quantity

Estimated delivery time: Next working day

Description

13W Main switch only consumer unit. Includes a 100A main switch with twin line and neutral supply terminals and a 100A insulated plug in busbar assembly.

Accepts all Starbreaker miniature final circuit protection devices; MCBs, RCBOs and AFDDs. Accepts the Starbreaker miniature type 2 SPD, SBT2SPD3W/1.

Constructed from a full metal enclosure with curved visor and temporary locking facility.

Specification

Mounting method Surface mounted (plaster)
Number of phases 1
Protection Miniature- / earth leakage circuit breaker
Total number of groups 1
Number of poles main switch 2
Main switch rated current 100 A
Over voltage protection No
Material housing Steel
Degree of protection (IP) IP2XC
Extension possible No
With transparent cover No
Lockable Yes
Product Standard/s BS EN 61439-3
Frequency 50 Hz
CE Conformity Yes
WEEE Symbol Yes
UKCA Conformity Yes
Amperage 100 A
Operating Voltage 230 V
Type of Current AC
Consumer Unit Type Main switch only
Total final circuit modular ways 13
Busbar type Plug in

Datasheet

Product Dimensions

Width 343mm

Height 261mm

Depth 121mm

View Datasheet
