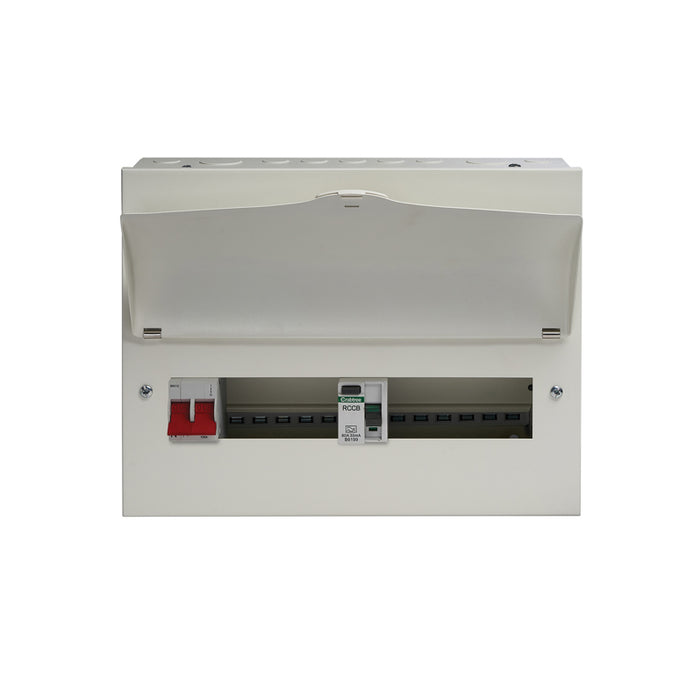

Crabtree 511/2583B 11 Way Split Load Consumer Unit 100A Main Switch +5, 80A 30mA

• Mounting method Surface mounted (plaster)
• Number of phases 1
• Protection Miniature- / earth leakage circuit breaker
• Total number of groups 2
• Number of poles main switch 2
• Main switch rated current 100 A
• Over voltage protection No
• Material housing Steel
• Degree of protection (IP) IP2XC
• Width in number of modular spacings 15
• Extension possible No
• With transparent cover No
• Lockable Yes
• Product Standard/s BS EN 61439-3
• Frequency 50 Hz
• CE Conformity Yes
• WEEE Symbol Yes
• UKCA Conformity Yes
• Amperage 100 A
• Operating Voltage 230 V
• Type of Current AC
• Consumer Unit Type Split load
• Total final circuit modular ways 11
• Busbar type Plug in
• Main switch rating 100 A
• Main switch final circuit modular ways 5

Datasheet

Height : 261 mm

Width : 343 mm

Depth : 121 mm

What is the Crabtree 511/2583B?

The Crabtree 511/2583B is an 11-way Starbreaker split-load consumer unit with a 100A main switch and an 80A 30mA Type A RCCB.

How are the 11 circuit ways divided?

Five final-circuit ways are supplied from the 100A main switch, while six ways are protected by the included 80A 30mA Type A RCCB.

Is the enclosure made from metal?

Yes. The Crabtree 511/2583B has a full steel enclosure with a RAL 9010 white finish.

Is the consumer unit surface mounted?

Yes. The manufacturer specifies a surface-mounted installation method.

What are the dimensions?

It measures 343mm wide, 261mm high and 121mm deep.

How many modular spaces does it have?

The enclosure provides 15 modular spaces, with 11 final-circuit modular ways.

What is its IP rating?

The Crabtree 511/2583B has an IP2XC protection rating.

Does it include surge protection?

No. The manufacturer states that overvoltage protection is not included.

Is the consumer unit lockable?

Yes. The manufacturer lists the steel enclosure as lockable
