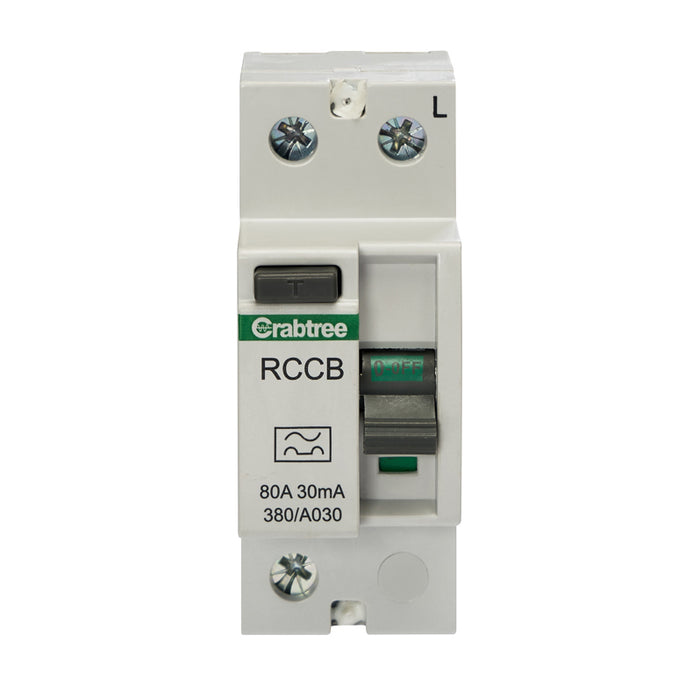

Crabtree 380/A030 Starbreaker 80A Double Pole 30mA Type A RCD

Name: Crabtree 380/A030 Starbreaker 80A Double Pole 30mA Type A RCD
Brand: Crabtree
SKU: 380/A030
Price: 44.25 GBP
Availability: InStock

SKU 380/A030

£44.25 - £44.25

£44.25 inc VAT £36.88 exc VAT

£44.25 - £44.25

£44.25 inc VAT £36.88 exc VAT inc VAT £36.88 exc VAT

Availability:

18 in stock, ready to be shipped

Quantity

Estimated delivery time: Next working day

Description

Crabtree 380/A030 Starbreaker 80A Double Pole 30mA Type A RCD

Specification

Number of poles 2
Rated voltage 230 V
Rated current 80 A
Rated fault current 0.03 A
Rated insulation voltage Ui 400 V
Rated impulse withstand voltage Uimp 4 kV
Mounting method DIN rail
Leakage current type A
Selective protection No
Frequency 50 Hz
Additional equipment possible No
With interlocking device No
Degree of protection (IP) IP20
Width in number of modular spacings 2
Connectable conductor cross section multi-wired 50 mm²
Product Standard/s BS EN 61008
CE Conformity Yes
WEEE Symbol Yes
UKCA Conformity Yes
Rated making and breaking capacity I∆m 6000 A
Rated residual making and breaking capacity Im 1000 A
Energy let through maximum 31 kA²s
Energy let through peak 4.7 kA

Datasheet
