CP Electronics EBDSPIR-PRM Ceiling Mounted PIR

CP Electronics EBDSPIR-PRM Ceiling Mounted PIR

SKU EBDSPIR-PRM
£61.70 - £61.70
£61.70 inc VAT £51.42 exc VAT
£61.70 - £61.70
£61.70 inc VAT £51.42 exc VAT inc VAT £51.42 exc VAT
Availability:
40 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

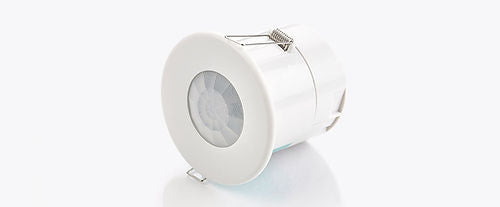

This compact PIR detector provide automatic control for lighting, heating and ventilation loads. The PIR sensor can be mounted either flush into a ceiling tile or using a surface mounting box.

Specification
  • Low profile design
  • Self contained unit
  • Pluggable
  • Switching with lux level sensing
  • Programmable via our programming handset
  • Absence detection functionality
  • Range up to 7m at 2.8m mounting height
  • Programmable via our UHS5 or UNLCDHS infrared handsets
  • User handset available to control on/off, lux levels and preset scenes
  • Flush or surface mounted with DBB accessory
  • 5 year warranty
  • Control method - PRM Switching
  • Supply voltage AC - 230 VAC +/- 10%
  • Supply frequency (Hz) - 50Hz
  • Power consumption parasitic - 895mW
  • Terminal capacity - 2.5mm²
  • Maximum loads:

- Incandescent lighting: 10A

- Fluorescent lighting: 10A

- Compact fluorescent lighting: 10A

- LED lighting: 10A

- Resistive heaters: 10A

  • Number of drivers/ballasts - Up to 10
  • Light detection range - Usable 15-950 Lux
  • Time out range - 10s-99m
  • Working temperature range - -10 to 35°C
  • Humidity - 5 to 95% non-condensing
  • Material (casing) - Flame retardant ABS and PC/ABS
  • Insulation class - 2
  • IP rating - 40

Datasheet
