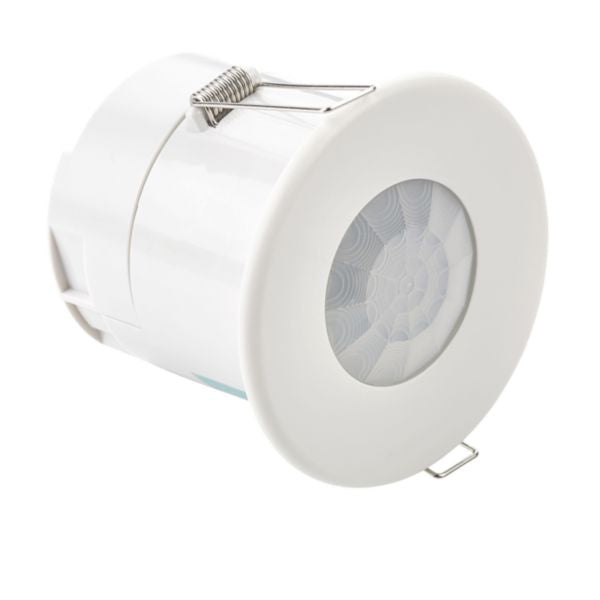

CP Electronics EBDSPIR-DD Recessed Dali PIR

CP Electronics EBDSPIR-DD Recessed Dali PIR

SKU EBDSPIR-DD
£86.02 - £86.02
£86.02 inc VAT £71.68 exc VAT
£86.02 - £86.02
£86.02 inc VAT £71.68 exc VAT inc VAT £71.68 exc VAT
Availability:
40 in stock, ready to be shipped
Datasheet

Estimated delivery time: Next working day

Description

These compact PIR detectors provide automatic control for lighting, heating and ventilation loads. The PIR sensor can be mounted either flush into a ceiling tile or using a surface mounting box.

The low profile design means the unit can be mounted in a narrow ceiling void. No external control boxes are required as the unit is self-contained. The simple plug-in connections reduce installation time. The optional infrared remote handset allows the user to override the set up on some models.

Specification
  • Low profile design
  • Self contained unit
  • Pluggable
  • Switching/Dimming with Lux Level Sensing
  • Programmable via our programming handset
  • Absence detection functionality
  • Suitable for all lighting types
  • Two channel flexibility
  • Range up to 7m at 2.8m mounting height
  • Infrared programmable
  • Programmable via our UHS5 or UNLCDHS infrared handsets
  • User handset available to control on/off, lux levels and preset scenes
  • Flush or surface mounted with DBB accessory
  • Control method - DALI/DSI digital dimming
  • Supply voltage AC - 230 VAC +/- 10%
  • Supply frequency - 50Hz
  • Power consumption parasitic - 807mW
  • Terminal capacity - 2.5mm²
  • Maximum loads:
  • - Incandescent lighting - 10A
  • - Fluorescent lighting - 10A
  • - Compact fluorescent lighting - 10A
  • - LED lighting - 10A
  • - Resistive heaters - 10A
  • Number of drivers/ballasts - Up to 10, or 20 with relay disabled
  • Light detection range - Usable 15-950 Lux
  • Time out range - 10s-99m
  • IP rating - 40
