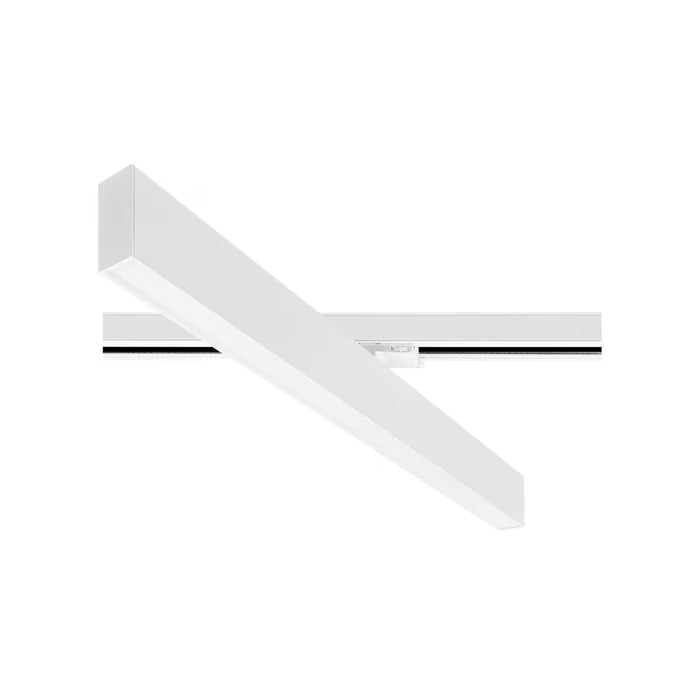

Collingwood TR357NW30 30W 4000K Linear LED Track Light – 3,270 Lumens - White

The Collingwood Linea 1 TR357NW30 is a white 30W linear LED track light with a fixed 4000K cool white output. Designed for compatible three-circuit track, it provides broad, diffuse illumination through a 120° beam, making it useful where the lighting layout needs wider coverage.

Its white aluminium body coordinates with white track and light-coloured ceilings. The slim linear shape suits rows of fittings in shops, showrooms and other dry indoor spaces, while the adjustable mounting allows the direction of the light to be set during installation.

Fixed 4000K light with 3,270 lumens

This exact model delivers a published 3,270 lumens at 30W, giving an efficacy of 109 lm/W. The colour temperature is fixed at 4000K; there is no selector for changing between warm and cool white.

An opal plastic cover diffuses the light across the elongated fitting. Its published CRI above 80 provides a useful colour-rendering specification when comparing fittings for the project.

Adjustable direction with a wide beam

The Linea 1 can be rotated and tilted, with 90° tilt adjustment to help direct light towards the intended area. Its beam remains fixed at 120°: moving the fitting changes where the light falls rather than narrowing or widening its spread.

The published dimensions are 669mm long, 37mm wide and 76mm high, with a weight of 1.15kg. Allow for the fitting’s position when checking clearance around nearby lights, track junctions and other ceiling features.

Optional honeycomb grid for additional glare control

Collingwood lists the TR38805 black honeycomb grid as an optional accessory for this model. It offers an additional glare-control option where viewing angles need particular attention.

The grid is purchased separately and is black, even when fitted to this white luminaire. Separate output figures with the grid installed have not been confirmed, so the standard 3,270-lumen figure should not be promised for that combination.

Non-dimmable operation on compatible track

This version includes a built-in non-dimmable driver and operates from 220–240V AC. Its three-circuit adaptor allows it to be assigned to a selected track circuit, with separate group switching dependent on the wiring and controls.

The IP20, Class I fitting is intended for dry indoor use and requires a correctly earthed compatible track system. Track rails, feeds and installation accessories are purchased separately.
