Collingwood TR22430 Black Left-Hand Power Feed for 3-Circuit Lighting Track

Collingwood TR22430 Black Left-Hand Power Feed for 3-Circuit Lighting Track

SKU TR22430
£11.20 - £11.20
£11.20 inc VAT £9.33 exc VAT
£11.20 - £11.20
£11.20 inc VAT £9.33 exc VAT inc VAT £9.33 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

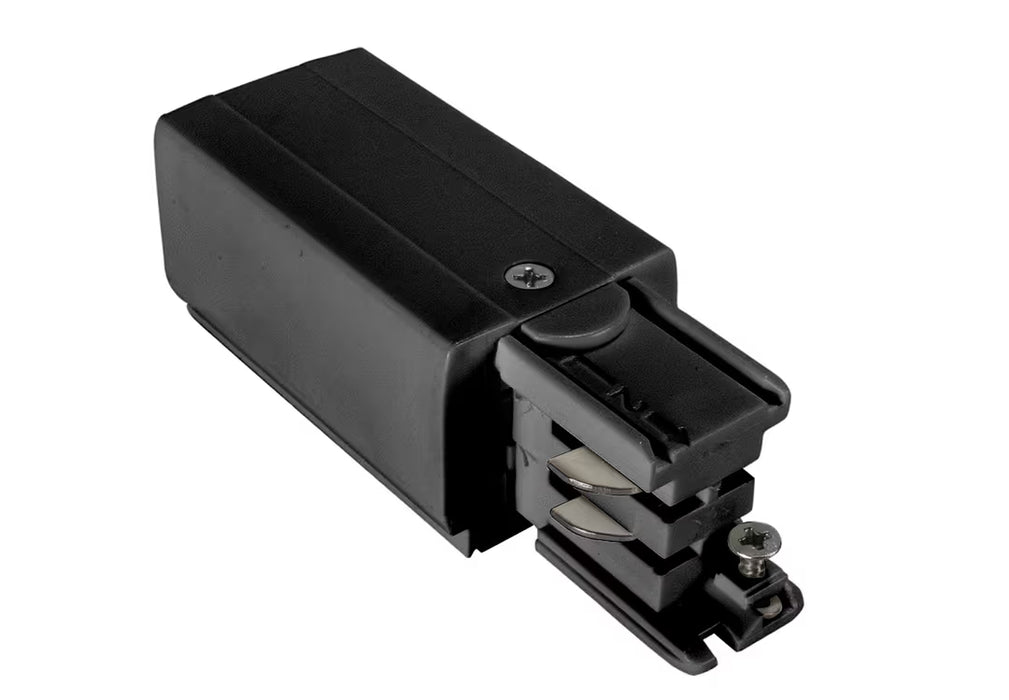

The Collingwood TR22430 is a black left-hand power connector for compatible three-circuit lighting track. It provides the supply connection into the rail where the installation requires this feed orientation.

Its black finish coordinates with black track and accessories in shops, showrooms and other indoor commercial spaces. The aluminium body measures 99mm long, 35mm wide and 36mm high, with a published weight of 0.063kg.

Select the correct handed feed

The left-hand designation is an important part of the specification. Track rails have a defined conductor arrangement, so the connector must match the electrical orientation of the system and the planned layout.

Check the manufacturer’s track and connector diagrams before ordering. The position of the supply cable in the room does not, by itself, establish whether a left-hand or right-hand feed is needed.

The corresponding black right-hand connector is TR22330. For a central supply position, Collingwood offers TR22530, while TR22431 is the white left-hand alternative.

Specification

The Collingwood TR22430 is a black left-hand power-feed connector for compatible three-circuit lighting track. It connects the electrical supply to the rail and must be selected to match the track’s conductor orientation and installation layout. This exact model has an aluminium body measuring 99mm long, 35mm wide and 36mm high, with a published weight of 0.063kg. It is intended for indoor track lighting installations, including retail and commercial interiors. It is a supply-feed accessory rather than a light fitting, joining connector or lighting controller; rails, luminaires and other installation components are purchased separately. The black right-hand alternative is TR22330, the black central-feed version is TR22530 and the white left-hand equivalent is TR22431. Separate group switching and dimming depend on the complete system’s wiring, luminaires and controls. Collingwood lists a five-year warranty, subject to its terms.

FAQ's

What is the Collingwood TR22430?

It is a black left-hand power connector for compatible three-circuit lighting track. It provides the supply connection into the rail.

What does “left-hand” mean?

It identifies the connector’s orientation within the track system. The feed must match the rail’s conductor arrangement and the intended installation layout.

How do I determine whether I need a left-hand or right-hand connector?

Check the manufacturer’s track and connector diagrams. Room position or the direction of the incoming cable alone is insufficient to identify the correct version.

Can I turn it around to replace a right-hand feed?

Do not assume so. Select the connector intended for the required track orientation rather than treating handed versions as interchangeable.

What is the black right-hand alternative?

TR22330 is the black right-hand power connector.

Which model provides a black central feed?

TR22530 is the black central power connector. It is a different component from this left-hand feed.

Is there a white left-hand version?

Yes. TR22431 is the white left-hand power connector.
