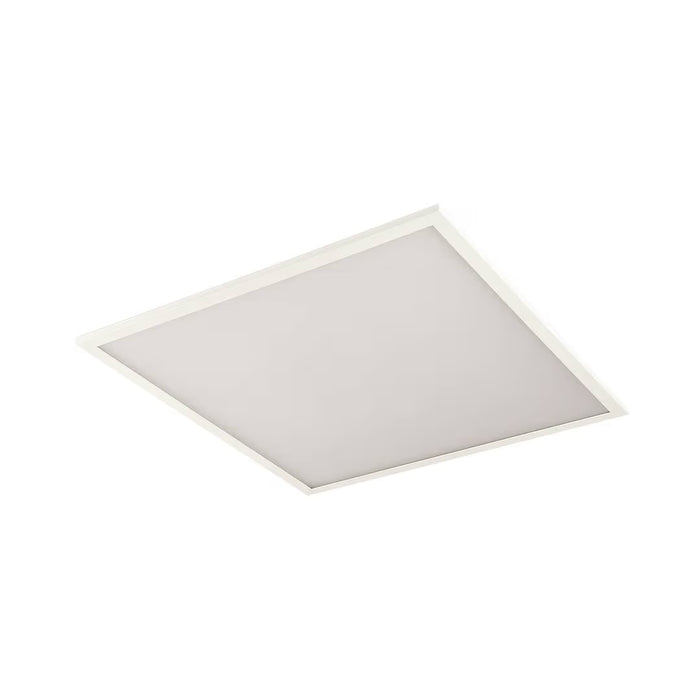

Collingwood Solis Pro SOLP66X4K White 600 × 600 LED Panel – 28W 4000K, 4480 Lumens, UGR19, IP44, Driver Required

Collingwood Solis Pro SOLP66X4K White 600 × 600 LED Panel – 28W 4000K, 4480 Lumens, UGR19, IP44, Driver Required

SKU SOLP66X4K
£36.99 - £36.99
£36.99 inc VAT £30.83 exc VAT
£36.99 - £36.99
£36.99 inc VAT £30.83 exc VAT inc VAT £30.83 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

Collingwood Solis Pro 600 × 600 LED Panel

The Collingwood Solis Pro SOLP66X4K is a white LED ceiling panel for offices, showrooms and retail interiors. It delivers 4480 lumens of 4000K cool white light at its specified 28W operating point, combining useful commercial light output with UGR19 low-glare performance.

This version requires a separately purchased compatible LED driver. It is intended for projects where the installer needs to select the appropriate driver and lighting controls.

Choose the driver to suit your lighting controls

Collingwood specifies the PS6501100MA driver for this model, providing DALI-2, Push-Dim and 0–10V control options. This allows the panel to be incorporated into a suitable dimming installation rather than being limited to a standard on/off arrangement.

Dimming depends on the selected driver and control system. The panel should not be assumed compatible with an ordinary domestic wall dimmer.

Cool white lighting for commercial interiors

The fixed 4000K colour temperature gives a cooler appearance than warm white lighting, making it a practical choice for working environments and customer-facing spaces.

A 90° beam controls the light distribution, while CRI greater than 80 supports everyday colour recognition. For office installations, the final glare level depends on the room layout, panel positions, surface finishes and viewing directions.

Nominal 600 × 600 format, actual 595 × 595mm panel

Although sold as a 600 × 600 ceiling panel, the fitting measures 595 × 595 × 32mm. That distinction matters when checking an existing ceiling grid or planning a replacement.

The panel has an aluminium housing, a white RAL9003 finish and a polystyrene diffuser. Recessed mounting is standard, while the separately purchased P2SMA frame provides a surface-mounting option. A safety cable is included.

IP44 protection and TP(a) diffuser

The Solis Pro carries an IP44 ingress-protection rating and a TP(a) diffuser classification. Collingwood also confirms that it has passed an 850°C glow-wire test.

These material and enclosure ratings help contractors assess the fitting for a project. The TP(a) classification does not give the panel or ceiling a fire-resistance duration.

Key specifications

  • Product code: SOLP66X4K

  • Specified power: 28W

  • Light output: 4480 lumens

  • Colour temperature: Fixed 4000K

  • Finish: White, RAL9003

  • Dimensions: 595 × 595 × 32mm

  • Low-glare classification: UGR19

  • Beam angle: 90°

  • Colour rendering: CRI >80

  • Ingress protection: IP44

  • Driver: Required separately

Emergency lighting and warranty

Emergency operation requires an additional compatible converter; Collingwood lists LEDEP10 as an option.

The manufacturer specifies a five-year product warranty and two-year on-site warranty, subject to its terms. Register within 90 days of purchase for the applicable extended and on-site cover.

Specification

The Collingwood Solis Pro SOLP66X4K is a white LED ceiling panel in the nominal 600 × 600 format, designed for offices, showrooms and retail lighting. Its specified 28W operating point delivers 4480 lumens of fixed 4000K cool white light, with UGR19 low-glare performance, a 90° beam and CRI greater than 80. The actual fitting measures 595 × 595 × 32mm and features an aluminium housing, TP(a) diffuser and IP44 protection. This exact model is supplied without a driver: Collingwood specifies the separately purchased PS6501100MA for DALI-2, Push-Dim and 0–10V control. It differs from SOLP66N4K, the non-dimmable version supplied with a driver and four wattage settings. Recessed mounting is standard; surface mounting and emergency operation require additional compatible accessories.

FAQ's

What is the Collingwood Solis Pro SOLP66X4K?

It is a white commercial LED ceiling panel with a specified 28W operating point, 4480-lumen output and fixed 4000K cool white light. A compatible driver is required separately.

Is an LED driver included?

No. Collingwood’s model-specific information states that the driver is excluded and specifies PS6501100MA as a compatible option.

Is this panel dimmable?

Yes, with the appropriate compatible driver and control system. Collingwood lists DALI-2, Push-Dim and 0–10V options.

Can I connect it to an ordinary wall dimmer?

Do not assume compatibility. Select the driver and dimming controls together; DALI-2, Push-Dim and 0–10V are different control arrangements from a conventional domestic mains dimmer.

Does this exact model have four wattage settings?

Collingwood specifies SOLP66X4K at 28W. The four settings of 22W, 24W, 26W and 28W are listed for SOLP66N4K with its included lumen-output-switch driver.

What is the difference between SOLP66X4K and SOLP66N4K?

SOLP66X4K requires a separate compatible driver and supports dimming with the appropriate configuration. SOLP66N4K includes a non-dimmable driver with four selectable wattage settings.

How bright is SOLP66X4K?

Its specified light output is 4480 lumens at 28W.

Can I change the colour temperature?

No colour-temperature selection is specified. This model produces fixed 4000K cool white light.

Is it actually 600 × 600mm?

The nominal product format is 600 × 600. The actual panel measures 595 × 595 × 32mm, so check the ceiling grid and installation space before ordering.

Is it suitable for offices and retail premises?

Yes. Collingwood specifically identifies offices, showrooms and retail spaces as applications for Solis Pro. The panel quantity and layout should suit the project’s lighting requirements.
