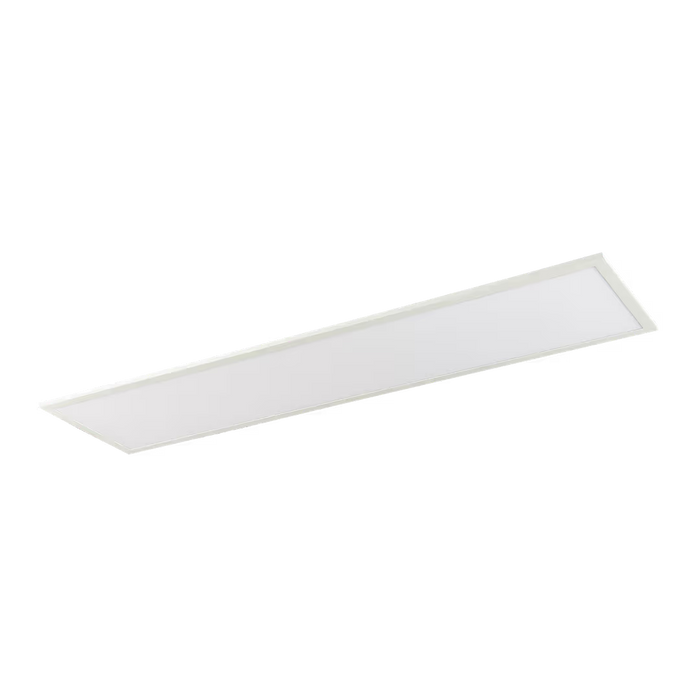

Collingwood Solis P2B16S30WA 1200 × 300mm LED Panel – 30W Cool White

Range - Solis
Product Code - P2B16S30WA
Product Type - Rectangular LED Ceiling Panel
Colour - White, RAL9003
Body Material - Aluminium
Construction - Backlit
Length - 1200mm
Width - 300mm
Depth - 32mm
Wattage - 30W
Light Output - 3450 Lumens
Colour Temperature - Fixed 4000K Cool White
Colour Selectable - No
Beam Angle - 90°
Glare Classification - UGR16
Colour Rendering - CRI >80
Colour Consistency - SDCM4
Efficacy - 115 lm/W
IP Rating - IP40
Input Voltage - 220–240V AC
Electrical Class - Class II
Driver Included - Yes
Dimming - Non-Dimmable, On/Off
Connector - Two-Part First-Fit Connector
Diffuser Classification - TP(a)
Standard Mounting - Recessed
Surface-Mounting Option - P2SMB Kit, Sold Separately
Suspension Option - P1SK Kit, Sold Separately
Safety Cable - 1m Steel Cable Included
Luminaire Insulation Coverage - Rolled and Blown Insulation
Driver Insulation Coverage - Not Permitted
LED Lifetime - L70 50,000 Hours
Sensor Included - No
Emergency Included - No
Emergency Conversion Option - LEDEP10, Sold Separately
Product Warranty - 5 Years, Subject to Manufacturer Terms
On-Site Warranty - 2 Years, Subject to Eligibility and Registration

Is a driver included with P2B16S30WA?

Yes. The manufacturer’s model-specific catalogue table identifies it as the on/off version with a driver included.

Is this exact model dimmable?

It is listed as non-dimmable in the manufacturer’s model-specific datasheet and catalogue tables. The website also displays broader dimming options, so the supplied configuration should be confirmed if dimming is essential.

What is the difference between P2B16S30WA and P2B16X30WA?

P2B16S30WA includes a non-dimmable driver. P2B16X30WA requires a separate driver selected for the intended control method, such as DALI, 0–10V, Push-Dim or TRIAC mains dimming.

How bright is the panel?

The rated output is 3450 lumens at 30W, giving a stated efficacy of 115 lm/W.

Does the product code mean it produces 3000K light?

No. This exact model is specified at fixed 4000K cool white. The 30W figure describes its power consumption.

Is it suitable for offices and classrooms?

Yes. Collingwood specifically identifies office, classroom and meeting-room applications, including reading, writing and computer-based tasks.

Does UGR16 guarantee the completed room’s glare rating?

No. The panel’s low-glare classification does not establish the result for every room. Fitting positions, viewing directions, mounting height and room surfaces affect the installation’s glare performance.

Can I use the website’s 500-lux spacing examples for this panel?

The quoted examples identify P2A-series models rather than P2B16S30WA. Use this model’s own photometric data and the actual room dimensions when calculating spacing and illumination.

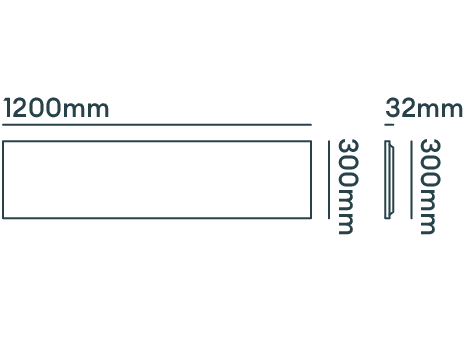

What are its dimensions?

Collingwood’s catalogue lists 1200 × 300 × 32mm. Check the ceiling system, installation clearances and space for the separate driver before ordering.

Can it be fitted without a suspended ceiling grid?

Yes. Collingwood lists the separately purchased P2SMB surface-mounting kit for situations where recessed installation is not suitable.

Can it be suspended?

Yes, using the separately purchased P1SK suspension kit listed for compatible 1200 × 300 panels.

Is a safety cable included?

Yes. The manufacturer specifies a supplied 1m steel safety cable.
