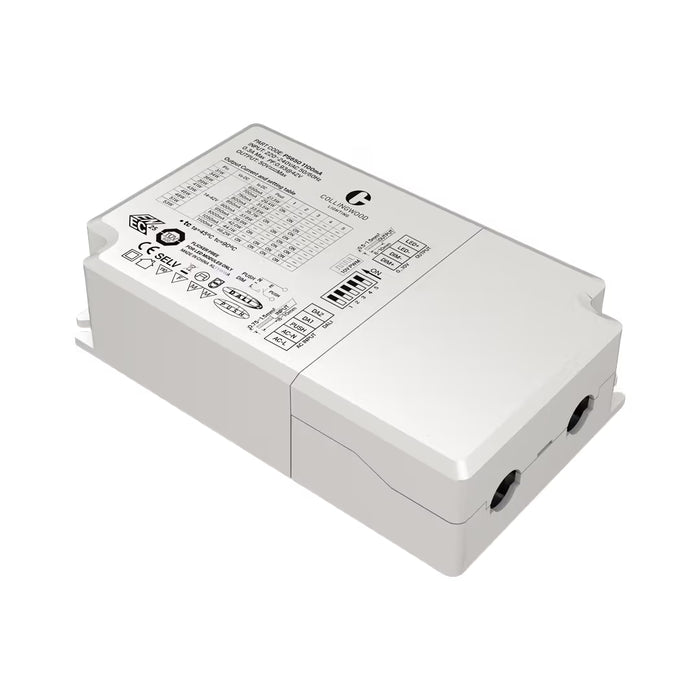

Collingwood PS6501100MA DALI-2 Dimmable LED Panel Driver

Collingwood PS6501100MA DALI-2 Dimmable LED Panel Driver

SKU PS6501100MA
£38.53 - £38.53
£38.53 inc VAT £32.11 exc VAT
£38.53 - £38.53
£38.53 inc VAT £32.11 exc VAT inc VAT £32.11 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

Collingwood LED Panel Driver with DALI-2, 0–10V and Push-Dim Control

The Collingwood PS6501100MA is a dimmable constant-current LED driver for specified compatible Collingwood panel lights. It supplies the electrical output required by the panel and allows its brightness to be controlled through a compatible lighting control system.

With DALI-2, 0–10V and Push-Dim control options, this One4All driver is a useful choice when specifying dimmable panel lighting or sourcing the correct driver for an existing installation. Collingwood lists it for compatible models within its Solis and Domino panel ranges, including the driverless Solis Pro SOLP66X4K.

Choose the Control Method for Your Installation

The driver supports several ways of controlling the connected lighting.

DALI-2 allows it to work within a compatible DALI lighting control installation. 0–10V control provides an analogue dimming option, while Push-Dim offers control through a suitably wired push-button arrangement.

These options give electricians and contractors flexibility when matching the driver to a project’s control requirements. The selected method must be wired and commissioned correctly; compatibility with a standard rotary mains dimmer should not be assumed.

Match the Driver to the Exact Panel

This is a constant-current driver, so the output setting must match the LED panel’s specified operating current. The panel’s voltage requirements, power demand and connector arrangement also need to match.

For replacement work, checking the original driver label and the exact panel code is more reliable than choosing a driver by wattage alone. Two panel lights with similar wattages can require different electrical outputs.

The PS6501100MA is intended for manufacturer-specified compatible LED fittings. It should not be treated as a general-purpose 12V or 24V power supply for LED strip.

FAQ's

What is the Collingwood PS6501100MA?

It is a dimmable constant-current LED driver for specified compatible Collingwood panel lights. It powers the LED panel and provides compatible lighting-control options.

Which dimming methods does it support?

Collingwood lists DALI-2, 0–10V and Push-Dim control. Some accessory descriptions use “1–10V”, so confirm the required analogue control characteristics before specifying that arrangement.

Is it compatible with Solis Pro SOLP66X4K?

Yes. Collingwood’s Solis Pro documentation identifies PS6501100MA as a driver option for SOLP66X4K. Follow the panel and driver instructions for the correct connection and output setting.

Can it replace any LED panel driver?

No. The panel’s required current, operating voltage, power demand and connector arrangement must match. Similar panel wattages do not establish compatibility.

Is this a constant-current or constant-voltage driver?

It is a constant-current driver. It regulates the current supplied to a compatible LED load and is not interchangeable with a general-purpose constant-voltage supply.

Can I use it for 12V or 24V LED strip?

Do not specify it for strip that requires a 12V or 24V constant-voltage supply. This driver is intended for compatible constant-current LED loads.

What output current does it provide?

The electrical characteristics table states 650–1100mA. However, manufacturer feature text states 250–1100mA in 50mA steps. Confirm the supported settings against the supplied unit before installation.

Is it a 40W or 46W driver?

Collingwood’s electrical table and driver comparison guide list 46W output, while the product description says 40W. The applicable load rating needs confirmation against the supplied driver and manufacturer guidance.

What output voltage is published?

The manufacturer’s electrical data lists a 14–42V DC output range. The connected LED load must operate within the permitted voltage range at its required current setting.

Will it work with a standard rotary mains dimmer?

The published control methods are DALI-2, analogue control and Push-Dim. Do not assume compatibility with leading-edge or trailing-edge rotary dimmers.

How low can it dim?

Collingwood’s feature text quotes a 1–100% DALI dimming range and a 1.5–100% Push-Dim range. Performance should be checked with the specified panel and control arrangement.

Can the driver be covered with insulation?

No. Collingwood explicitly lists the driver as not insulation coverable.

Is it suitable for outdoor installation?

It is IP20 rated and requires a suitable dry indoor installation location. It should not be exposed to rain or water.

What size is it, and what cable sizes are specified?

The housing measures 125mm long × 76mm wide × 30mm high. Published cable sizes are 0.75–1.5mm² for the input and 0.5–1.5mm² for the output.

Does it provide emergency lighting?

It is listed as a dimming driver. Collingwood identifies separate emergency converters for compatible panels; this driver alone should not be specified as an emergency conversion.

What protection and warranty are listed?

The manufacturer lists overvoltage, short-circuit and thermal protection, together with a five-year warranty subject to its terms.
