Collingwood P2C19S60WA Solis 1200x600 LED Panel 60W
Estimated delivery time: Estimated delivery tomorrow*
Description

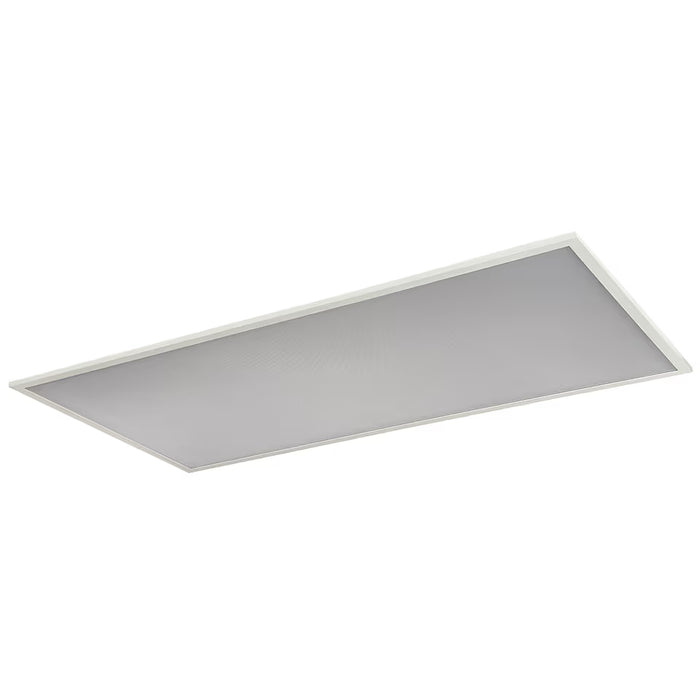

The Collingwood Solis P2C19S60WA is a white 1200 × 600mm LED panel designed for offices, classrooms and meeting rooms. It delivers 6,600 lumens from 60W, providing a substantial light output for commercial lighting installations and refurbishment projects.
Its fixed 4000K cool white light suits working environments where people read, write and use computers. The rectangular format is useful when specifying larger ceiling panels, while the white frame provides a straightforward finish that works with typical commercial ceiling interiors.
UGR19 glare control for working spaces
This Solis panel has a published UGR19 glare rating, with a 90° beam angle. It is designed with visual comfort in mind, making it a useful option for spaces occupied throughout the working day.
For electricians and project specifiers, the panel combines a defined light output with low-glare optics. The number and spacing of fittings should still be selected through a lighting design appropriate to the room, rather than assuming the same layout will suit every installation.
Fixed 4000K output with a slim panel body
This exact model has a single 4000K colour temperature. There is no colour-temperature selection switch to choose between warm white and cool white settings.
The panel measures 1200 × 600 × 32mm, with an aluminium body and a white RAL 9003 finish. Its back-lit construction places the LEDs behind the illuminated surface, and Collingwood specifies an efficacy of 110 lumens per watt.
Supplied with an LED driver and quick-fit connector
The LED driver is included with this version. A two-part first-fit connector helps with installation, and the panel is supplied with a 1m steel safety cable.
The standard mounting arrangement is recessed. Where a surface installation is required, Collingwood lists the P2SMC surface mounting kit as a separate accessory. Check the ceiling arrangement and available space for both the panel and driver before ordering.
With an IP40 rating, this is an indoor panel rather than a weatherproof fitting.
Emergency conversion available separately
The standard panel can be converted using the compatible LEDEP10 emergency converter, purchased separately. This allows the emergency lighting provision to be specified as part of the project; the panel itself should not be ordered on the assumption that a battery pack is included.
Collingwood lists a 50,000-hour L70 LED lifetime, a five-year product warranty and two-year on-site warranty support, subject to its terms and registration requirements.
