Collingwood Indy K3 CSP IFLB1NSCSP Black 50–100W LED Floodlight
Estimated delivery time: Estimated delivery tomorrow*
Description
Adjustable outdoor lighting for commercial premises

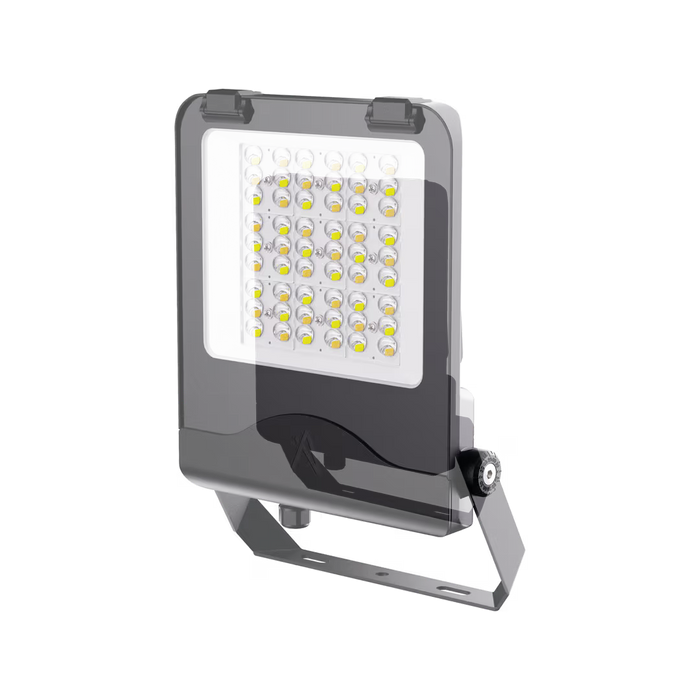

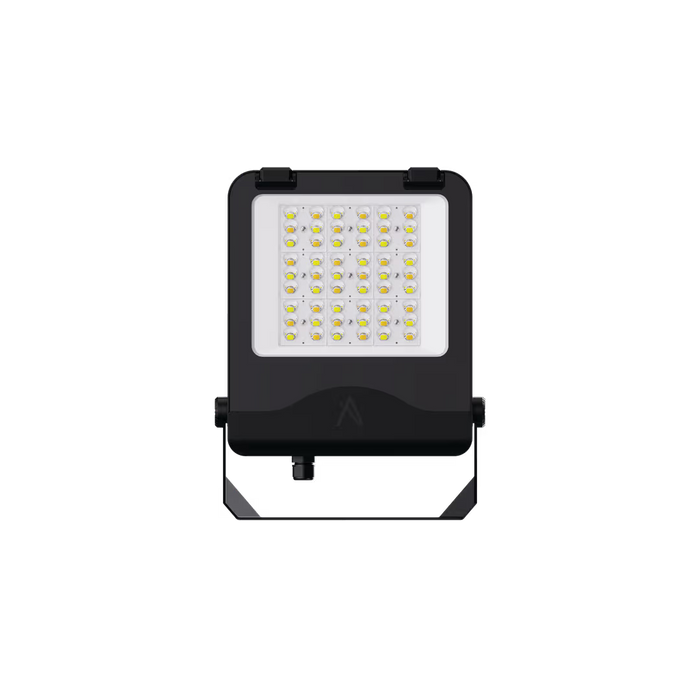

The Collingwood Indy K3 CSP IFLB1NSCSP is a black LED floodlight with selectable 50W, 80W and 100W power settings. It provides broad outdoor illumination for commercial yards, building exteriors, access areas and similar installations where the output needs to suit the site.
Its 110° symmetrical beam spreads light around the centre of the fitting’s aiming direction. This is the symmetrical version of the Indy K3 CSP, rather than the separate asymmetric model.
Choose the power and light colour during installation
Two independent selections let the installer configure the fitting: power determines the available output, while colour temperature changes the appearance of the light.
Choose 3000K warm white, 4000K cool white or 5000K cool white. The current manufacturer photometric table gives the following outputs:
| Power setting | 3000K | 4000K | 5000K |
|---|---|---|---|
| 50W | 8,150 lumens | 8,750 lumens | 8,900 lumens |
| 80W | 12,200 lumens | 13,300 lumens | 13,300 lumens |
| 100W | 14,600 lumens | 16,000 lumens | 15,800 lumens |
The maximum published output for this exact model is 16,000 lumens at 100W and 4000K. These choices help with matching the installation to its surroundings without ordering separate fixed-colour fittings.
The power selector provides three operating settings. It does not make the floodlight continuously dimmable.
Outdoor construction with IP66 protection
The aluminium housing has a black RAL 9005 finish, IP66 protection and an IK08 impact rating. Collingwood also identifies the fitting as suitable for coastal applications.
An integrated breather valve helps reduce moisture build-up inside the housing. The fitting includes 6kV surge protection against voltage spikes, providing an additional protection feature within the luminaire.
Removable bracket for installation and aiming

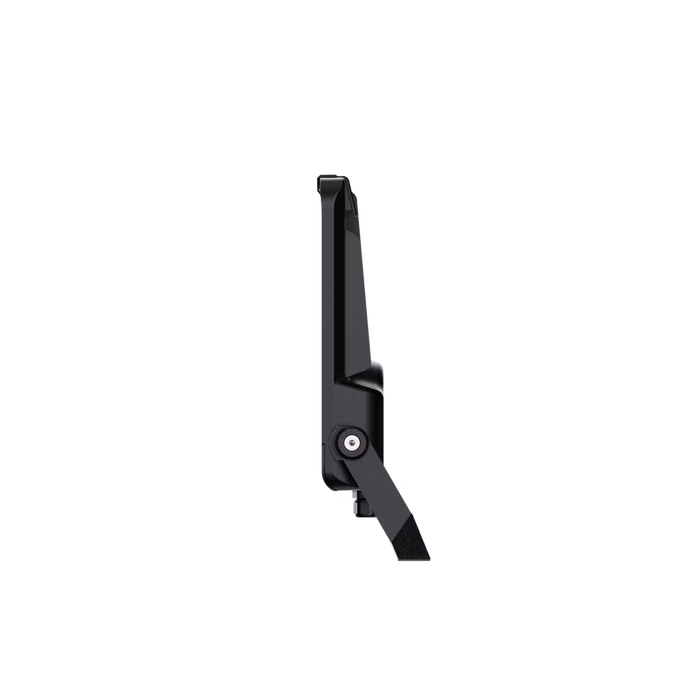

The mounting bracket can be removed during installation, helping the electrician secure it before positioning the floodlight. An angle indicator assists with setting the aiming direction consistently across multiple fittings.
The fitting measures 405mm high × 293mm wide × 65mm deep. It connects to a 220–240V AC supply, includes its LED driver and is supplied with a flying lead.
Position and aim the light to cover the required area while limiting spill towards neighbouring windows, roads and adjoining properties. Fitting quantities and spacing should follow the site’s lighting requirements rather than wattage alone.
Standard switched operation
This exact model is non-dimmable and does not include a PIR sensor, photocell or emergency backup. Additional switching or automatic controls need to be specified separately.
Collingwood publishes an L70 50,000-hour LED lifetime, five-year product warranty and two-year on-site cover, subject to the applicable terms and registration requirements.
