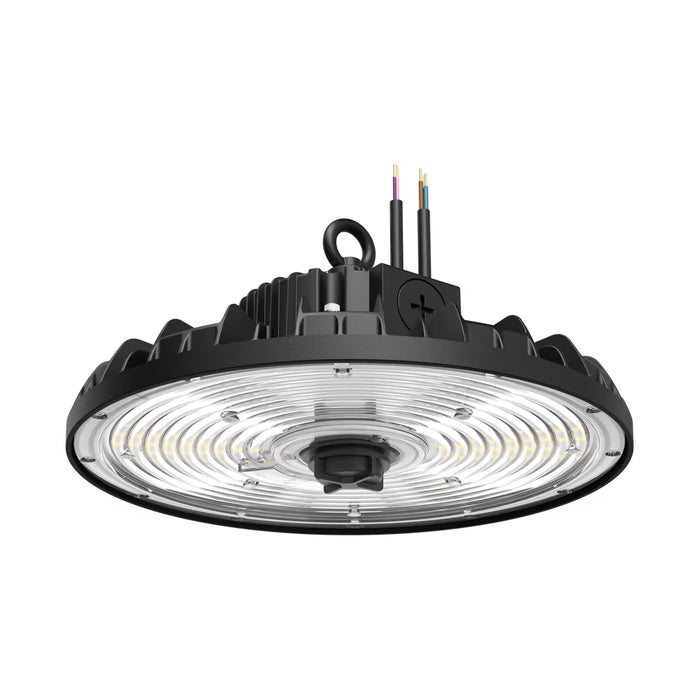

Collingwood HBAS2V40 150–200W LED High Bay - Black
Estimated delivery time: Estimated delivery tomorrow*
Description
Adjustable LED high bay lighting for commercial and industrial spaces
The Collingwood Flex Bay HBAS2V40 is a black LED high bay with three selectable power settings: 150W, 175W and 200W. Designed for indoor commercial and industrial lighting, it gives installers a choice of light outputs within one fitting, making it useful for warehouse, workshop and factory lighting projects.
Its fixed 4000K cool white light provides a neutral appearance for working environments. A 90° beam distributes the light below the fitting, with positioning and spacing selected to suit the building, working areas and required illumination.
Three power settings with up to 30,000 lumens
The selected wattage determines the panel’s light output:
-
150W - 22,500 lumens
-
175W - 26,300 lumens
-
200W - 30,000 lumens
This flexibility allows the installer to select an appropriate output during installation. It also makes ordering more straightforward where different areas of a project require different lighting levels.
Collingwood rates the fitting at 150 lumens per watt. The wattage selector sets the operating power, while the separate 0–10V dimming interface allows compatible controls to adjust brightness.
Optional motion and daylight controls
The Flex Bay includes a central twist-and-lock Zhaga sensor interface for compatible plug-in accessories. Sensors are purchased separately, allowing the control arrangement to be chosen around how the space is used.
Options include PIR motion sensing, microwave sensing, daylight control and compatible wireless modules. For example, the optional HBPIRDLD PIR and daylight harvesting sensor can respond to occupancy and adjust lighting as natural daylight changes.
The standard fitting does not include a motion sensor or wireless control module.
Durable housing and practical installation features
An ADC12 aluminium alloy body, black RAL 9005 finish, IP65 protection and IK08 impact rating suit demanding indoor working environments. The fitting measures 297mm in diameter and 167mm high, with a published weight of 2.15kg.
It comes pre-wired with a 1m H05RN-F 3 × 1.0mm² cable. Collingwood lists jack chain, M10 drop rod and catenary wire suspension options, allowing the mounting arrangement to suit the building structure.
The included driver is removable for maintenance, and the specified operating temperature range is −20°C to +50°C.
Standard non-emergency version
HBAS2V40 is the standard version without emergency operation. Where emergency lighting is required, specify the appropriate emergency variant or approved conversion equipment as part of the lighting design.
The published LED lifetime is 50,000 hours. Collingwood lists five-year product warranty cover and two-year on-site support, subject to its conditions and registration requirements.
