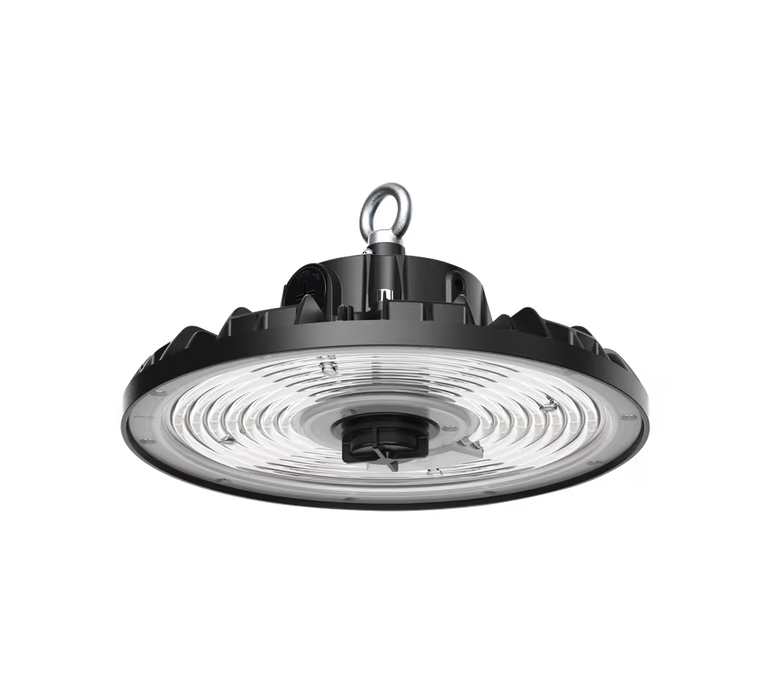

Collingwood HBAS1V40EMS 100W/125W/150W Selectable, 4000K, 22,500 Lumens, IP65, 0–10V Dimmable - Black Emergency LED High Bay

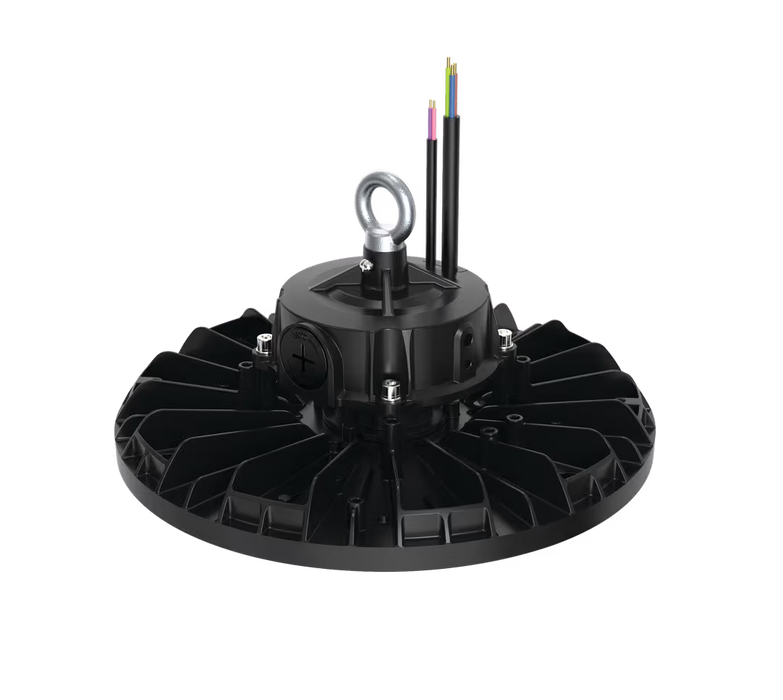

The Collingwood Flex Bay HBAS1V40EMS is a black emergency LED high bay for industrial and commercial buildings, including warehouse and workshop lighting schemes. It offers three selectable normal operating settings: 100W producing 15,000 lumens, 125W producing 18,800 lumens and 150W producing 22,500 lumens. All settings use fixed 4000K cool white light with a 90° beam. This exact model is the emergency version, with selectable manual-test or self-test operation; its normal lumen figures are separate from emergency output. It features 0–10V dimming, IP65 protection, IK08 impact resistance, an ADC12 aluminium housing and a removable driver. A central Zhaga interface supports separately purchased occupancy, daylight and wireless controls. The fitting is pre-wired with a 1m H05RN-F 3 × 1.0mm² lead and supports jack chain, M10 drop rod or catenary wire suspension.

What is the difference between wattage selection and 0–10V dimming?

Wattage selection sets the fitting’s normal operating output: 100W/15,000 lumens, 125W/18,800 lumens or 150W/22,500 lumens. The 0–10V interface provides a separate means of controlling brightness through compatible lighting controls. Selecting a lower wattage does not change the fixed 4000K colour temperature.

Does 0–10V dimming mean the fitting switches off at 0V?

Not necessarily. The published information does not confirm the minimum dimming level or whether the driver supports dim-to-off. Confirm the driver’s control behaviour before designing a system that relies on the control signal to switch the light off completely.

Is the main LED driver DALI-2 addressable?

The exact model listing specifies 0–10V dimming for the main light source. DALI-2 appears among the emergency options, which does not establish DALI-2 control of the main driver. Treat normal-lighting control and emergency testing as separate specification requirements.

How many fittings can one 0–10V controller operate?

Collingwood’s reviewed product information does not give an approved maximum. The limit depends on the controller’s capacity and the driver’s control-interface characteristics. Obtain the relevant driver data and controller instructions before grouping fittings on one control circuit.

Does the supplied three-core cable provide the complete control wiring arrangement?

The stated 1m H05RN-F 3 × 1.0mm² flying lead describes the supplied mains lead. It does not establish the termination arrangement for wired dimming or emergency connections. Use the wiring diagram supplied with the exact luminaire and emergency equipment when planning cables and connections.

Which optional sensor provides occupancy detection and daylight harvesting?

Collingwood lists HBPIRDLD for Flex Bay. It combines PIR occupancy detection with daylight harvesting, allowing the fitting to respond to movement and changes in available natural light. The sensor is an additional accessory rather than an included feature of HBAS1V40EMS.

What is the difference between a daylight threshold and daylight harvesting?

A daylight threshold determines whether the lighting should operate according to the available light level. Daylight harvesting adjusts the light output as natural daylight changes. HBPIRDLD supports both functions, so commissioning should reflect the intended room behaviour.

What installation height is specified for HBPIRDLD?

Collingwood gives a typical installation height of 8–12m for this optional sensor. That figure relates to the sensor’s application; it is not a universal mounting-height recommendation for the high bay. Check detection coverage and the lighting design separately.

Can the occupancy sensor maintain background lighting when an area becomes vacant?

Yes. HBPIRDLD provides selectable standby dimming levels of 10%, 20%, 30% or 50%, together with adjustable standby periods. This allows background illumination to be configured instead of immediately switching the normal lighting off, subject to the selected settings.

How is the PIR and daylight-harvesting sensor commissioned?

Collingwood specifies the UNREMOTEMWS remote controller for commissioning HBPIRDLD. Adjustable parameters include hold time, standby level, standby period and daylight threshold. Check the actual settings during commissioning rather than relying on factory defaults.

Can Flex Bay be incorporated into a Casambi wireless lighting scheme?

Yes, using compatible optional accessories. Collingwood lists CASZHAGASB and CASZHAGAMB within the Flex Bay accessory options. These provide a route to Casambi wireless control; the standard fitting should not be described as having built-in Casambi connectivity without the required module.

How many HBAS1V40EMS fittings can be installed on one MCB?

An approved maximum has not been established from the reviewed documents. Steady-state wattage alone is insufficient to determine the quantity because driver inrush, protective-device characteristics and the complete circuit design also matter. Obtain confirmed driver and circuit-loading information before specifying a maximum.

Can the normal lumen figures be used for emergency lighting calculations?

No. The 15,000–22,500-lumen figures describe normal mains-powered operation. Emergency calculations require the emergency output and photometric data for the equipment actually supplied, assessed at the proposed mounting height and layout.

Does self-test provide central emergency-lighting monitoring?

Self-test and central monitoring are different functions. Selecting local self-test operation does not establish communication with a building’s monitoring system. Where DALI emergency monitoring is required, confirm the exact emergency converter and system compatibility before ordering.

What does the L80 50,000-hour rating mean?

L80 describes lumen maintenance: the stated lifetime corresponds to 80% of the initial LED light output under the specified conditions. It is not a promise that every component will operate without failure for 50,000 hours, and it is separate from the warranty.

What does SDCM5 indicate?

SDCM describes variation in light colour between LEDs. Collingwood lists SDCM5 for Flex Bay. This is useful when assessing colour consistency across an
