Collingwood HBA1D 100W DALI-2 Dimmable LED High Bay - 4000K, 16,000 Lumens, IP65, 110° Beam

Collingwood HBA1D 100W DALI-2 Dimmable LED High Bay - 4000K, 16,000 Lumens, IP65, 110° Beam

SKU HBA1D
£84.50 - £84.50
£84.50 inc VAT £70.42 exc VAT
£84.50 - £84.50
£84.50 inc VAT £70.42 exc VAT inc VAT £70.42 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

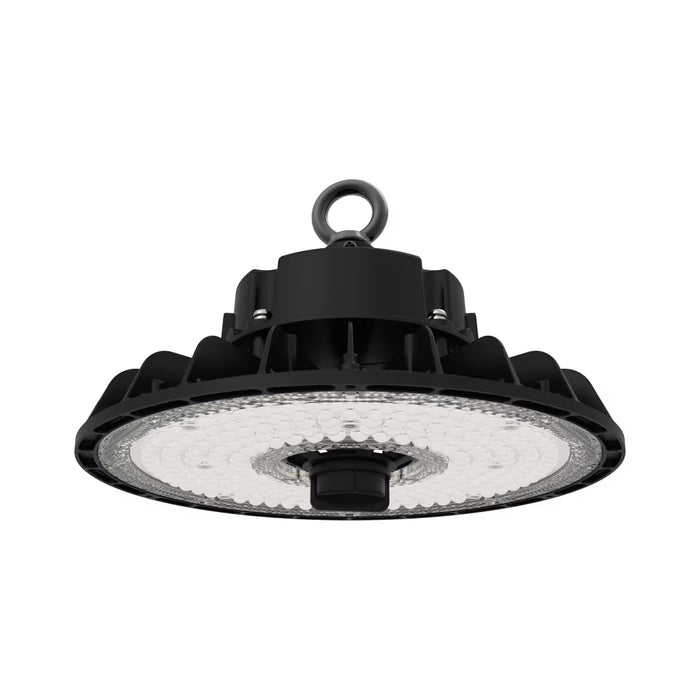

Collingwood Area Bay 100W DALI-2 LED High Bay

The Collingwood Area Bay HBA1D is a matt black LED high bay for commercial and industrial ceiling-lighting projects. It delivers 16,000 lumens of fixed 4000K cool white light from a 100W fitting, with DALI-2 dimming for integration into a compatible lighting-control system.

For warehouse refurbishments, workshops and other high-ceiling spaces, it gives contractors a defined combination of output, beam distribution and digital control. Fitting quantities and positions should be selected to suit the room layout and required illumination.

DALI-2 control for a planned lighting scheme

This is the DALI-2 model in the 100W Area Bay range. Within a suitable commissioned system, DALI enables individual fittings or groups to respond to lighting commands, making it useful where different areas need separate control.

The HBA1D should be selected specifically for a DALI installation. The HBA1V uses 0–10V control, which is a different interface.

16,000 lumens with controlled light distribution

The 100W output delivers a stated efficacy of 160 lm/W. Dedicated lenses over the LEDs control the light distribution, producing a broad 110° beam.

The fixed 4000K colour temperature provides cool white illumination, while CRI greater than 80 supports everyday colour recognition. This model has a specified 100W rating; selectable wattage and adjustable colour temperature are not listed features.

Durable housing and accessible driver

The fitting has an ADC12 aluminium-alloy housing finished in matt black RAL9017, with a polycarbonate front lens. Its IP65 enclosure provides dust protection and resistance to water jets.

A removable driver assists maintenance, allowing an electrician to access the driver without treating the entire fitting as a sealed, disposable unit.

Installation details

Collingwood specifies a 220–240V AC supply and Class I construction, requiring a protective earth connection.

The fitting is pre-wired with a 1.5m H05RN-F 3 × 1.0mm² flying lead. Manufacturer mounting information includes jack chain, bracket and rod arrangements, with suitable mounting accessories selected for the installation.

Key specifications

  • Product code: HBA1D

  • Range: Area Bay 100W

  • Power: 100W

  • Light output: 16,000 lumens

  • Efficacy: 160 lm/W

  • Colour temperature: Fixed 4000K

  • Control interface: DALI-2

  • Beam angle: 110°

  • Colour rendering: CRI >80

  • Finish: Matt black, RAL9017

  • Ingress protection: IP65

  • Electrical class: Class I

  • LED lifetime: L80 54,000 hours

  • Emergency function: Not included

  • Sensor: Not included

Specification


The Collingwood Area Bay HBA1D is a 100W DALI-2 dimmable LED high bay for commercial and industrial lighting installations. It produces 16,000 lumens of fixed 4000K cool white light with a 110° beam and stated efficacy of 160 lm/W. Its matt black RAL9017 aluminium-alloy housing has IP65 protection, while dedicated LED lenses control the light distribution. This exact model is intended for a compatible DALI lighting-control system and differs from HBA1V, which uses 0–10V dimming. HBA1D includes neither a sensor nor emergency operation. It operates from 220–240V AC, has Class I construction requiring an earth connection, and is pre-wired with a 1.5m H05RN-F 3 × 1.0mm² lead. A removable driver supports maintenance, and the manufacturer specifies an LED lifetime of L80 54,000 hours.
