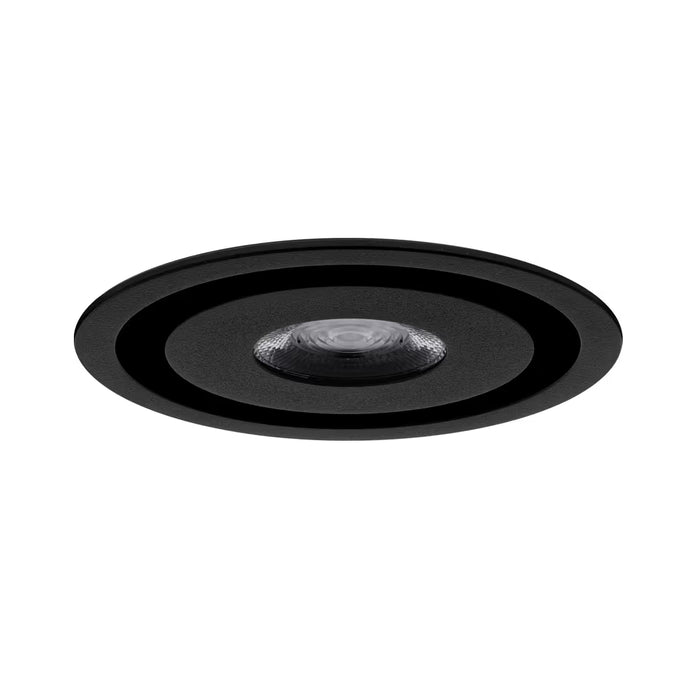

Range - Ally 3 RDX
Product Code - DO529WW05
Product Type - Adjustable Recessed LED Spotlight
Colour - Black
Material - Aluminium
Wattage - 10W
Colour Temperature - 3000K Warm White
Beam Angle - 38°
Tilt Adjustment - 45°
Rotation - 355°
Cut-Out Diameter - 105mm
Overall Diameter - 110mm
IP Rating - IP20
IK Rating - IK02
Input Voltage - 220–240V AC
Mounting - Recessed Ceiling, Spring Fixings
LED Lifetime - L80 50,000 Hours
Colour Consistency - SDCM3
Insulation Coverable - No
Fire Rated - No
Emergency - No
DALI Option - CD123 Converter, Sold Separately
Warranty - 5 Years, Subject to Manufacturer Terms
FAQ's
What is the difference between DO529WW05 and DO529WW30?
DO529WW05 is black; DO529WW30 is white. Collingwood lists the same 10W power, 3000K colour temperature, 38° beam and 105mm cut-out for both versions.

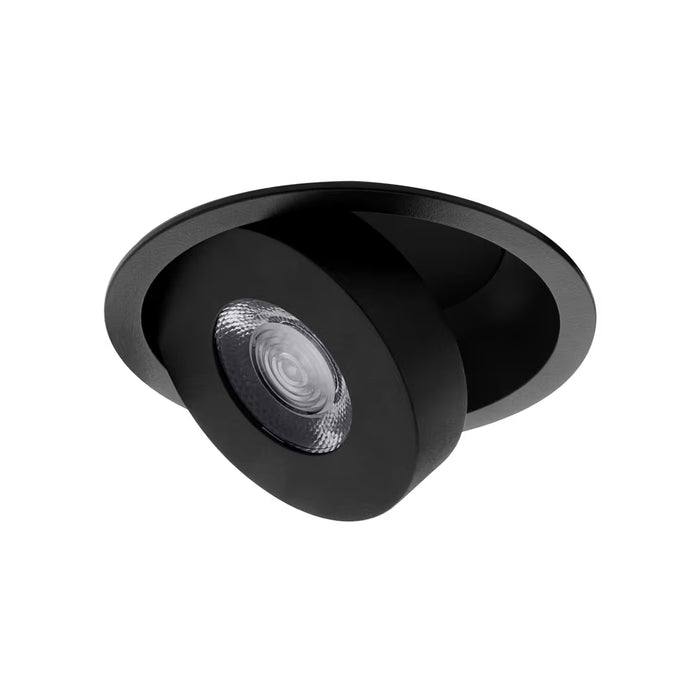

How far can the spotlight be adjusted?
The manufacturer specifies 45° tilt and 355° rotation. Rotation is therefore almost a full turn, rather than unrestricted continuous rotation.
Does adjusting the head change the beam angle?
No. Adjustment changes the direction in which the light points. The specified optical beam remains 38°.
What ceiling hole does it require?
The required cut-out is 105mm in diameter. The 110mm measurement is the overall fitting diameter and should not be used as the hole size.
Does the cut-out measurement establish the required ceiling-void depth?
No. The installation must also accommodate the fitting, its movement, driver and any required clearances. Do not treat the face diameter or cut-out as a recess-depth specification.

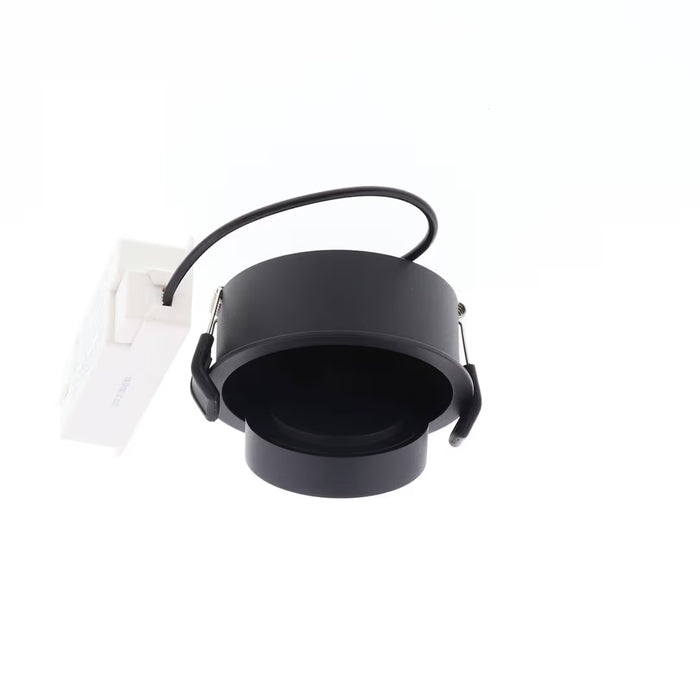

Is a driver supplied?
Collingwood’s current description states that a remote dimmable converter is supplied. Its older specification sheet describes an integrated driver, so confirm the supplied arrangement if driver position or access is critical to the installation.
Is it compatible with leading-edge and trailing-edge dimmers?
Collingwood’s current description states compatibility with both types. The chosen dimmer must still suit the supplied driver and connected load; the published information does not establish compatibility with every dimmer.
Is DALI control included as standard?
The manufacturer lists the CD123 DALI-PUSH converter as a separately ordered option. Do not assume that the standard supplied converter provides DALI control.
Can I specify a minimum dimming percentage?
The reviewed information does not give a verified minimum dimming level. Confirm the selected driver and dimmer combination before specifying a particular low-light performance.
