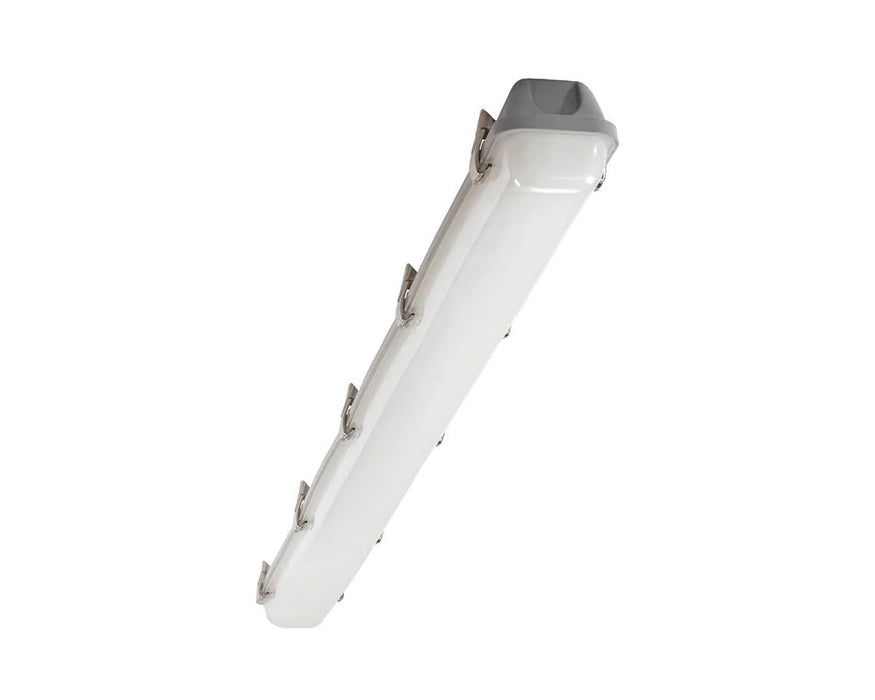

The Collingwood Caiman CSP 4ft Single is a robust 20W anti-corrosive LED batten designed for demanding commercial and industrial environments. Its switchable colour temperature allows electricians to select 3000K warm white, 4000K cool white or 6500K daylight during installation.
IP65 protection helps prevent dust and water ingress, while the IK08-rated polycarbonate housing provides reliable impact resistance. Corrosion-resistant 304 stainless steel clips and anti-tamper screws make it a durable choice for workshops, warehouses, garages, plant rooms and covered service areas.
Extended mounting sliders simplify refurbishment projects, while the safety tethered gear tray and included compression cable gland help make installation faster. Emergency versions and optional BESA and coastal protection kits are also available.
Key Features
Product code: AC4SN
4ft single LED anti-corrosive batten
20W power consumption
2300–2600 lumen output
Switchable 3000K, 4000K and 6500K CCT
IP65 dust and water protection
IK08 impact resistance
CRI greater than 80
Wide 120° beam angle
Grey polycarbonate construction
Corrosion-resistant 304 stainless steel clips
Extended mounting sliders
Safety tether cable for easier installation
Emergency option available
Dimensions: 1245mm long × 51mm wide
Specification
The Collingwood AC4SN Caiman CSP is a 4ft, 20W anti-corrosive LED batten with selectable 3000K, 4000K and 6500K colour temperatures. It provides up to 2600 lumens and features IP65 dust and water protection, IK08 impact resistance and stainless steel clips, making it suitable for demanding commercial and industrial installations.
FAQ's
What is the output of the Collingwood AC4SN?
The AC4SN uses 20W and produces between 2300 and 2600 lumens, depending on the selected colour temperature.
Which colour temperatures can be selected?
Electricians can select 3000K warm white, 4000K cool white or 6500K daylight, allowing one fitting to suit different installation requirements.
When should the CCT setting be selected?
Select the required colour temperature during installation and before energising the circuit. Always isolate the supply before changing the setting.
Is the AC4SN suitable for dusty or damp environments?
Yes. Its IP65 rating provides complete protection against dust and protection from water jets, making it suitable for workshops, warehouses, garages and other demanding locations. It is not designed for submersion.
How resistant is the fitting to accidental impact?
The luminaire is IK08 rated and manufactured with a durable polycarbonate body. It also has anti-tamper screws and corrosion-resistant 304 stainless steel clips.
Can it replace an existing 4ft fluorescent fitting?
Yes. Its 1245mm length and extended mounting sliders make it suitable for many 4ft batten replacement projects. Existing fixing positions and cable entries should still be checked before installation.
