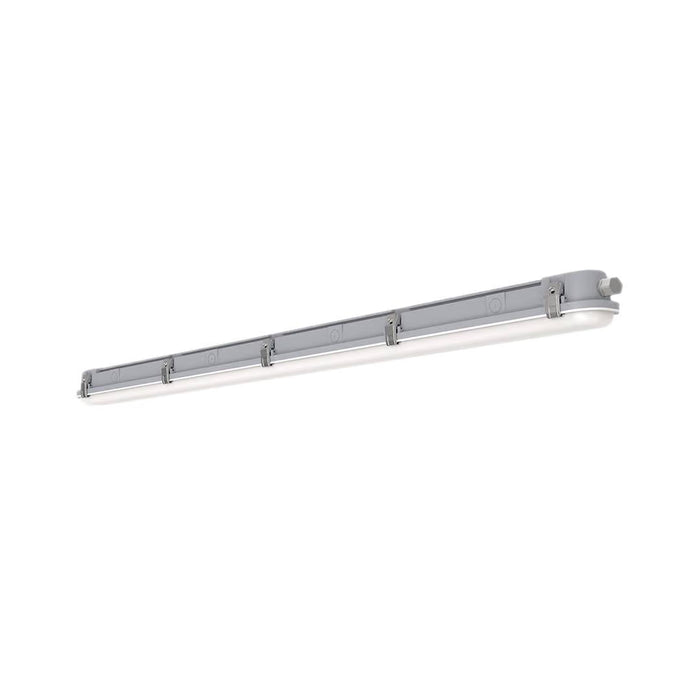

Collingwood AC4TWN Caiman Quick Connect 4ft 18-37W CCT IP66 LED Batten

Collingwood AC4TWN Caiman Quick Connect 4ft 18-37W CCT IP66 LED Batten

SKU AC4TWN
£37.20 - £37.20
£37.20 inc VAT £31.00 exc VAT
£37.20 - £37.20
£37.20 inc VAT £31.00 exc VAT inc VAT £31.00 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

The Collingwood AC4TWN Caiman Quick Connect is a versatile 4ft LED batten designed to make commercial, industrial and outdoor lighting installations quicker and easier. Its quick-connect, through-wired design allows electricians to use the side cable entry without opening the luminaire, helping reduce installation time across larger projects.

Wattage can be selected between 18W and 37W, providing an output of approximately 2590 to 5500 lumens. Installers can also choose between 3000K warm white, 4000K cool white and 5700K daylight, allowing the light output and colour temperature to be matched to each application.

The IP66-rated polycarbonate construction provides excellent protection against dust and powerful water jets. A wide 120° beam angle delivers broad, even illumination across workshops, warehouses, car parks, loading areas and industrial buildings.

A full-length mounting slider provides greater freedom when positioning the fixing points. Rear and side conduit entries, clearly marked drilling positions and compression glands at both ends further simplify installation. The fitting is also compatible with the optional Collingwood ACKITMWS microwave sensor kit, which must be factory assembled by Collingwood. collingwoodlighting.com

Key Features

  • Product code: AC4TWN
  • 4ft quick-connect LED batten
  • Switchable 18W or 37W output
  • Produces approximately 2590–5500 lumens
  • Selectable 3000K, 4000K or 5700K CCT
  • IP66 rated for indoor and external applications
  • IK10 impact resistance
  • CRI greater than 80
  • Wide 120° beam angle
  • Through-wired side cable entry
  • No need to open the luminaire for side-entry connection
  • Full-length adjustable mounting slider
  • Rear and side conduit entry points
  • External markings assist accurate pre-drilling
  • Supplied with mounting clips and hanging bracket
  • Compression glands supplied at both ends
  • Optional ACBESA mounting accessory
  • Optional factory-fitted microwave sensor kit
  • Grey polycarbonate construction
  • Non-dimmable
  • No emergency function
  • Length: 1200mm
  • Width: 95mm
Specification

The Collingwood AC4TWN is a 4ft IP66 LED batten with selectable 18W or 37W output and 3000K, 4000K or 5700K colour temperature. It produces up to 5500 lumens and features a quick-connect, through-wired side entry that allows electricians to connect the supply without opening the luminaire. It is suitable for commercial, industrial and external lighting installations requiring a durable, high-output fitting.

FAQ's

Can the AC4TWN be installed outside?

Yes. The fitting is IP66 rated and Collingwood identifies it as suitable for external use. It should still be installed according to the manufacturer’s instructions and relevant wiring regulations.

How bright is the AC4TWN?

The light output ranges from approximately 2590 to 5500 lumens, depending on the selected wattage and colour temperature.

Can I change the light colour?

Yes. The installer can select 3000K warm white, 4000K cool white or 5700K daylight.

Does it include a motion sensor?

No sensor is included with the standard AC4TWN. The optional ACKITMWS microwave sensor kit is available but must be assembled by Collingwood Production.

Is this fitting dimmable?

No. The AC4TWN is listed as non-dimmable.
