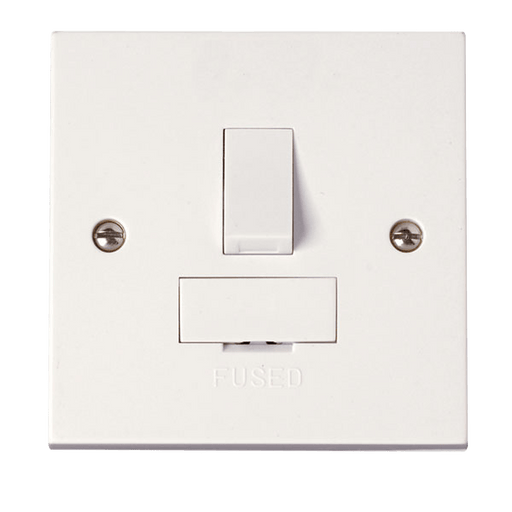

Click Scolmore Polar PRW051 13A Double Pole Switched Fused Connection Unit

SKU PRW051
Original price £2.92 - Original price £2.92
Original price
£2.92 inc VAT £2.43 exc VAT
£2.92 - £2.92
Current price £2.92 inc VAT £2.43 exc VAT inc VAT £2.43 exc VAT
Availability:
764 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

The Scolmore PRW051 is a premium 13A double pole switched fused connection unit, designed for safe and efficient electrical isolation. Featuring a square-edge polar white moulded plate, it offers a clean, modern aesthetic suitable for both domestic and commercial environments. With an optional bottom flex outlet and orange neon indicator, this unit ensures visibility and flexibility in installation. Certified antibacterial and antiviral, it’s ideal for hygiene-sensitive areas such as kitchens, bathrooms, and healthcare settings.

Key Features:

  • Rated Voltage: 250V AC | Rated Current: 13A
  • Fuse Fitted: 13A (BS 1362)
  • Double Pole Switching
  • Optional Flex Outlet (Bottom, Ø10mm)
  • Neon Indicator: Orange
  • Terminal Capacity: 3 x 2.5mm² or 2 x 4mm²
  • Twin Earth Terminals
Specification
  • Maximum Voltage - 250V~ 50Hz
  • Load Rating - 13A
  • Plate Fixing Centres - 60.3mm
  • Terminal Size - 5mmø
  • Terminal Torque - 2.5Nm
  • Terminal Capacity - 4 x 1.5mm2 or 2 x 2.5mm2
  • Ingress Protection - IP20
  • Back Box Depth - 25mm Minimum
  • Twin Earth Terminals - Yes

Datasheet

Product Dimensions

  • 86mm (W) x 86mm (H) x 11mm (D)
