Click Scolmore MCP051 13A Double Pole Switched Fused Connection Unit With Optional Flex Outlet & LED
Estimated delivery time: Estimated delivery tomorrow*
Description

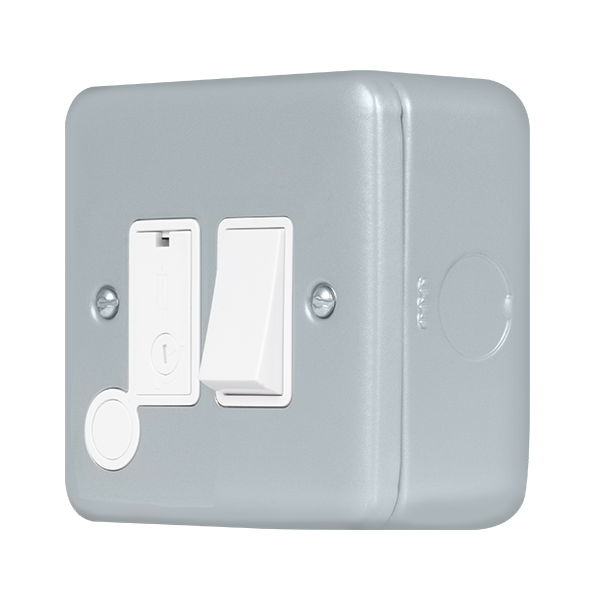

Click Scolmore MCP051 13A Double Pole Switched Fused Connection Unit
The Click Scolmore MCP051 13A Double Pole Switched Fused Connection Unit is a durable Metal Clad Pro wiring accessory designed for controlling, protecting and isolating suitable fixed electrical appliances. Commonly searched for as a metal clad fused spur, the MCP051 combines double-pole switching, fuse protection and a clear red LED indicator in one robust surface-mounted accessory.
Finished in Scolmore’s dusty grey colour, the MCP051 is well suited to commercial, industrial and demanding residential environments where a stronger alternative to a standard plastic fused connection unit is required. It can be considered for appropriate appliance circuits in workshops, utility rooms, offices, warehouses, kitchens, plant rooms and property-maintenance installations.
The unit has a 13A load rating at 250V AC and comes fitted with a 13A BS1362 fuse. The replaceable fuse helps protect the connected appliance or flex, provided the correct fuse rating is selected for the equipment and circuit.
Its double-pole switching mechanism disconnects both the live and neutral conductors when switched off. This provides effective local appliance isolation and makes the MCP051 a practical choice for suitable fixed equipment that requires a switched fused connection point.
A built-in red LED indicator provides a clear visual indication of the unit’s operating status. This can be particularly useful where installers, maintenance teams or building users need to identify whether the connected equipment is switched on.
The MCP051 also includes an optional flex outlet, allowing a suitable flexible cable to exit directly from the fused connection unit when required. This provides greater installation flexibility when connecting fixed appliances or other compatible electrical equipment.
Twin-earth terminals are included to support secure earth-conductor termination and continuity. The terminal capacity accommodates up to three 2.5mm² conductors or two 4mm² conductors, subject to the circuit design and applicable wiring requirements.
Both the plate and matching back box are electrophoretically coated for a consistent dusty grey finish. The curved Metal Clad Pro profile provides a cleaner and more contemporary appearance than many traditional square-edged metal clad accessories.
A matching 40mm-deep metal back box is supplied, creating a complete surface-mounted fused connection solution without requiring a separate compatible enclosure. The complete accessory measures 88mm wide, 88mm high and 48mm deep, with fixing centres of 60.3mm.
The MCP051 carries an IP20 ingress-protection rating and is designed for indoor use in dry locations. Its stated operating temperature range is -5°C to +40°C.
Choose the Click Scolmore MCP051 metal clad switched fused spur when you need a robust 13A fused connection unit with double-pole switching, visible LED indication, optional cable outlet and an included surface back box. It is an excellent specification for electricians, contractors, landlords, facilities managers and commercial maintenance teams seeking dependable Click Scolmore wiring accessories.
Key Product Features
- Click Scolmore product code: MCP051
- Metal Clad Pro range
- 13A switched fused connection unit
- Double-pole switching
- 250V AC rated voltage
- 13A BS1362 fuse fitted
- Red LED indicator
- Optional flex outlet
- Twin-earth terminals
- Dusty grey finish
- Electrophoretically coated plate and back box
- Supplied with a 40mm-deep metal back box
- Dimensions: 88 × 88 × 48mm
- Fixing centres: 60.3mm
- Terminal capacity: 3 × 2.5mm² or 2 × 4mm²
- IP20 ingress-protection rating
- Operating temperature: -5°C to +40°C
