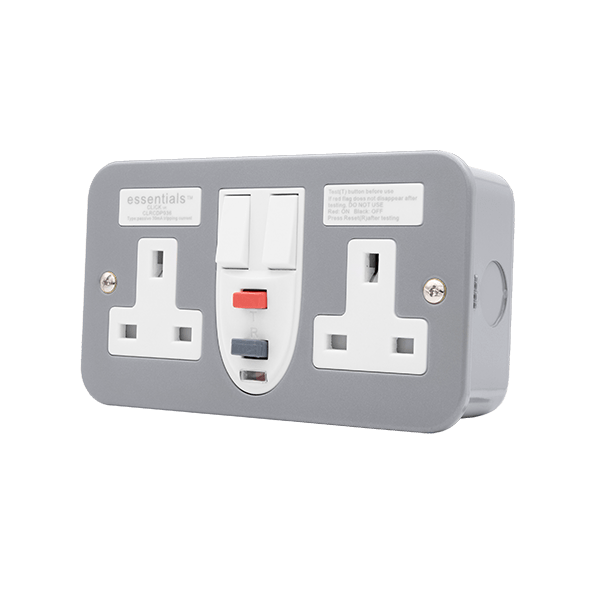

Click Scolmore CLRCDP036 13A 2 Gang Type A Passive RCD Switched Socket Outlet

Name: Click Scolmore CLRCDP036 13A 2 Gang Type A Passive RCD Switched Socket Outlet
Brand: Click Scolmore
SKU: CLRCDP036
Price: 19.06 GBP
Availability: InStock

SKU CLRCDP036

£19.06 - £19.06

£19.06 inc VAT £15.88 exc VAT

£19.06 - £19.06

£19.06 inc VAT £15.88 exc VAT inc VAT £15.88 exc VAT

Availability:

29 in stock, ready to be shipped

Quantity

Estimated delivery time: Next working day

Specification

Operating Voltage (AC) 250 Frequency (Hz) 50
Resistive Load Rating (A) 13
Breaking Capacity (A) 250 (Earth Leakage)
Through Fault Withstand (A) 1500
Trip Speed Less than 40ms at 150mA Residual
Current Termination Type Screw
Terminal Size (mm) Ø5 Terminal Torque Value (Nm) 2
Terminal Capacity - Solid (mm²) 3 x 2.5 or 3 x 4
Single Pole Switched Yes
Twin Earth Terminals Yes
Supplied Back Box Depth (mm) 40
Back Box Knockouts - Total (mm) 7 x Ø20
Back Box Knockouts - Top (mm) 3 x Ø20 Back Box
Knockouts - Sides (mm) 1 x Ø20
Back Box Knockouts - Bottom (mm) 2 x Ø20 Back Box Knockouts - Rear (mm) None
Back Box Earth Terminal Supplied Yes
Ingress Protection IP20
Operational Temperature (°C) -5 to +40
Warranty (Years) 20

Product Dimensions

140 (W) x 80 (H) x 42 (D)
