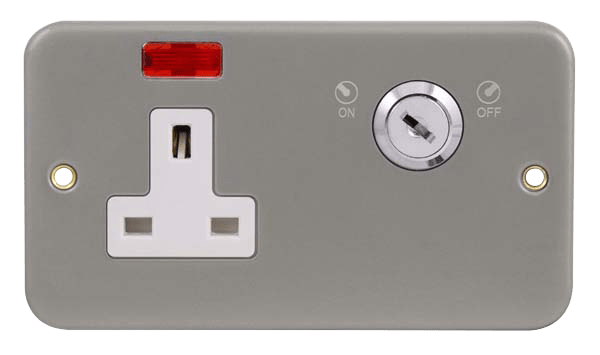

Click Scolmore CL675 13A 1 Gang DP Key Lockable Socket With Neon

Click Scolmore CL675 13A 1 Gang DP Key Lockable Socket With Neon

SKU CL675
£28.51 - £28.51
£28.51 inc VAT £23.76 exc VAT
£28.51 - £28.51
£28.51 inc VAT £23.76 exc VAT inc VAT £23.76 exc VAT
Availability:
Only 4 left!

Estimated delivery time: Next working day

Description

The Scolmore CL675 is a 13A 1 Gang Double Pole Key Lockable Switched Socket with a Neon Indicator, designed for secure and controlled power access in commercial, industrial, and utility environments. Featuring a heavy-duty metal clad finish, this socket is key-lockable in both ON and OFF positions, ensuring safety and compliance. It includes a 40mm deep back box with 7 x Ø20mm knockouts, twin earth terminals, and a red neon indicator for clear power status visibility. Built to BS EN 60669-1 and BS 1363-2 standards, the CL675 is ideal for installations requiring robust, tamper-proof electrical control.

Specification
  • Operating Voltage (AC) 250 Frequency (Hz) 50
  • Resistive Load Rating (A) 13
  • Termination Type Screw
  • Terminal Size (mm) Ø5 Terminal Torque Value (Nm) 1.2
  • Terminal Capacity - Solid (mm²) 3 x 2.5 or 2 x 4
  • Switched Yes (via Key)
  • Modular Rocker Switches Yes
  • Double Pole Switch Yes
  • Twin Earth Terminals Yes
  • Neon Indicator Yes Indicator Colour Red
  • Product Marking On & Off
  • Supplied Back Box Depth (mm) 40
  • Back Box Knockouts - Total (mm) 7 x Ø20
  • Back Box Knockouts - Top (mm) 3 x Ø20 Back Box
  • Knockouts - Sides (mm) 1 x Ø20
  • Back Box Knockouts - Bottom (mm) 2 x Ø20 Back
  • Box Knockouts - Rear (mm) None
  • Back Box Earth Terminal Supplied Yes
  • Ingress Protection IP20
  • Operational Temperature (°C) -5 to +40
    Warranty (Years) 20
Product Dimensions

  • 140 (W) x 80 (H) x 42 (D)
