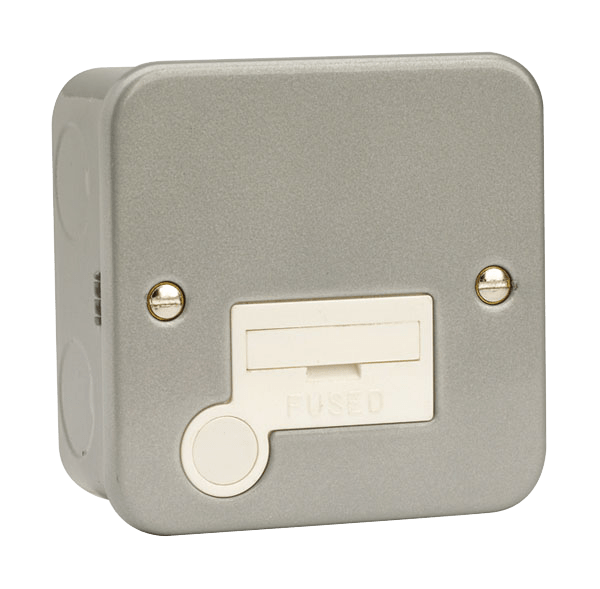

Click Scolmore CL050 13A Fused Connection Unit With Optional Flex Outlet

Click Scolmore CL050 13A Fused Connection Unit With Optional Flex Outlet

SKU CL050
£3.98 - £3.98
£3.98 inc VAT £3.32 exc VAT
£3.98 - £3.98
£3.98 inc VAT £3.32 exc VAT inc VAT £3.32 exc VAT
Availability:
13 in stock, ready to be shipped

Estimated delivery time: Next working day

Description

The Scolmore Click CL050 13A Fused Connection Unit is a heavy-duty metal clad wiring accessory designed for securely connecting compatible fixed electrical appliances and equipment. Its durable grey finish and contrasting white insert make it suitable for workshops, garages, utility rooms, commercial premises and other demanding indoor installations.

The CL050 is fitted with a 13A fuse and rated at 250V AC, helping provide local fused protection for connected equipment as part of a correctly designed electrical circuit. All screw terminals are accessible from the top, supporting straightforward conductor positioning and termination during installation.

Specification
  • Operating Voltage (AC) 250 Frequency (Hz) 50
  • Resistive Load Rating (A) 13
  • Fuse Fitted Type Plug Top Cartridge Fuse
  • Termination Type Screw
  • Terminal Size (mm) Ø5 Terminal Torque Value (Nm) 2
  • Terminal Capacity - Solid (mm²) 3 x 2.5 or 2 x 4
    Switched No
  • Twin Earth Terminals Yes
  • Flex Outlet Available Yes
  • Flex Outlet Location Front of Plate Flex Outlet
  • Dimension (mm) Ø10
  • Supplied Back Box Depth (mm) 40
  • Back Box Knockouts - Total (mm) 5 x Ø20
  • Back Box Knockouts - Top (mm) 2 x Ø20 Back Box
  • Knockouts - Sides (mm) 1 x Ø20
  • Back Box Knockouts - Bottom (mm) 1 x Ø20 Back
  • Box Knockouts - Rear (mm) None
  • Back Box Earth Terminal Supplied Yes
  • Ingress Protection IP20
  • Operational Temperature (°C) -5 to +40
  • Warranty (Years) 20
Product Dimensions

80 (W) x 80 (H) x 42 (D)
