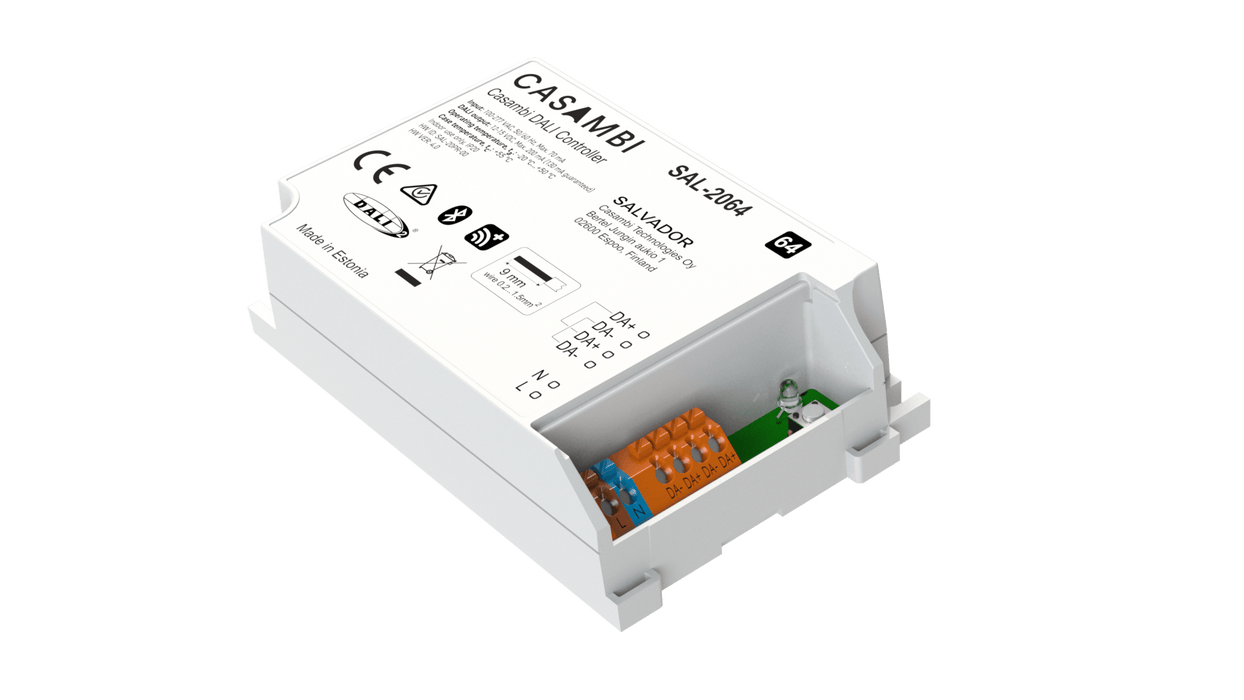

Casambi SAL-2064 Salvador 2000 DALI Controller – 64 DALI Drivers

The Casambi SAL-2064 Salvador 2000 is a professional DALI controller and Casambi wireless gateway designed to integrate wired DALI LED drivers into a Casambi smart lighting network. The SAL-2064 can address up to 64 DALI driver addresses, allowing connected DALI luminaires to be individually controlled, programmed and managed through the Casambi App.

Designed for professional lighting control applications, the SAL-2064 supports DALI D4i, DALI DT6 and DALI DT8, providing compatibility with a wide range of DALI LED drivers and lighting applications. DALI luminaires connected to the Salvador appear within the Casambi network alongside Casambi Ready devices, allowing wired and wireless lighting equipment to be controlled together.

Integrated DALI Power Supply

Unlike the Casambi Salvador 1000 Series, the SAL-2064 features an integrated 130mA DALI bus power supply, helping simplify installation by removing the requirement for a separate DALI bus power supply. Casambi specifies that Salvador 2000 controllers are intended specifically for connection to DALI drivers and that no additional DALI master units should be connected.

The SAL-2064 also includes a real-time clock with backup, providing additional flexibility for scheduled lighting applications.

Wireless DALI Lighting Control

The Casambi SAL-2064 DALI controller combines wired DALI lighting with Casambi's Bluetooth wireless mesh technology. This allows existing or new DALI lighting installations to benefit from wireless configuration and control through the Casambi ecosystem.

Each connected DALI driver can appear as an individual luminaire within the Casambi App, allowing installers and users to dim, group, programme and create scenes using DALI luminaires alongside Casambi Ready products.

The SAL-2064 is particularly suitable for commercial lighting, offices, retail, hospitality, residential developments, architectural lighting and lighting refurbishment projects where DALI and wireless Casambi control need to work together.

Key Features

  • Casambi SAL-2064 Salvador 2000
  • DALI-to-Casambi wireless lighting controller
  • Supports up to 64 DALI driver addresses
  • Integrated 130mA DALI bus power supply
  • Supports DALI D4i
  • Supports DALI DT6
  • Supports DALI DT8
  • Bluetooth wireless mesh technology
  • Individual DALI driver addressing and control
  • Casambi App configuration and control
  • Wired DALI and Casambi Ready devices can operate together
  • Built-in real-time clock with backup
  • 100–277V AC, 50/60Hz input
  • 12–15V DC DALI bus voltage
  • IP20 rated
  • Dimensions: 106 x 67 x 28mm
  • Indoor use



Specification

What is the Casambi SAL-2064?

The Casambi SAL-2064 Salvador 2000 is a DALI controller that integrates up to 64 wired DALI driver addresses into a Casambi wireless lighting network. It supports DALI D4i, DT6 and DT8 and includes an integrated 130mA DALI bus power supply, allowing connected DALI luminaires to be individually controlled through the Casambi App

FAQ's

What is the Casambi SAL-2064?

The SAL-2064 is a Salvador Series 2000 DALI controller that integrates wired DALI drivers into a Casambi wireless lighting network.

How many DALI drivers can the SAL-2032 control?

The SAL-2064 can address up to 64 DALI driver addresses.

Does the SAL-2032 have an integrated DALI power supply?

Yes. The Salvador 2000 Series includes an integrated 130mA DALI bus power supply.

Does the SAL-2032 support DALI D4i?

Yes. The SAL-2064 supports DALI D4i, as well as DALI DT6 and DT8.

Does the SAL-2064 support DALI DT6?

Yes. DALI DT6 is supported for compatible DALI lighting equipment.

Does the SAL-2064 support DALI DT8?

Yes. The SAL-2064 supports DALI DT8, making it suitable for compatible colour-temperature and colour-control applications.

Can the SAL-2064 connect DALI lighting to Casambi?

Yes. Its primary purpose is to integrate wired DALI drivers into the Casambi ecosystem, allowing the connected DALI luminaires to appear within the Casambi network.

Can DALI luminaires be controlled individually?

Yes. The SAL-2064 allows connected DALI drivers to be addressed, programmed and controlled individually through the Casambi App.

Does the SAL-2064 require a separate DALI power supply?

No. Unlike the Salvador 1000 Series, the SAL-2064 has an integrated 130mA DALI bus power supply.

What is the difference between SAL-1064 and SAL-2064?

The main difference is the DALI bus power supply. The SAL-1064 requires an external DALI-compliant power supply, while the SAL-2064 has an integrated 130mA DALI bus power supply.

What voltage does the SAL-2064 operate at?

The SAL-2064 has a 100–277V AC, 50/60Hz input. Its DALI bus operates at approximately 12–15V DC.

Can the SAL-2064 be used with Casambi Ready devices?

Yes. The SAL-2064 allows wired DALI and Casambi Ready devices to operate together within the same Casambi network, enabling combined scenes and lighting control.

What is the difference between SAL-2016, SAL-2032 and SAL-2064?

The difference is the number of DALI driver addresses supported:


  • SAL-2016: up to 16 DALI driver addresses

  • SAL-2032: up to 32 DALI driver addresses

  • SAL-2064: up to 64 DALI driver addresses

Is the SAL-2064 suitable for lighting refurbishment projects?

Yes. Casambi specifically identifies the SAL-2064 as suitable for low-budget renovation projects, providing a way to integrate wired DALI lighting into a Casambi wireless system.
