Casambi CGW-KNX-02 KNX DALI Dual Gateway 128 Luminaires Control UK
Estimated delivery time: 2-3 Working Days
Description

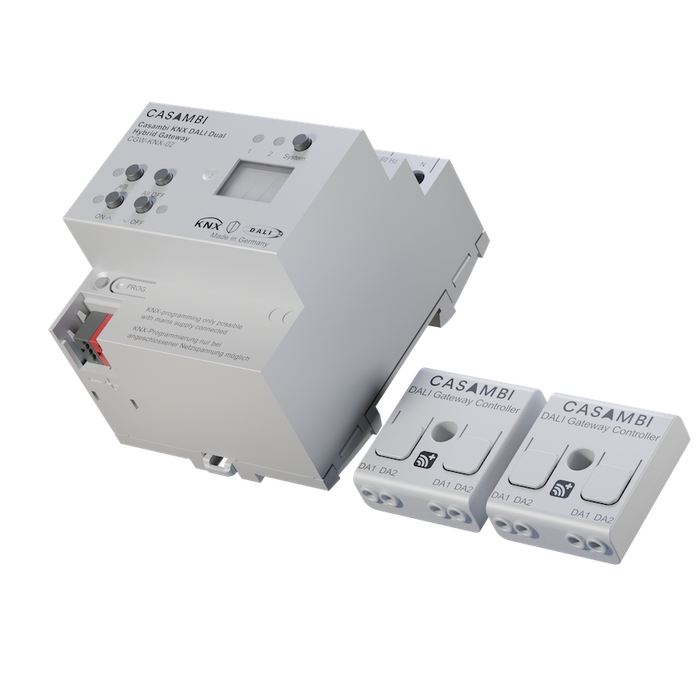

Casambi CGW-KNX-02 KNX DALI Dual Hybrid Gateway – 128 Luminaires
The Casambi CGW-KNX-02 is a professional KNX DALI Dual Hybrid Gateway designed to integrate Casambi wireless lighting networks with KNX building automation systems. With two independent DALI buses, the gateway can control up to 128 Casambi luminaires, with up to 64 luminaires per DALI bus, making it ideal for larger lighting installations and multi-zone projects.
The CGW-KNX-02 combines KNX-DALI and Casambi wireless control in one integrated solution, simplifying the connection between the two lighting control platforms. Casambi luminaires appear within KNX ETS as standard DALI devices, allowing them to be controlled using compatible KNX switches, sensors, touch panels and other KNX control equipment.
KNX, DALI and Casambi Integration
The CGW-KNX-02 provides two independent DALI outputs, each supporting up to 64 DALI devices. This gives installers greater flexibility when separating lighting into different floors, rooms, zones or circuits.
The gateway supports advanced lighting functions including dimming, Tunable White and RGB control, allowing these functions to be incorporated into a KNX building automation system.
The Casambi side communicates using Bluetooth/BLE, while the KNX side uses KNX TP with S-mode commissioning. The system can also be configured using the Casambi App and commissioned using KNX ETS and the appropriate Casambi configuration tools.
Ideal for Larger KNX Lighting Installations
With capacity for up to 128 luminaires, the CGW-KNX-02 is particularly suitable for commercial buildings, offices, hotels, schools, retail premises, hospitality projects and larger residential developments where KNX automation needs to integrate with flexible Casambi wireless lighting control.
Key Features
- Casambi CGW-KNX-02
- KNX DALI Dual Hybrid Gateway
- Integrates Casambi wireless lighting with KNX
- 2 independent DALI buses
- Up to 128 luminaires
- Up to 64 luminaires per DALI bus
- Casambi luminaires appear as standard DALI devices in KNX ETS
- Supports dimming
- Supports Tunable White
- Supports RGB lighting control
- KNX TP / S-mode commissioning
- Casambi Bluetooth and BLE connectivity
- 110–240V AC or DC input
- DALI output: 16V DC
- 148mA guaranteed DALI current per channel
- 250mA maximum per channel
- IP20 – indoor use
- Operating temperature: -5°C to +45°C
- DIN-rail installation
- Suitable for multi-zone lighting projects
