Casambi CGW-001-PSU Cloud Gateway Remote Lighting Control UK

Casambi CGW-001-PSU Cloud Gateway Remote Lighting Control UK

SKU CGW-001-PSU
£676.08 - £676.08
£676.08 inc VAT £563.40 exc VAT
£676.08 - £676.08
£676.08 inc VAT £563.40 exc VAT inc VAT £563.40 exc VAT
Datasheet

Estimated delivery time: 2-3 Working Days

Description

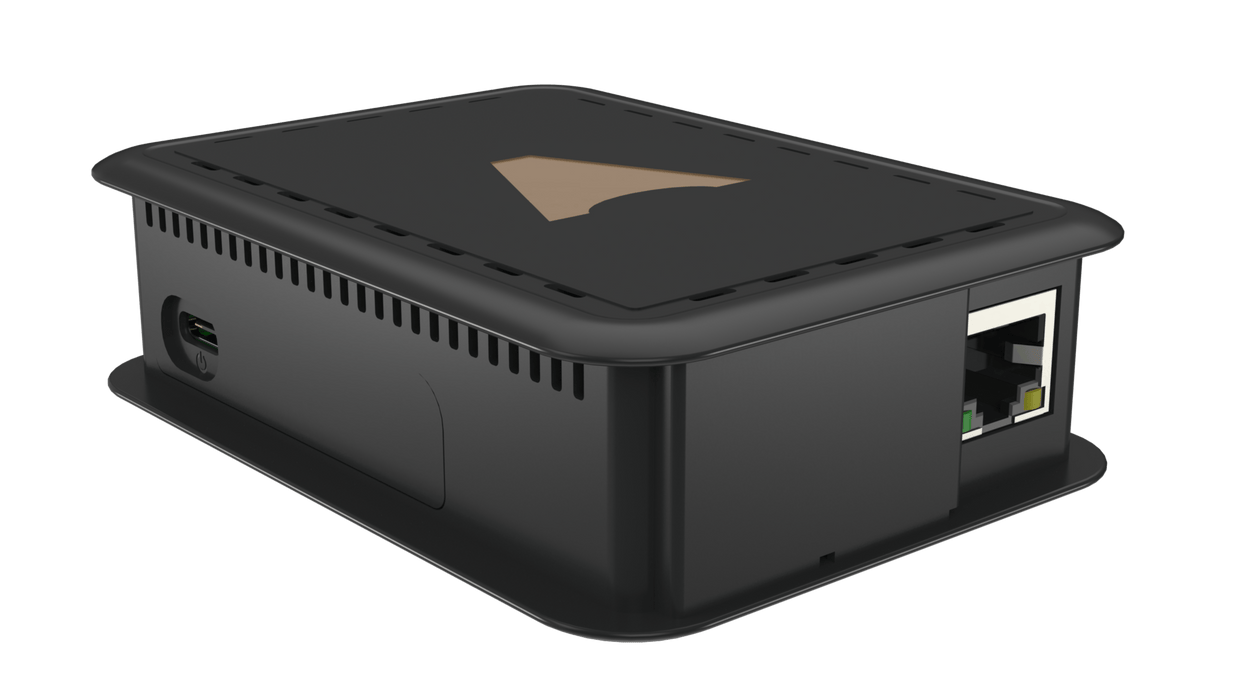

Casambi CGW-001-PSU Cloud Gateway with Power Supply Unit

The Casambi CGW-001-PSU Cloud Gateway provides secure remote access, monitoring and control of a Casambi wireless lighting network over the internet. Designed for professional Casambi lighting installations, the gateway connects a Casambi network to the internet using Ethernet or Wi-Fi, allowing users to manage their lighting system remotely through the Casambi App.

The CGW-001-PSU is the Power Supply Unit (PSU) version of the Casambi Cloud Gateway and includes a power adapter suitable for UK, EU, US, Australian and PRC regions. The gateway connects via USB-C and requires a 5V DC supply with a minimum 3A rating.

Remote Casambi Lighting Control

With a Casambi Cloud Gateway installed, users can remotely control and monitor their Casambi lighting network without needing to be physically present at the installation. Functions available through the Casambi App include switching and dimming individual luminaires or groups, controlling entire networks, activating scenes and animations, adjusting colour temperature, hue and saturation, and creating or editing timers.

This makes the CGW-001-PSU particularly useful for commercial buildings, offices, retail premises, hotels, restaurants, residential developments and multi-site lighting installations where remote lighting management is required.

Ethernet and Wi-Fi Connectivity

The Casambi Cloud Gateway features both Gigabit Ethernet and 2.4GHz/5GHz Wi-Fi connectivity, providing flexibility when connecting the Casambi system to an existing internet network. It also incorporates Bluetooth 5.0 and Bluetooth Low Energy (BLE) for communication with the Casambi ecosystem.

The gateway is based on Raspberry Pi hardware, with a Broadcom BCM2711 quad-core processor and 4GB LPDDR4 memory.

Key Features

  • Casambi CGW-001-PSU Cloud Gateway
  • Casambi Cloud Gateway with Power Supply Unit
  • Remote control and monitoring of Casambi lighting networks
  • Internet connectivity via Ethernet or Wi-Fi
  • Bluetooth 5.0 and BLE
  • Gigabit Ethernet
  • USB-C connection
  • 5V DC via USB-C, minimum 3A
  • UK-compatible power adapter included
  • Create and manage lighting groups
  • Create and activate scenes and animations
  • Remote dimming and switching
  • Colour temperature, hue and saturation control
  • Lighting timers and scheduling
  • Works with Casambi Evolution firmware
  • One Cloud Gateway per Casambi network
  • IP20 – indoor use only
  • Operating temperature: 0–50°C
  • CE and UKCA certified
Specification

What is the Casambi CGW-001-PSU?

The Casambi CGW-001-PSU is a Cloud Gateway that connects a Casambi wireless lighting network to the internet, enabling remote monitoring and control through the Casambi App. It supports Ethernet and Wi-Fi connectivity and includes a power adapter suitable for the UK and other regions.

FAQ's

Frequently Asked Questions

What is the Casambi CGW-001-PSU?

The CGW-001-PSU is a Casambi Cloud Gateway that provides remote internet access to a Casambi lighting network, allowing lighting to be monitored and controlled remotely.

What does PSU mean?

PSU means Power Supply Unit. The CGW-001-PSU includes a power adapter, unlike the CGW-001-POE version which is designed for Power over Ethernet installations.

Does the CGW-001-PSU come with a power supply?

Yes. The PSU version includes a power adapter suitable for the UK, EU, US, AU and PRC regions.

Can the Casambi Cloud Gateway connect using Wi-Fi?

Yes. The CGW-001-PSU supports 2.4GHz and 5GHz Wi-Fi as well as Gigabit Ethernet.

Can the CGW-001-PSU connect using Ethernet?

Yes. It has a Gigabit Ethernet port for connecting the gateway to an internet network.

Can I control my Casambi lights remotely?

Yes. The Cloud Gateway allows users to remotely control and monitor their Casambi network over the internet through the Casambi App.

What lighting functions can I control remotely?

The gateway provides access to functions including dimming, switching, scenes, animations, colour temperature, hue, saturation and timers, depending on the capabilities of the connected Casambi devices.

Can I create lighting schedules?

Yes. The Casambi Cloud Gateway supports the creation and editing of timers for automated lighting control.

Does the CGW-001-PSU work with all Casambi networks?

The Cloud Gateway works with Casambi Evolution firmware and the network must meet the relevant sharing/security requirements.

How many Cloud Gateways can be used on one Casambi network?

Casambi specifies one Cloud Gateway per Casambi network.

Is the CGW-001-PSU the same as the CGW-001-POE?

The two versions provide the same core Cloud Gateway functionality, but differ in how they are powered. The CGW-001-PSU comes with a power adapter, while the CGW-001-POE is designed for Power over Ethernet and includes a splitter.

What voltage does the CGW-001-PSU use?

The gateway operates from 5V DC via USB-C, with a minimum required supply of 3A.

Is the Casambi Cloud Gateway suitable for outdoor use?

No. The CGW-001-PSU has an IP20 rating and is intended for indoor use only.

What is the operating temperature?

The specified operating temperature is 0°C to 50°C ambient.
