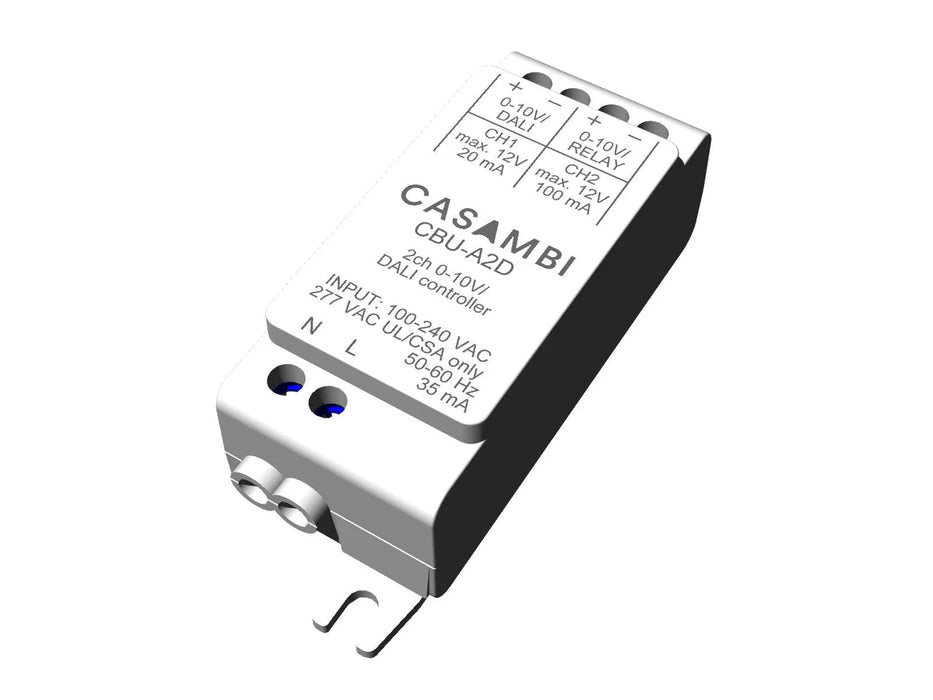

Casambi CBU-A2D Bluetooth 2-Channel 0-10V DALI Controller UK for LED

Casambi CBU-A2D Bluetooth 2-Channel 0-10V DALI Controller UK for LED

SKU CBU-A2D
£80.00 - £80.00
£80.00 inc VAT £66.67 exc VAT
£80.00 - £80.00
£80.00 inc VAT £66.67 exc VAT inc VAT £66.67 exc VAT
Datasheet

Estimated delivery time: 2-3 Working Days

Description

Casambi CBU-A2D Bluetooth 2-Channel 0-10V/DALI Controller

The Casambi CBU-A2D is a compact Bluetooth-controllable, Casambi-enabled lighting controller designed for intelligent wireless control of compatible LED drivers and lighting systems. Combining 2-channel 0-10V control with DALI functionality, the CBU-A2D provides a flexible solution for professional lighting control installations.

The CBU-A2D can control one or two 0-10V controllable LED drivers, making it suitable for applications requiring independent control of two lighting channels. It can also control a tunable white LED driver with two 0-10V control interfaces, making it ideal for adjustable colour temperature and dynamic white lighting applications.

For installations using DALI technology, the CBU-A2D can be configured to operate in DALI mode, allowing connection to a compatible DALI LED driver or DALI sensor. This enables advanced lighting functions such as presence detection and daylight harvesting, depending on the connected equipment.

Wireless Casambi Lighting Control

The CBU-A2D connects into the Casambi wireless lighting control ecosystem and can be configured using the free Casambi app on compatible iOS and Android devices. Casambi-enabled products communicate through an intelligent wireless mesh network, allowing lighting systems to be expanded from individual luminaires through to larger multi-device installations. Casambi states that networks can incorporate up to 250 Casambi-enabled units.

This makes the Casambi CBU-A2D particularly useful for commercial lighting, offices, retail premises, hospitality, residential projects and smart lighting installations where wireless control and flexible configuration are required.

Key Features

  • Casambi-enabled Bluetooth lighting controller
  • 2-channel 0-10V/DALI controller
  • Control one or two 0-10V LED drivers
  • Suitable for tunable white LED drivers
  • Configurable for DALI operation
  • Compatible with suitable DALI LED drivers and sensors
  • Supports lighting applications incorporating presence detection and daylight harvesting
  • Configurable through the Casambi app
  • Integrates into a Casambi wireless mesh network
  • Universal input voltage of 100-240V AC for CE applications
  • 50-60Hz operating frequency
  • Compact dimensions of 76 x 26 x 23mm
  • IP20 protection
  • Built-in Class II protection

The compact 76 x 26 x 23mm housing allows the CBU-A2D to be incorporated into a wide range of lighting control installations where space is limited.

Specification


The Casambi CBU-A2D is a Bluetooth-controllable 2-channel lighting controller that provides 0-10V or DALI control for compatible LED drivers. It can control one or two 0-10V LED drivers, including tunable white drivers, or be configured for DALI operation with compatible LED drivers and sensors. The controller is configured using the Casambi app and integrates into a Casambi wireless mesh lighting network

FAQ's

What is the Casambi CBU-A2D?

The Casambi CBU-A2D is a Bluetooth-controllable 2-channel 0-10V/DALI lighting controller designed to provide wireless control of compatible LED drivers and lighting systems.

Is the Casambi CBU-A2D Bluetooth controlled?

Yes. The CBU-A2D is Bluetooth controllable and can be configured and controlled through the Casambi app on compatible mobile devices.

What type of LED drivers can the CBU-A2D control?

The CBU-A2D can control one or two 0-10V controllable LED drivers. It can also control a tunable white LED driver using its two 0-10V control interfaces.

Does the CBU-A2D support DALI?

Yes. The CBU-A2D can be configured into DALI mode and connected to a compatible DALI LED driver or DALI sensor.

Can the CBU-A2D be used for tunable white lighting?

Yes. The two 0-10V channels can be used with a suitable tunable white LED driver, allowing control of lighting systems with two 0-10V control interfaces.

Can the Casambi CBU-A2D work with sensors?

Yes. When configured for DALI operation, the CBU-A2D can be connected to a compatible DALI sensor for functions such as presence detection and daylight harvesting.

How is the CBU-A2D configured?

The CBU-A2D is configured using the Casambi app, allowing its functionality to be adapted to the requirements of the lighting installation. Casambi also supports over-the-air reconfiguration of compatible CBU devices.

What voltage does the Casambi CBU-A2D operate on?

The CBU-A2D has a 100-240V AC input for CE applications, with 50-60Hz operation. The product documentation also specifies compatibility with 277V AC for UL/CSA applications.

What are the dimensions of the CBU-A2D?

The Casambi CBU-A2D measures approximately 76mm x 26mm x 23mm, making it a compact option for lighting control installations.

How many Casambi devices can be connected to a network?

Casambi states that its wireless mesh network can support up to 250 Casambi-enabled units, depending on the system and application.

Is the CBU-A2D suitable for commercial lighting?

Yes. Its combination of Bluetooth wireless control, 0-10V/DALI compatibility and Casambi mesh networking makes it suitable for a wide range of commercial and professional lighting applications.

Is the CBU-A2D the same as a standard Bluetooth dimmer?

Not exactly. The CBU-A2D is specifically designed as a 0-10V/DALI lighting controller, rather than a conventional mains dimmer. It interfaces with compatible LED drivers and DALI equipment to provide intelligent lighting control
