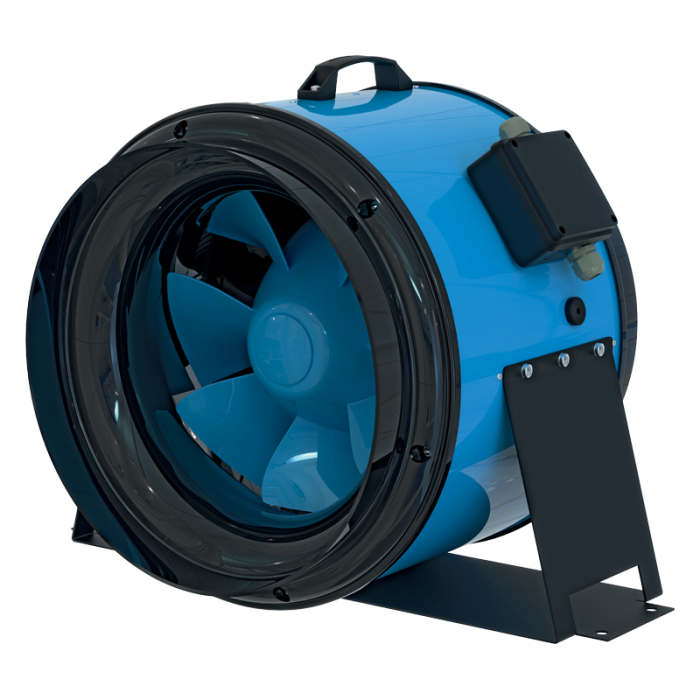

Blauberg PRIMO-EC-400 Extractor Fan with Energy Efficient EC Motor - 400 mm

Blauberg PRIMO-EC-400 Extractor Fan with Energy Efficient EC Motor - 400 mm

SKU PRIMO-EC-400
£1,066.90 - £1,066.90
£1,066.90 inc VAT £889.08 exc VAT
£1,066.90 - £1,066.90
£1,066.90 inc VAT £889.08 exc VAT inc VAT £889.08 exc VAT

Estimated delivery time: 3-4 days

Description

Main Features:

  • Maximum Airflow Rate (m3/h) - 5700m3/hour
  • Inline fans for supply and exhaust ventilation of various commercial and industrial premises requiring powerful air flow.
  • The fans are compatible with ∅ 200, 355 and 400 mm air ducts.
  • Combines wide capabilities and high performance features of axial and centrifugal fans, providing powerful air flow.
  • Energy efficient EC motor.
  • 220–240 V single phase at 50 Hz.
  • Equipped with ball bearings for longer service life (up to 40 000 hours).
  • All motors have manual reset thermal overload protection.
  • The fan speed is regulated by a smooth 0-10 V controller
Specification
  • Voltage [V] - 1~ 220–240
  • Frequency [Hz] - 50/60
  • Power [W] - 726
  • Current [A] - 3.23
  • Maximum air flow [m³/h (l/s)] - 5700 (1583)
  • RPM [min⁻¹] - 2580
  • Sound pressure at 3 m [dBA] - 33–66
  • Protection rating - IPX4

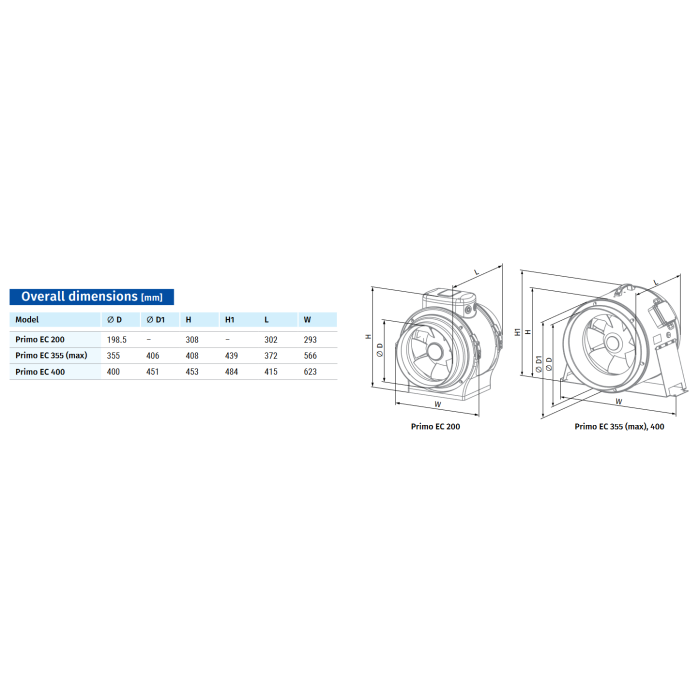

Datasheet

The 3D viewer could not load. Please refresh the page or check your browser privacy settings.
Drag to rotate. Scroll or pinch to zoom.

Interactive product view

Blauberg Primo EC

Rotate, zoom and explore the fan, then select a feature to learn more.
