BG PCDCL22W 13A Double Switched Socket - Pearlescent White

BG Evolve PCDCL22W-01 Pearlescent White Double Switched Socket

Upgrade modern residential and commercial interiors with the BG Evolve PCDCL22W-01 Pearlescent White Double 13A Switched Socket. Combining two UK power outlets with a slim screwless front plate, this decorative socket provides everyday functionality while creating a cleaner, more refined finish than a basic moulded accessory.

The soft Pearlescent White colour coordinates naturally with white, cream, neutral and light-grey interiors. It is suitable for modern kitchens, bedrooms, living rooms, home offices, hotels, apartments and commercial refurbishment projects where electrical accessories form part of the overall interior design.

Two Individually Switched 13A Outlets

The PCDCL22W-01 provides two standard Type G UK socket outlets, each controlled by its own single-pole switch. This allows connected appliances to be switched off individually without removing their plugs.

The socket is rated at 13A and operates from a 220–240V supply. It can power suitable household and commercial equipment, including televisions, computers, lamps, kitchen appliances, chargers and office equipment, provided the total connected load remains within the circuit and socket ratings.

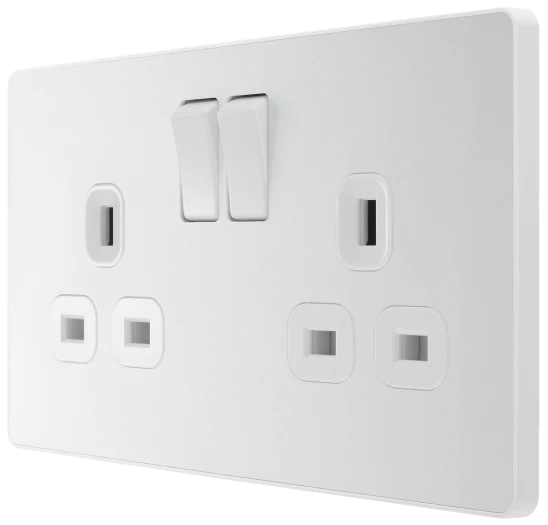

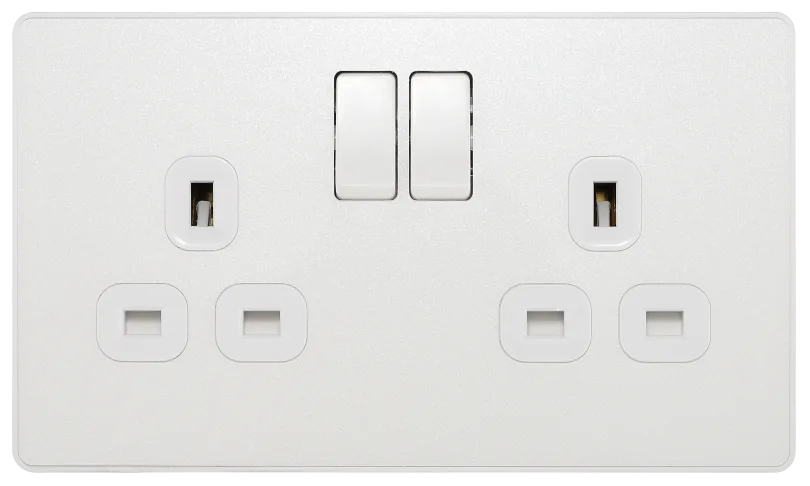

Pearlescent White Screwless Design

Part of the BG Evolve range, this model features a decorative Pearlescent White finish with coordinated white socket inserts and switches.

The screwless front plate clips onto the installed socket base and conceals the mounting screws once fitting is complete. This creates a smooth, modern appearance and makes the decorative plate easier to remove when painting or wallpapering around the accessory.

The plate should only be removed after the electrical supply has been safely isolated.

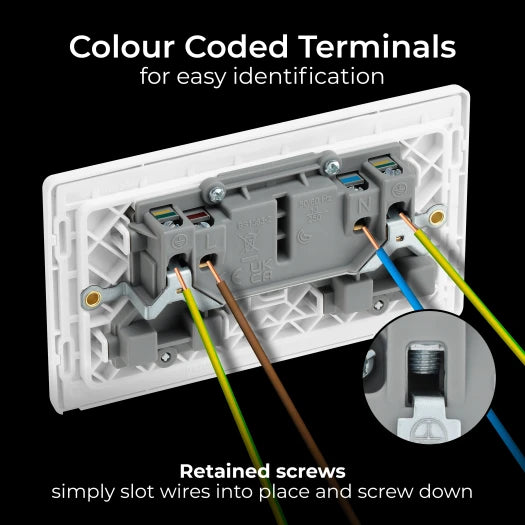

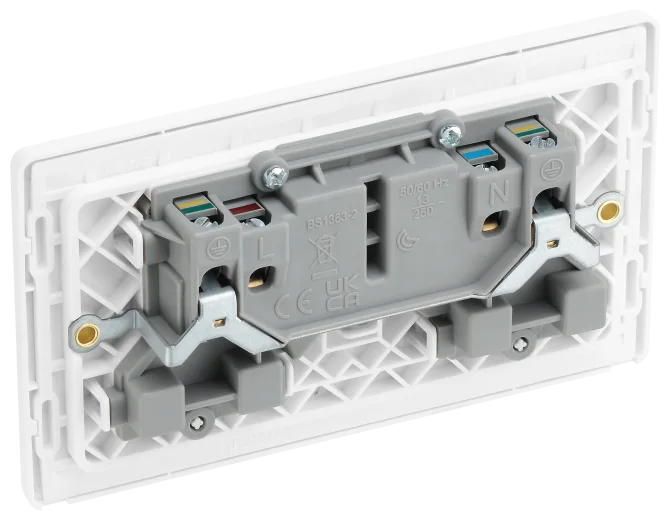

Installer-Friendly Terminal Arrangement

Angled, in-line terminals provide clear access when connecting the supply conductors. Printed colour coding helps identify the line, neutral and earth connections, while captive backed-out screws are supplied in a ready-to-wire position and remain retained inside the terminals.

The published terminal capacity is:

• Three 2.5mm² conductors
• Three 4mm² conductors
• Two 6mm² conductors

This makes the socket suitable for correctly designed ring-final and radial circuits, subject to conductor size, protective-device rating and current wiring requirements.

Twin Earth Terminals

Two earth terminals are fitted as standard, making the socket suitable for appropriate high-integrity earthing arrangements.

Protective conductors must be connected correctly, and a suitable earth link should be provided to a metal mounting box where required. All electrical connections should be completed and tested by a suitably qualified installer.

Minimum 35mm Back Box

BG specifies a minimum mounting-box depth of 35mm for the PCDCL22W-01.

The socket can be installed with a suitable:

• 35mm double metal back box
• Deeper flush metal box
• Compatible dry-lining box
• Appropriate double surface pattress

A deeper box may provide additional working space where several conductors enter the enclosure. The mounting surface should also be flat and correctly finished so the screwless plate can clip evenly onto the socket base.

Double-Socket Dimensions

The PCDCL22W-01 measures approximately:

• 146mm wide
• 86mm high
• 29mm overall depth
• 120.6mm horizontal fixing centres
• 35mm minimum mounting-box depth

These dimensions follow the standard UK double-socket format while retaining the slim visible profile associated with the Evolve range.

Suitable for Modern Domestic Interiors

The socket is suitable for coordinated installation throughout:

• New-build houses
• Home renovations
• Kitchen refurbishments
• Bedrooms
• Living rooms
• Home offices
• Loft conversions
• Apartment developments
• Utility rooms
• Residential extensions

Matching Pearlescent White switches, USB sockets, fused connection units and communication outlets from the BG Evolve range can be used to maintain a consistent decorative finish across the property.

Suitable for Commercial and Hospitality Projects

The clean screwless appearance also makes the PCDCL22W-01 suitable for:

• Hotel bedrooms
• Serviced apartments
• Offices
• Meeting rooms
• Reception areas
• Retail interiors
• Student accommodation
• Care facilities
• Property developments
• Apartment communal areas

Its familiar double-socket layout provides practical power access while offering a more contemporary finish than conventional white moulded wiring accessories.
