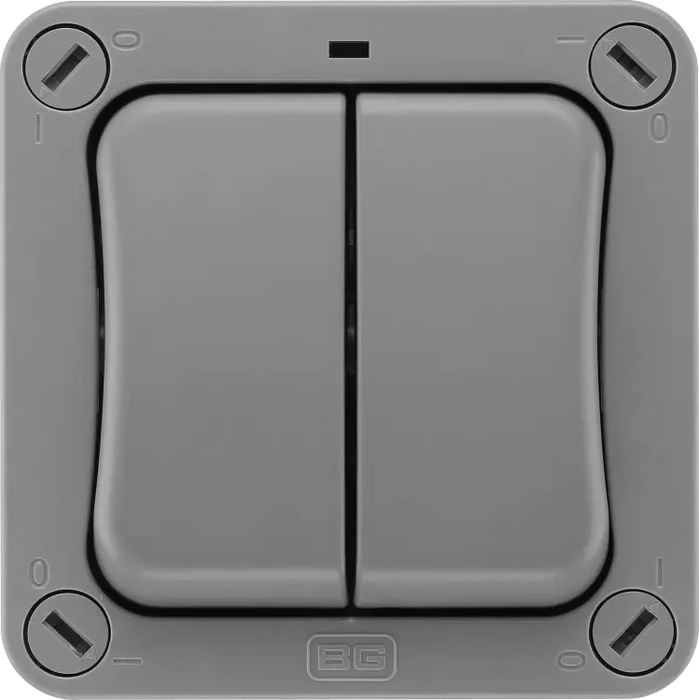

BG Nexus Storm WP42 2G 20AX 2 Way Switch

BG Nexus Storm WP42 2G 20AX 2 Way Switch

SKU WP42-02
£13.23 - £13.23
£13.23 inc VAT £11.03 exc VAT
£13.23 - £13.23
£13.23 inc VAT £11.03 exc VAT inc VAT £11.03 exc VAT
Availability:
Only 1 left!

Estimated delivery time: Estimated delivery tomorrow*

Description

IP rated accessories designed to protect against ingress from water jets and
dust, with durable seals that maintain integrity and a robust polycarbonate
housing for high impact resistance which will not crack or fade, ensuring longevity of life.

Specification
  • IP66 rated

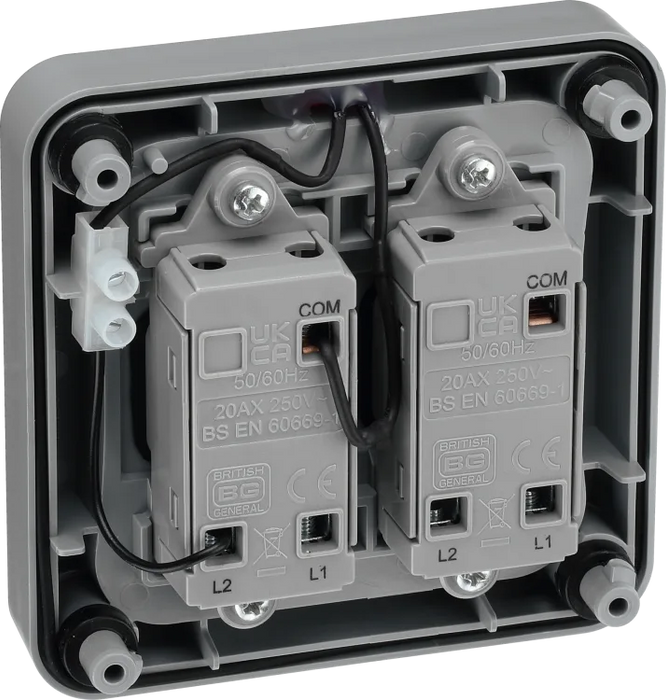

  • Clearly marked terminals with backed out captive screws for easy installation
  • 20 Amp, 20AX inductive rated
  • Housing will accept alternative switch modules from the Grid range
  • LED indicator can be wired to illuminate when off or on depending on wiring blanking caps
  • Fast fix - no separate screws, no screw covers, 150º rotation
  • Positive rocker action

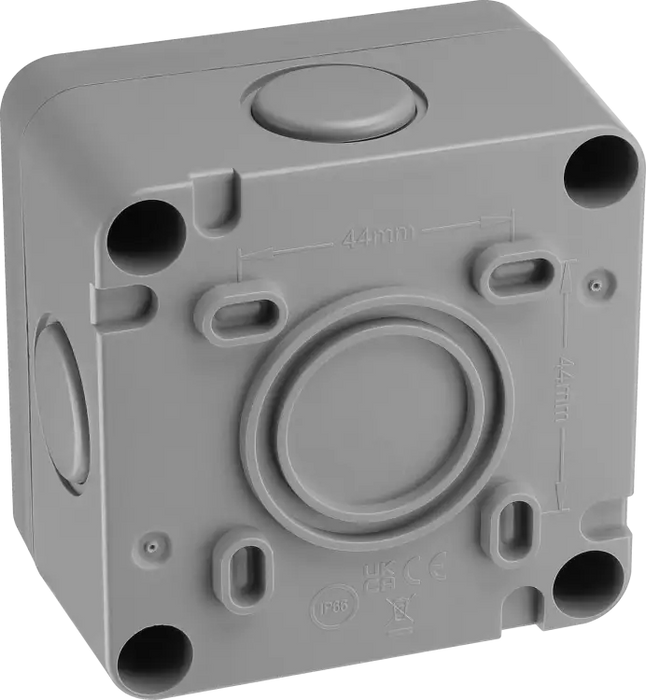

  • Multiple gland entry positions: 5 versatile entry options with M25 capability with an easy push out blank plug design. 1 drill out entry 20/25mm in rear face
  • Earth terminal in mounting box
  • Contact Gap - 3.0mm minimum
  • Terminal Capacity - 4 x 1.0mm² 4 x 1.5mm² 2 x 2.5mm² 1 x 4.0mm²
  • RoHS Directive - Yes

Datasheet

Product Dimensions

(H x W x D) cm - 9 x 9 x 6.5
