The BG Electrical Storm WP30-02 weatherproof switch is a robust outdoor switching solution designed for external lighting and power-supply applications. Rated at 20A and operating at 220–240V, it combines double-pole isolation with two-way switching, allowing a connected circuit to be controlled from a second switch position.
Its durable grey enclosure carries an IP66 rating, providing strong protection against dust and powerful water jets. This makes the BG WP30-02 suitable for demanding exterior electrical installations where dependable weather resistance is required. The rocker switch also includes a configurable LED indicator, which can be wired to illuminate when the circuit is switched either on or off.
Specification
IP66 rated
Clearly marked terminals with backed out captive screws for easy installation
20 Amp, 20AX inductive rated
Housing will accept alternative switch modules from the Grid range
LED indicator can be wired to illuminate when off or on depending on wiring blanking caps

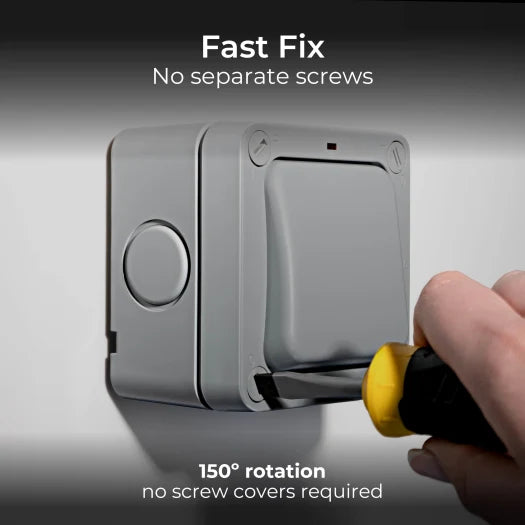

Fast fix - no separate screws, no screw covers, 150º rotation
Positive rocker action

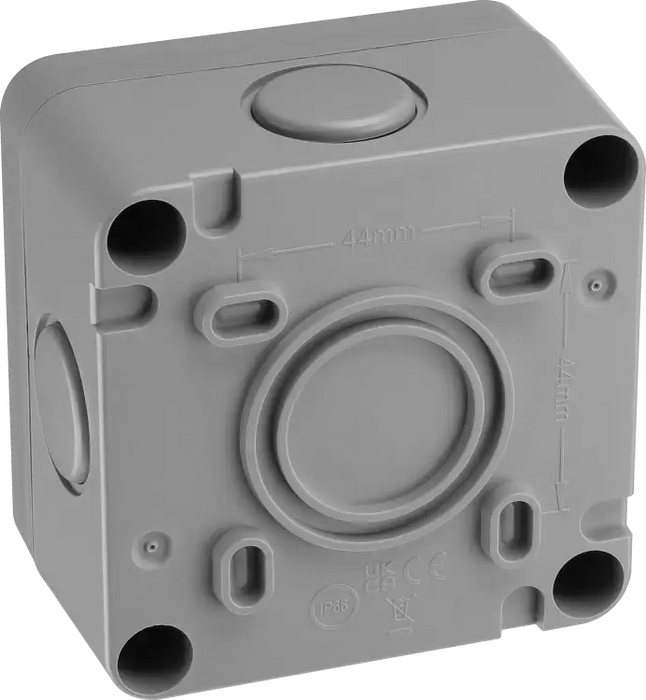

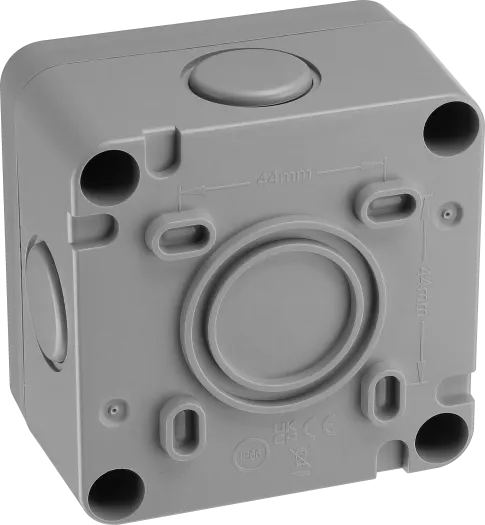

Multiple gland entry positions: 5 versatile entry options with M25 capability with an easy push out blank plug design. 1 drill out entry 20/25mm in rear face
Earth terminal in mounting box
Contact Gap - 3.0mm minimum
Terminal Capacity - 4 x 1.0mm² 4 x 1.5mm² 2 x 2.5mm² 1 x 4.0mm²
