BG Nexus NBS22UAC12W Double switched single pole, with USB A + C (12W)

SKU NBS22UAC12W
Original price £14.99 - Original price £14.99
Original price
£14.99 inc VAT £12.49 exc VAT
£14.99 - £14.99
Current price £14.99 inc VAT £12.49 exc VAT inc VAT £12.49 exc VAT

Estimated delivery time: Next working day

Description

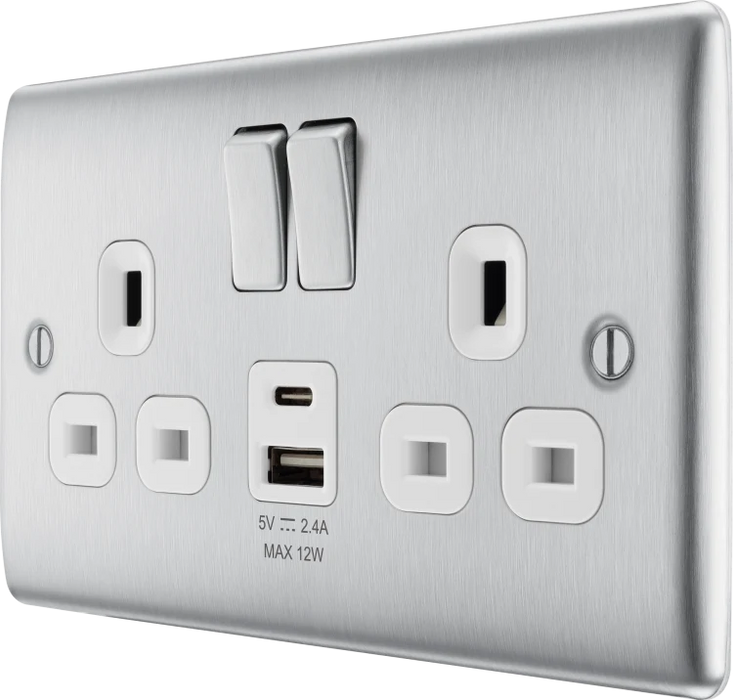

Upgrade your space with the BG Electrical NBS22UAC12W-01, a premium 13A double switched socket from the Nexus Metal range, finished in elegant brushed steel with crisp white inserts. This modern socket features integrated 12W USB charging with both Type A and Type C ports, allowing you to charge multiple devices simultaneously without sacrificing plug space.

The smart USB technology automatically detects connected devices and adjusts the charging pattern for optimal performance, while the standby mode prevents overcharging once the device is fully powered. Ideal for smartphones, tablets, MP3 players, and other USB-powered gadgets, this socket delivers up to 50% charge in just 30 minutes—perfect for fast-paced lifestyles.

Designed with angled, colour-coded terminals, captive screws, and twin earth terminals, the NBS22UAC12W-01 ensures easy installation and high-integrity circuit protection. Its moisture control gasket protects the metal edges from tarnishing, making it suitable for kitchens, bedrooms, offices, and other interior spaces.

 Main Features:

  • Sleek and slim profile with softly rounded edges.
  • 2.4A USB charging output, with charge shared across two outlets.
  • Smart USB - Standby mode when device is fully charged;
    AutoDetect's the USB device and adjusts charging pattern to
    suite; protective overload function.
  • USB charger standby mode when not in use.
  • Power socket for standard 3 pin UK plug.
  • Fixed integrated plastic gasket to protect metal edges from
    moisture.
  • Colour matched fixing screws.

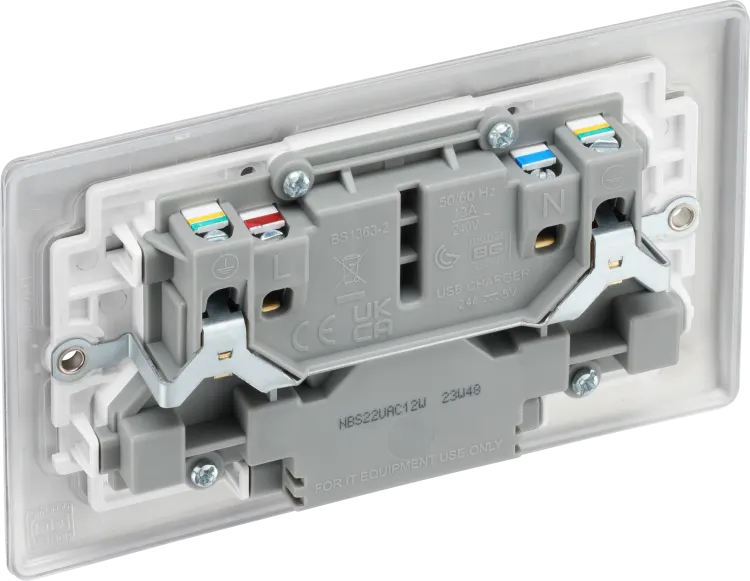

  • Angled in-line colour coded terminals with backed out screws for
    fast installation.
  • Easy to install, supplied with fixing screws and installation
    instructions .
  • Twin earth fitted as standard for high integrity circuits.
Specification
  • Standard(s) - BS 1363-2:2016+A1:2018, BS EN 62368-1:2014, EN55032
  • Rating - 13 Amp 240V AC
  • Switch Type - Single Pole
  • Terminal Capacity - 3 x 2.5mm² 3 x 4mm² 2 x 6mm²
  • RoHS Directive - Yes
  • WEEE Directive - Yes
  • Mounting Box Depth (Min) -25mm
  • USB Output -12W Max, 5V, 2.4A, shared across
    Output Tolerance -<5%
    Standby Power - <100mW
    Fixing Centres -120.6mm

Product Dimensions

  • Width (mm)146
  • Height (mm)86
