BG Nexus NBN82 2G 2W Trailing Edge LED Dimmer Switch – 2 x 100W LED - Black Nickel

BG Nexus Metal NBN82-01 Black Nickel Double Trailing Edge LED Dimmer Switch

Control the brightness of two separate compatible lighting circuits from one premium decorative wall plate with the BG Nexus Metal NBN82-01 Black Nickel 2 Gang 2 Way Trailing Edge LED Dimmer Switch.

Designed for modern dimmable LED lighting as well as compatible CFL, incandescent and halogen loads, the NBN82-01 combines two independent rotary dimmer controls, push on/off switching, intelligent trailing-edge technology, soft start and overload protection in BG Nexus Metal’s premium Black Nickel finish.

Two Independent Dimmer Controls

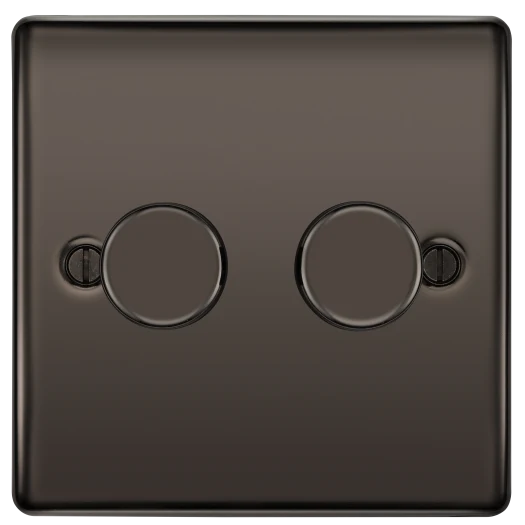

The NBN82-01 contains two dimmer modules on one 86mm square faceplate. BG officially describes it as a Double Dimmer Switch, 2 Way, Trailing Edge 200W, and its technical documentation identifies the Nxx82 format as a 2G 2-Way Dimmer.

That makes the product particularly useful where two compatible lighting groups need separate brightness control from the same wall position.

Potential applications include separate control of:

• Main ceiling lighting
• Pendant lighting
• Wall lights
• Dining-area lighting
• Feature lighting
• Bedroom lighting groups
• Lounge lighting zones
• Kitchen lighting zones

The two channels operate independently, subject to the connected lamps and circuit design.

Up to 100W Dimmable LED Per Channel

For dimmable LED lighting, BG specifies a load of:

5–100W per dimmer module.

Because NBN82-01 contains two dimmer modules, BG’s installation instructions specify a maximum LED load of:

100W per dimmer / 200W total across the plate.

That makes phrases such as these especially valuable:

• 2 gang LED dimmer switch
• dual 100W LED dimmer
• double LED dimmer switch
• Black Nickel LED dimmer
• two circuit dimmer switch
• twin trailing edge dimmer

Up to 20 Dimmable LED Lamps Across the Plate

BG’s installation instructions state a maximum of 10 dimmable LED lamps per dimmer module.

For the two-module NBN82 configuration, that means up to:

10 LED lamps per channel / 20 LED lamps across the complete plate, while remaining within the 100W-per-channel and 200W-total LED load limits.

The actual number that can be used may be lower depending on the electrical characteristics of the LED lamps or drivers, so lamp compatibility and total load still need to be checked.

Important 2-Gang Traditional-Lighting Load Limit

BG’s general technical specification lists a module capability of up to 200W for tungsten/incandescent loads and 20–200W for halogen.

However, BG’s dedicated installation instructions apply a specific derating to the two-dimmer square plate:

• 150W maximum per dimmer
• 300W maximum total per plate

for the incandescent and eco-halogen table.

For this exact 2-gang product, those installation-manual values are the safer customer-facing figures to publish.

Intelligent Trailing Edge Technology

NBN82-01 uses trailing-edge, also called lagging-edge, dimming technology.

BG states that its intelligent trailing-edge dimmers offer a lower minimum load than leading-edge dimmers and provide compatibility with suitable:

• Dimmable LED lamps
• Dimmable CFL lamps
• Halogen lamps
• Incandescent lamps

This makes the NBN82-01 particularly relevant for customers upgrading older dimmer switches for modern low-wattage LED lighting.
