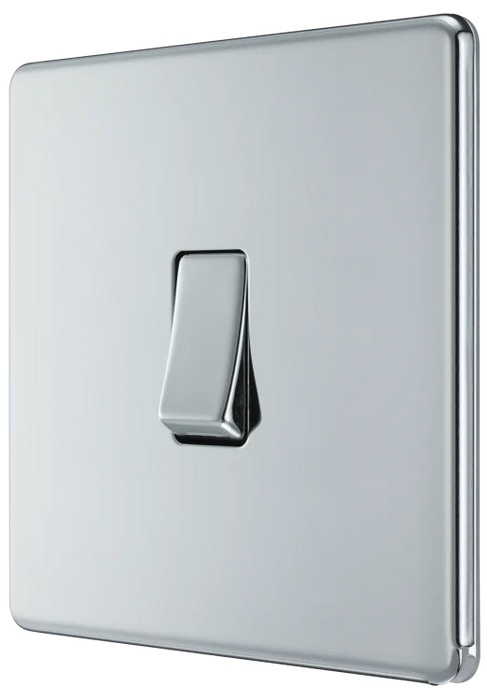

BG Nexus FPC12 10A 1G 2W Single Light Switch Polished Chrome

BG Nexus FPC12 10A 1G 2W Single Light Switch Polished Chrome

SKU FPC12
£4.50 - £4.50
£4.50 inc VAT £3.75 exc VAT
£4.50 - £4.50
£4.50 inc VAT £3.75 exc VAT inc VAT £3.75 exc VAT
Availability:
995 in stock, ready to be shipped

Estimated delivery time: Estimated delivery tomorrow*

Description

BG's Nexus range of plate switches have been designed to perform at 10AX inductive loads.The screwless slim line design in a range of finishes will blend with any décor - suitable for domestic or commercial installations.

Specification
  • Fixed integrated plastic gasket to protect metal edges from moisture
  • Under 5mm thick
  • Flat profile with rounded edges
  • Standard(s) - BS EN 60669-1
  • Rating - 10 Amp, 250V~(10AX – no derating for inductive or fluorescent loads)
  • Contact Gap - 3.0mm minimum
  • Terminal Capacity - 4 x 1.0mm² 4 x 1.5mm² 2 x 2.5mm² 1 x 4.0mm²
  • RoHS Directive - No
  • WEEE Directive - No
  • Fixing Centres - 60.3mm
  • Dimension (W x L x H) cm - 3.3 x 9 x 9.2
Product Dimensions

Width (mm) - 86

Height (mm) - 86
