BG Evolve PCDSB74B 45A Square Plate Double Pole Cooker Switch with LED Indicator - Satin Brass

BG Evolve PCDSB74B 45A Square Plate Double Pole Cooker Switch with LED Indicator - Satin Brass

SKU PCDSB74B
£11.53 - £11.53
£11.53 inc VAT £9.61 exc VAT
£11.53 - £11.53
£11.53 inc VAT £9.61 exc VAT inc VAT £9.61 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

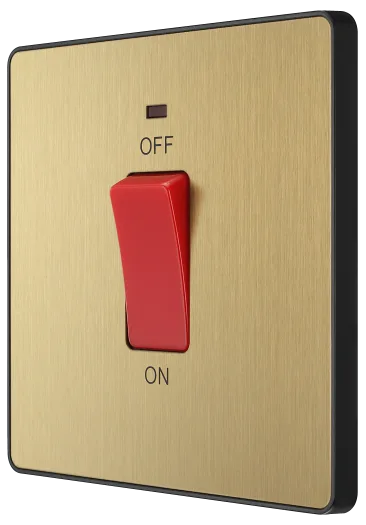

Control and isolate a compatible electric cooker or oven with the BG Evolve PCDSB74B-01 satin brass 45A double pole switch. Its compact square plate, clearly marked rocker and flush LED indicator provide a practical local control point without the larger footprint of a traditional cooker-switch plate.

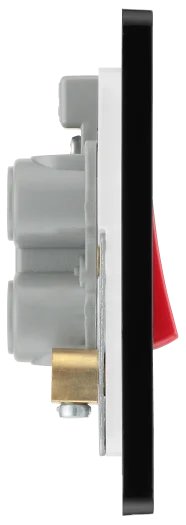

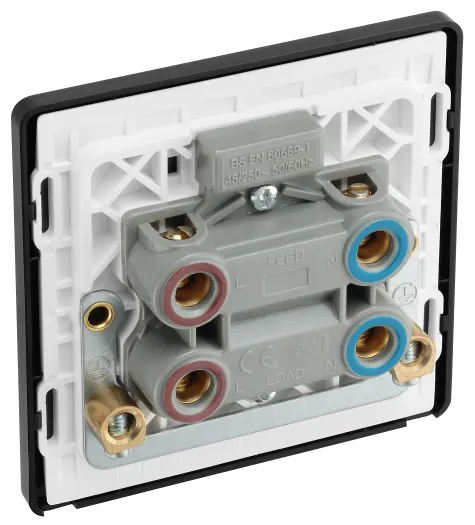

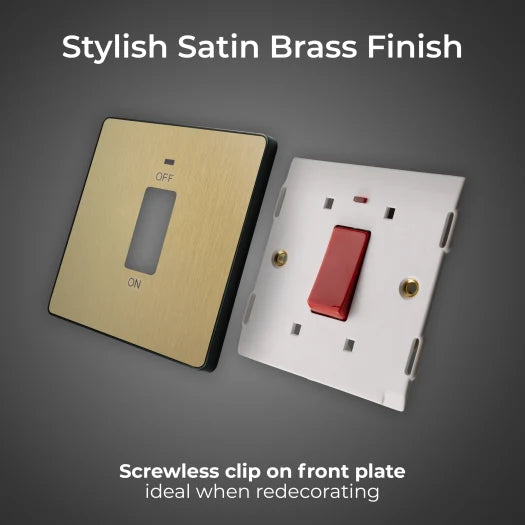

The screwless satin brass front plate clips over the installed base to conceal the fixing screws and can be removed during decorating. Twin earth terminals support suitable high-integrity circuits, while the 45A mechanism accepts up to four 4mm², three 6mm² or one 16mm² conductor. The switch measures approximately 86 × 86 × 30mm and requires a minimum 47mm mounting box.

Specification

The BG Evolve PCDSB74B-01 is a satin brass 45A square-plate double pole switch designed to control and isolate a compatible electric cooker, oven or other correctly specified high-current cooking appliance.

Double pole switching disconnects both the live and neutral conductors when the rocker is switched off. A flush, low-power LED provides a visible indication when the switch is on, while the compact 86mm square format offers an alternative to the larger PCDSB72B-01 cooker switch.

The PCDSB74B-01 does not incorporate an additional 13A socket. It has twin earth terminals, a screwless clip-on front plate, IP20 protection and standard 60.3mm fixing centres. Its overall dimensions are approximately 86mm high, 86mm wide and 30mm deep, and a minimum 47mm mounting box is required.
