BG Evolve PCDSB22B 13A Double Switched Socket with Black Inserts - Satin Bras

SKU PCDSB22B
Original price £5.90 - Original price £5.90
Original price
£5.90 inc VAT £4.92 exc VAT
£5.90 - £5.90
Current price £5.90 inc VAT £4.92 exc VAT inc VAT £4.92 exc VAT

Estimated delivery time: Estimated delivery tomorrow*

Description

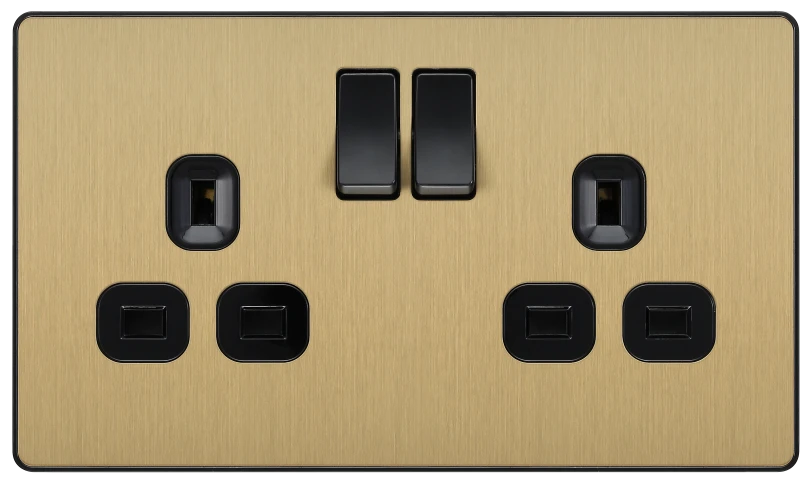

Upgrade a standard power point with the BG Evolve PCDSB22B-01 satin brass 13A double switched socket. Combining two individually switched UK plug outlets with a decorative screwless plate and contrasting black inserts, it provides a practical power solution with a warmer, premium metallic finish.

The socket is suitable for powering two compatible mains appliances from one wall position. Each outlet has its own single-pole rocker switch, allowing lamps, televisions, computers, kitchen equipment and other suitable appliances to be controlled without repeatedly removing their plugs.

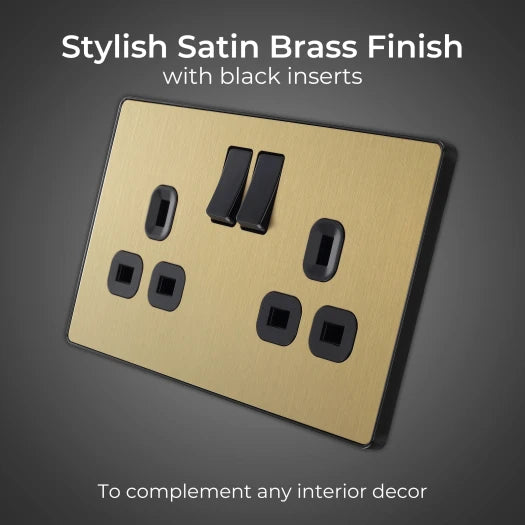

Its satin brass finish provides a softer and more understated appearance than highly polished brass. The black socket inserts and matching black rockers create a strong contrast, making the accessory particularly suited to modern kitchens, living rooms, bedrooms, home offices and commercial interiors with brass, black or dark decorative details.

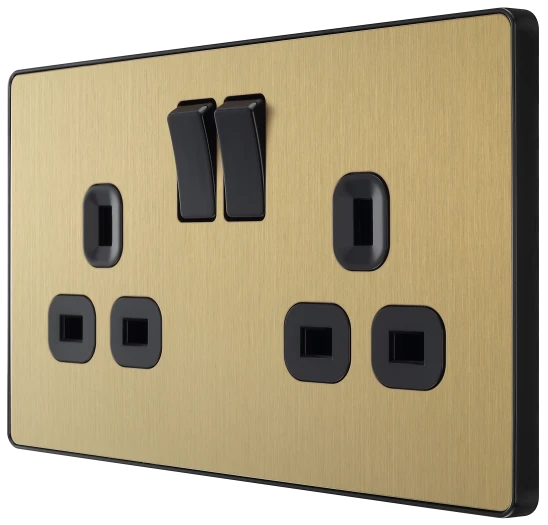

A low-profile screwless front plate clips securely over the installed socket base, concealing the fixing screws for a cleaner wall finish. The decorative plate can also be removed during painting or redecorating, allowing the electrical base to remain installed while helping protect the satin brass surface from paint and accidental damage.

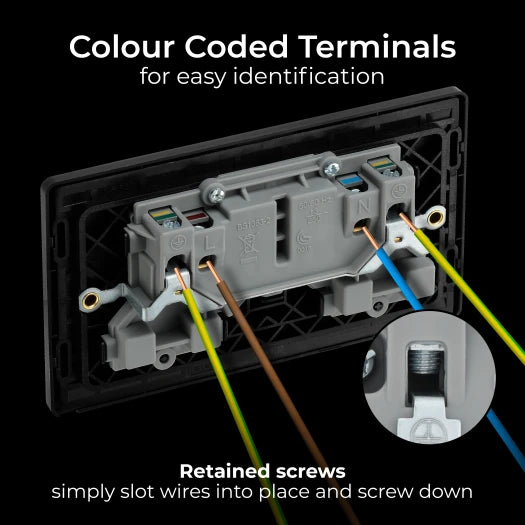

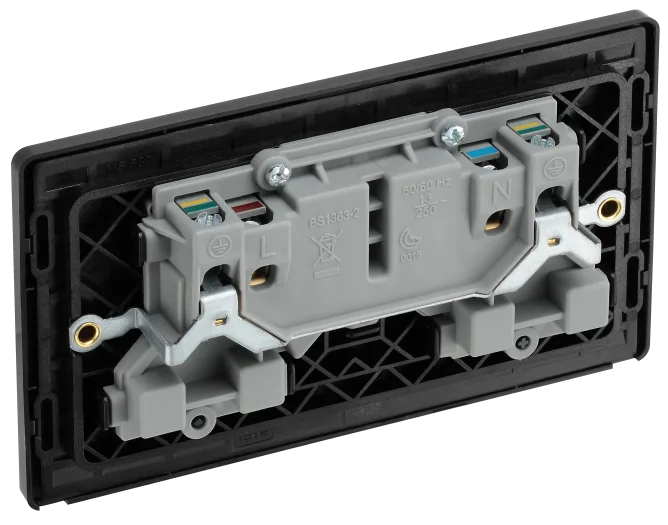

Installation is supported by angled, in-line and colour-coded terminals that provide clear access to the live, neutral and earth connections. Captive backed-out screws help prevent screw loss and reduce preparation time, while fixing screws and installation instructions are supplied.

The socket includes twin earth terminals as standard, making it suitable for correctly designed high-integrity earthing arrangements. The official technical sheet lists terminal capacity for three 2.5mm², three 4mm² or two 6mm² conductors, although the appropriate cable arrangement must always be confirmed for the circuit and installation.

Rated at 13A and 250V AC, the PCDSB22B-01 is designed for standard three-pin UK plugs. It has an IP20 rating for protected indoor locations, operates from a 220–240V supply and uses single-pole socket switching.

The complete accessory measures approximately 146mm wide, 86mm high and 29mm deep, with standard 120.6mm horizontal fixing centres. It requires a minimum 35mm mounting box, so the existing box depth and available wiring space should be checked before installation.
