BG Evolve PCDMB22B 13A 2G DP Switched Socket Matt Black

BG Evolve PCDMB22B 13A 2G DP Switched Socket Matt Black

SKU PCDMB22B
£6.24 - £6.24
£6.24 inc VAT £5.20 exc VAT
£6.24 - £6.24
£6.24 inc VAT £5.20 exc VAT inc VAT £5.20 exc VAT
Availability:
692 in stock, ready to be shipped

Estimated delivery time: Estimated delivery tomorrow*

Description

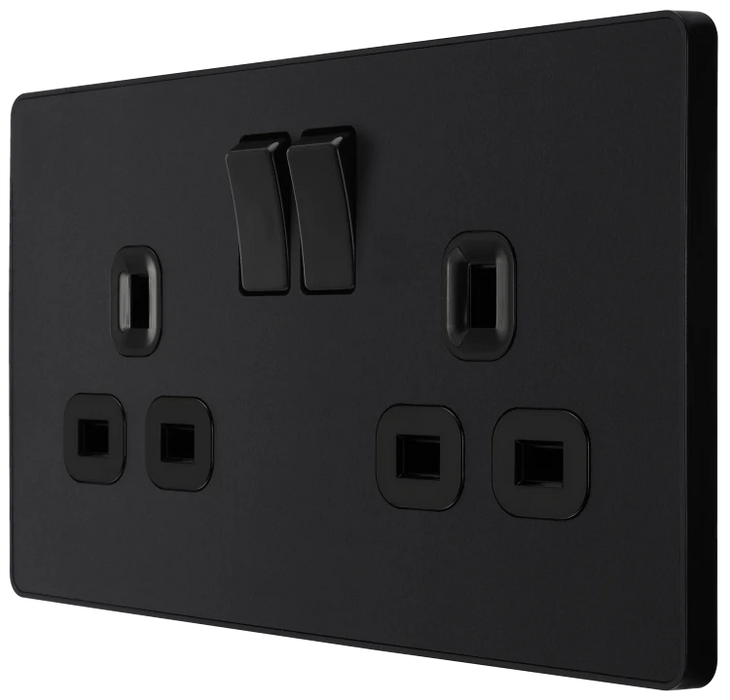

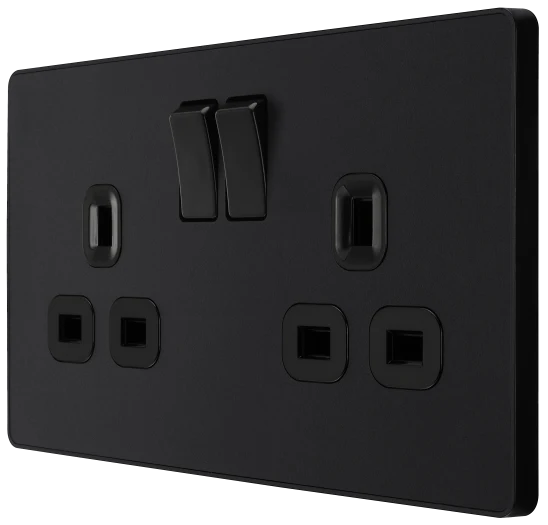

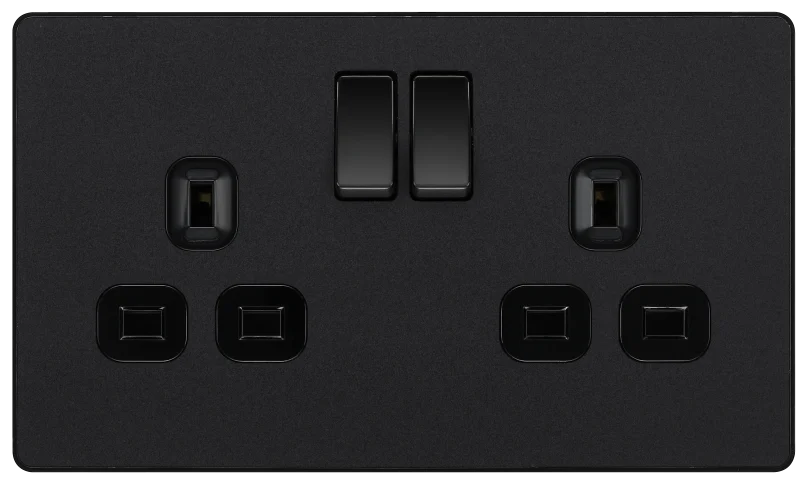

BG Evolve PCDMB22B 13A 2G DP Switched Socket Matt Black



Main Features:

  • Power socket for standard 3 pin UK plug
  • Easy to install, supplied with fixing screws and installation instructions

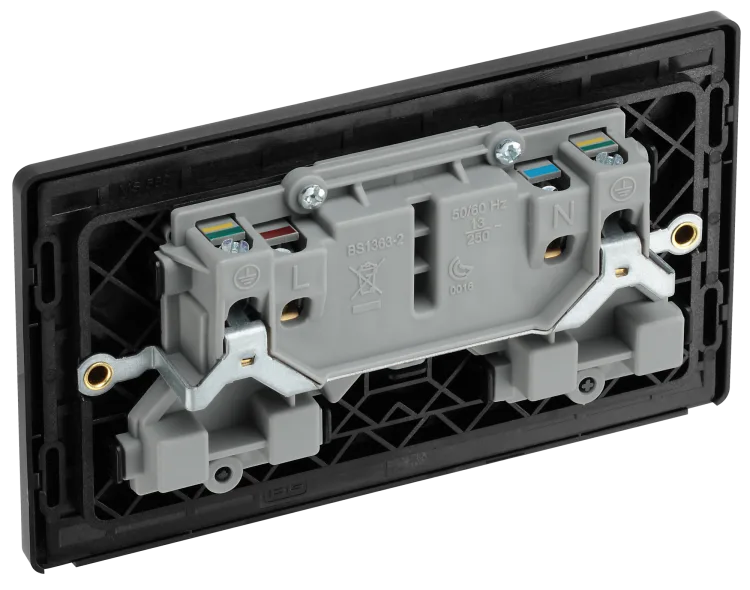

  • Angled in-line colour coded terminals for quick and easy installation
  • Captive screws prevent screw loss

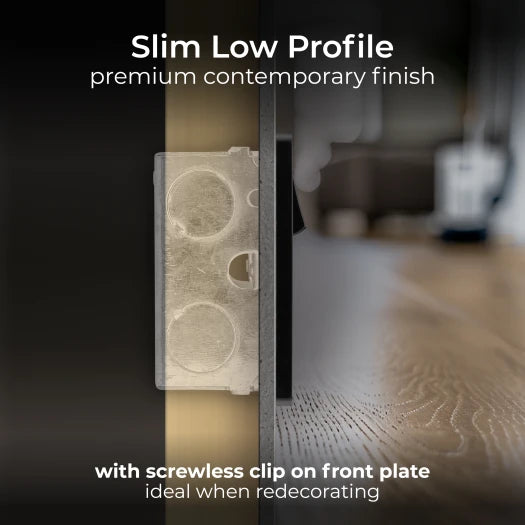

  • Screwless front plate clips on and off easily, ideal for redecorating
  • Twin earth for high integrity circuits
Specification
  • Standard(s) - BS 1363-2:2016+A1:2018
  • Rating - 13 Amp 250V AC
  • Switch Type - Single Pole
  • Terminal Capacity - 3 x 2.5mm², 3 x 4.0mm², 2 x 6.0mm²
  • RoHS Directive - Yes
  • WEEE Directive - Yes
  • Mounting Box Depth (Min) - 35mm

Datasheet

Product Dimensions

Width (mm) - 146

Height (mm) - 86
