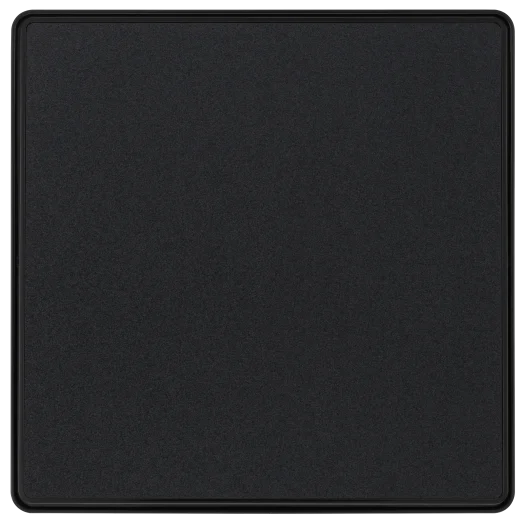

BG Evolve Matt Black Intermediate Edge-to-Edge Rocker Switch

Control one lighting circuit from three or more switch positions with the BG Evolve PCDMB13EB-01 Matt Black 20A 16AX Intermediate Edge-to-Edge Rocker Light Switch. Combining an intermediate switching mechanism with an oversized full-face rocker, this contemporary wall switch is ideal for staircases, hallways, landings, corridors and larger rooms requiring lighting control from multiple locations.

An intermediate switch is installed between two compatible two-way switches. This arrangement allows one lighting circuit to be switched on or off from three separate positions. Additional intermediate switches may be incorporated into a correctly designed circuit where control from more locations is required. BG specifically identifies the PCDMB13EB-01 as an intermediate switch designed to act as the middle switch in a multi-position lighting circuit.

The switch is rated at 20A and 16AX, making it suitable for compatible domestic and commercial lighting circuits. Its 16AX inductive rating is relevant to appropriate lighting loads, while the official technical specification lists an operating rating of 250V AC. The connected lighting, conductor size and circuit arrangement should always be checked by a competent electrical installer.

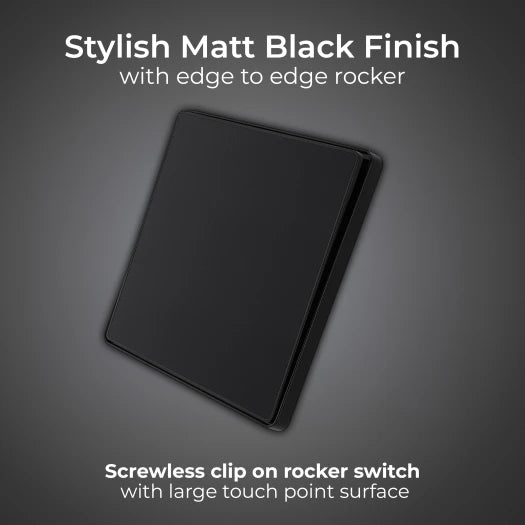

A key feature of this model is its edge-to-edge rocker. The rocker covers almost the entire front of the accessory, creating a significantly larger operating surface than a conventional narrow light switch. This generous touch point makes the switch easier to find and operate while delivering a clean, minimalist appearance.

Finished in sophisticated matt black, the switch complements contemporary, industrial, minimalist and monochrome interiors. It pairs particularly well with dark walls, black door hardware, modern kitchen cabinetry and matching matt black sockets, dimmers and wiring accessories from the BG Evolve range.

The front rocker provides a modern screwless appearance, with no visible fixing screws once installation is complete. It clips on and off the fitted switch mechanism, allowing the decorative surface to be removed during painting or wallpapering and replaced after the surrounding wall has been finished.

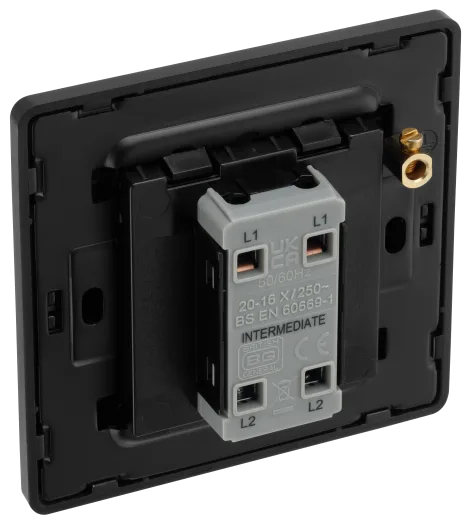

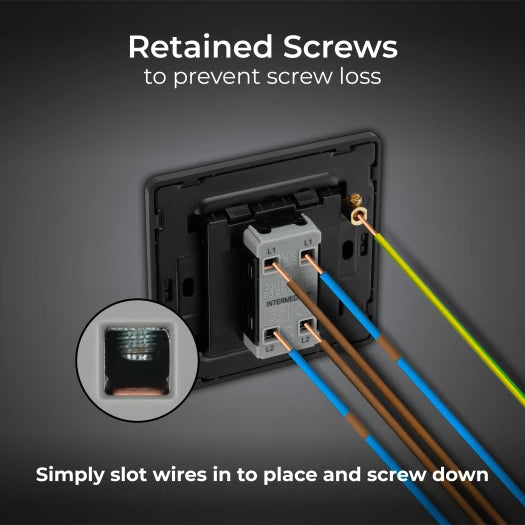

Installation is supported by captive, backed-out terminal screws. The screws are supplied in an open position ready for cable insertion and remain retained within the terminal mechanism, helping speed up installation and reduce the risk of lost screws.

The official terminal capacity accommodates:

• Four 1mm² conductors
• Four 1.5mm² conductors
• Two 2.5mm² conductors
• One 4mm² conductor

The correct conductor size must be determined by the lighting-circuit design and current electrical requirements rather than selected solely from the maximum physical terminal capacity.
