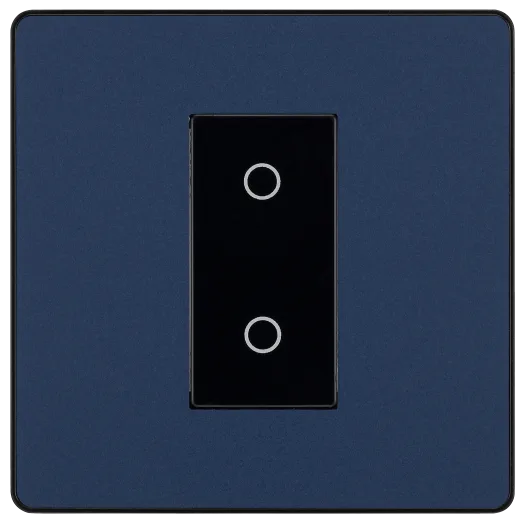

Create comfortable, adjustable lighting with the BG Evolve PCDDBTDM1B-01 Matt Blue Single Touch Dimmer Switch. Combining modern touch-sensitive control with a distinctive decorative finish, this trailing-edge master dimmer is ideal for contemporary homes, apartments, hotels, offices and design-led commercial interiors.

The single touch control replaces the traditional rotary dimmer knob with two clearly defined touch areas. A short press switches the connected lights on or off at the previously selected brightness, while pressing and holding the upper or lower touch area smoothly increases or decreases the light level. Double-pressing the upper control takes the lighting directly to maximum brightness, while double-pressing the lower control selects the minimum brightness level.

Designed for modern dimmable lighting, the PCDDBTDM1B-01 uses intelligent trailing-edge technology. It supports dimmable LED lighting from 5–100W, tungsten or incandescent lamps from 5–200W, halogen lighting from 20–200W and compatible dimmable CFL lamps from 5–100W. Lamp compatibility should always be checked before installation, as not every LED or CFL lamp is designed for dimming.

Support for lower-wattage lamps helps reduce flickering, while smooth, silent dimming prevents the buzzing or mechanical noise associated with some conventional dimmer controls. This makes the switch suitable for bedrooms, living rooms, dining areas, home cinemas and other spaces where quiet, precise lighting control is important.

A built-in soft-start function gradually raises the lighting level when switched on instead of immediately applying maximum output. BG states that the lighting reaches its set level in approximately one second, helping reduce sudden stress on compatible lamps and potentially extending their working life.

Key Features and Benefits

• BG Electrical Evolve decorative wiring accessory
• Product code: PCDDBTDM1B-01

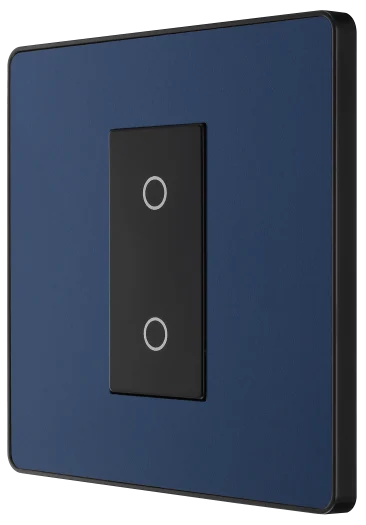

• Matt blue screwless front plate
• Contrasting black touch-control insert
• Single-gang master touch dimmer
• Intelligent trailing-edge dimming technology
• Maximum 100W dimmable LED load
• Maximum 200W incandescent or tungsten load
• Maximum 200W halogen load
• Maximum 100W compatible dimmable CFL load
• Smooth and silent dimming operation
• Short press for on/off control
• Press and hold to adjust brightness
• Double press for maximum or minimum brightness
• Previous brightness-level recall
• Soft-start lamp protection
• Built-in overload protection
• One-way operation as a standalone master
• Two-way operation with a compatible secondary touch dimmer

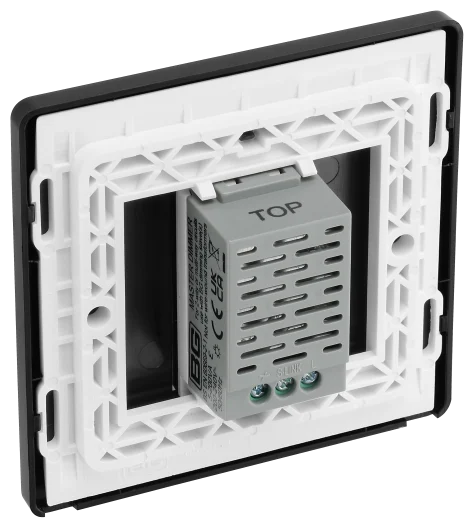

• Captive, backed-out terminal screws
• Minimum mounting-box depth of 25mm
• Approximate 86mm × 86mm faceplate
• BS EN 60669-2-1 compliant
• Manufacturer-advertised 25-year warranty
