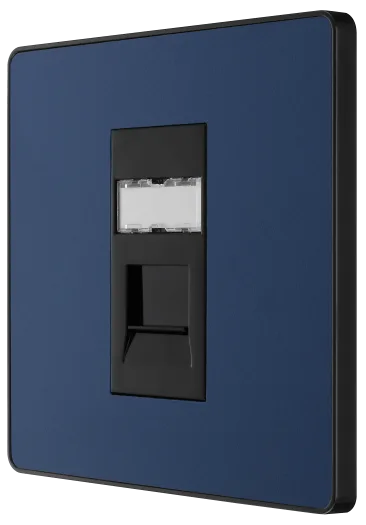

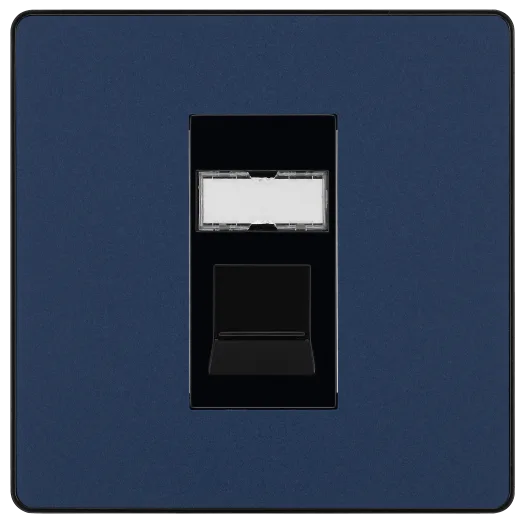

Create a stylish, professionally finished wired network connection with the BG Evolve PCDDBRJ451B-01 Matt Blue Cat6 RJ45 Data Socket. Designed for modern homes, offices and commercial interiors, this single-port Ethernet wall outlet combines Cat6 network performance with a contemporary screwless faceplate and contrasting black RJ45 insert.

The PCDDBRJ451B-01 provides a fixed network connection point for compatible Ethernet cabling. It is suitable for connecting devices such as desktop computers, smart televisions, games consoles, network switches, wireless access points, VoIP equipment and other compatible network-enabled devices to a structured cabling installation.

Unlike Wi-Fi, a correctly designed wired Ethernet connection can provide a consistent physical network link without depending entirely on wireless signal strength. This makes the outlet a practical choice for home offices, media rooms, gaming areas, meeting rooms, reception spaces and other locations where reliable network connectivity is important.

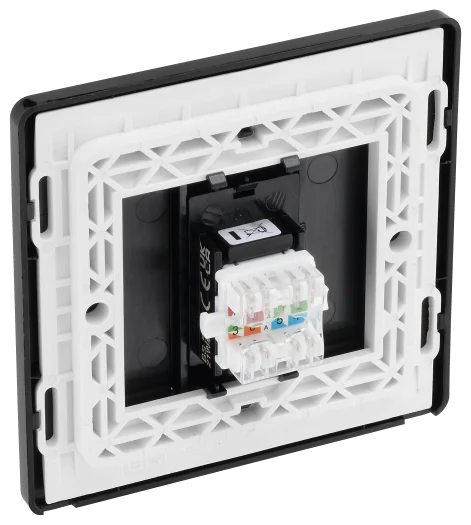

The outlet uses a Cat6 RJ45 module with IDC terminals. The individual conductors of a compatible data cable are terminated into the colour-coded IDC connections using a suitable punch-down tool. The supplied wiring information supports both the T568A and T568B connection standards, allowing the installer to match the wiring configuration used throughout the network.

BG Electrical states that the Cat6 outlet supports data-transfer speeds of up to 10Gbps at 250MHz over cable runs of up to 164 feet. Actual network speed will depend on the complete installation, including the cable type and length, termination quality, connected hardware and network configuration.

A built-in shutter helps protect the RJ45 port when it is not in use, while the identification window can be used to label the connection point. Labelling is particularly useful in offices, larger homes and structured cabling systems containing several network outlets, as it allows each data point to be matched more easily with the corresponding patch-panel or network-cabinet connection.

Key Features

• BG Electrical Evolve decorative data outlet
• Manufacturer product code: PCDDBRJ451B-01
• Matt blue screwless front plate
• Contrasting black RJ45 module
• Single Cat6 RJ45 Ethernet outlet
• IDC punch-down terminal connections
• Supports T568A and T568B wiring configurations
• Manufacturer-rated for speeds up to 10Gbps at 250MHz
• Recommended maximum stated distance of 164 feet
• Shuttered network socket
• Identification and labelling window
• Screwless front plate clips on and off
• Cable tie and protective terminal cap supplied
• Fixing screws and instructions included
• Minimum mounting-box depth of 35mm
• Approximate dimensions of 86mm × 86mm × 20mm
• ASTA approved under licence number 1163
• Manufacturer-advertised 25-year warranty
