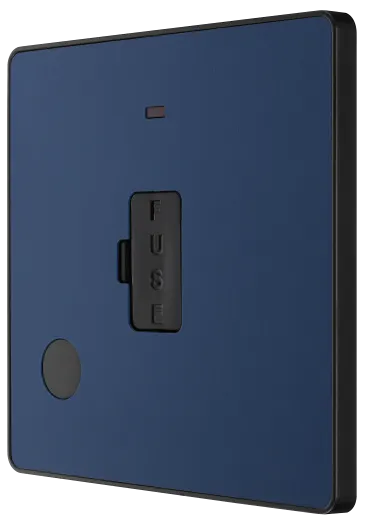

BG Evolve PCDDB54B 13A Unswitched Fused Connection Unit - Matt Blue

BG Evolve PCDDB54B-01 Matt Blue Unswitched Fused Spur with LED

Provide a permanently powered, fused connection for suitable fixed electrical equipment with the BG Evolve PCDDB54B-01 Matt Blue 13A Unswitched Fused Connection Unit.

Also known as an unswitched fused spur or FCU, this accessory combines a replaceable fuse, flush LED power indicator and integrated front flex outlet within a stylish screwless plate. Unlike the PCDDB52B-01 switched version, the PCDDB54B-01 has no rocker switch, making it suitable where the connected appliance does not require local on-and-off control at the connection point.

Ideal for Hardwired Appliances and Spur Circuits

The fused connection unit can provide a protected electrical supply to suitable fixed or hardwired appliances. The replaceable fuse allows the connected appliance cable to be protected using an appropriately rated BS 1362 fuse, subject to the appliance manufacturer’s requirements and the circuit design.

Typical applications may include compatible:

• Boilers and heating controls
• Extractor fans and cooker hoods
• Refrigerators and freezers
• Alarm and control equipment
• Ventilation systems
• Fixed kitchen appliances
• Water heaters
• Electric towel rails
• Commercial equipment
• Other permanently connected electrical loads

Because this is an unswitched FCU, the appliance remains supplied whenever the circuit is energised. Isolation must therefore be provided elsewhere where required by the installation or appliance instructions.

13A Unswitched Fused Connection

The PCDDB54B-01 is rated at 13A and 250V AC and is manufactured for use on suitable UK electrical installations. The fuse carrier is positioned on the front of the accessory, allowing the protective fuse to be replaced without removing the complete connection unit from the wall.

The correct fuse rating must always be selected for the connected appliance and flexible cable. A 13A accessory rating does not mean that every connected appliance should automatically use a 13A fuse.

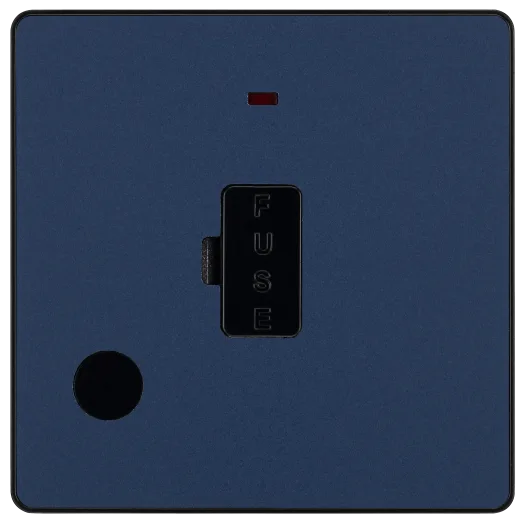

Flush LED Power Indicator

A low-power LED indicator is integrated into the front plate. Because the unit is unswitched, the indicator provides a visible confirmation that mains power is present at the fused connection unit.

This is particularly useful for equipment that may not otherwise show an obvious sign that its electrical supply is available, such as boilers, heating controls, ventilation systems and permanently connected appliances.

Integrated Front Flex Outlet

The built-in front flex outlet allows a suitable appliance cable to leave directly through the face of the fused connection unit.

The outlet incorporates a removable blanking section, making the accessory suitable for installations where the appliance flex cannot be concealed completely inside the wall. This can be useful for boilers, fans, heating equipment and kitchen appliances positioned close to the connection point.

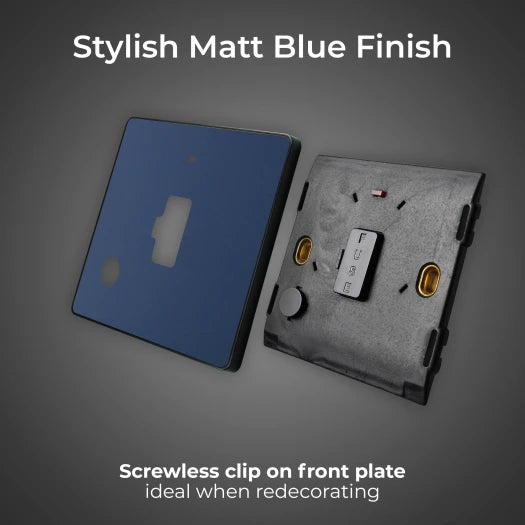

Contemporary Matt Blue Finish

The Matt Blue plate offers a distinctive alternative to conventional white or metallic fused spurs. Its deep blue finish works particularly well with:

• Navy kitchen cabinetry
• Dark feature walls
• Black appliances
• Contemporary utility rooms
• Modern apartments
• Boutique hotels
• Creative offices
• Retail and hospitality interiors

The black fuse carrier and flex-outlet components provide a coordinated contrast against the Matt Blue plate. Matching sockets, switches and other BG Evolve Matt Blue accessories can be used throughout the room to create a consistent electrical-accessory scheme.
