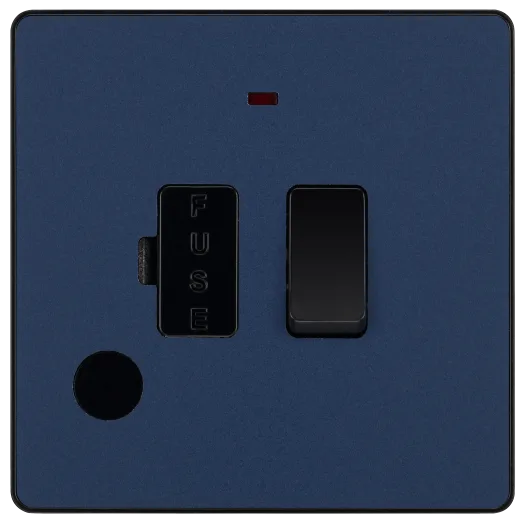

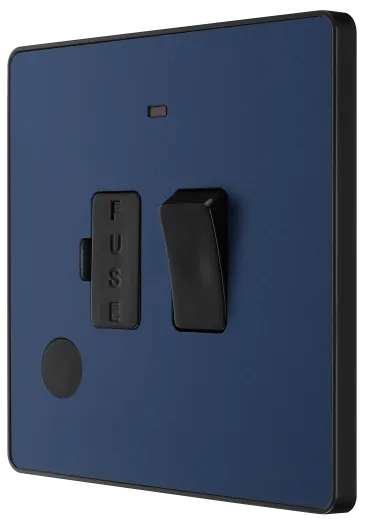

BG Evolve PCDDB52B 13A Switched Fused Connection Unit - Matt Blue

BG Evolve PCDDB52B-01 Matt Blue Switched Fused Spur with LED

Provide a safe and convenient connection point for suitable fixed electrical appliances with the BG Evolve PCDDB52B-01 Matt Blue 13A Switched Fused Connection Unit.

Commonly referred to as a switched fused spur or FCU, this accessory combines a replaceable fuse, double-pole rocker switch, flush LED power indicator and front-facing cable outlet in one compact unit. Its Matt Blue screwless plate and coordinated black components make it an attractive alternative to conventional white fused connection units in modern domestic and commercial interiors.

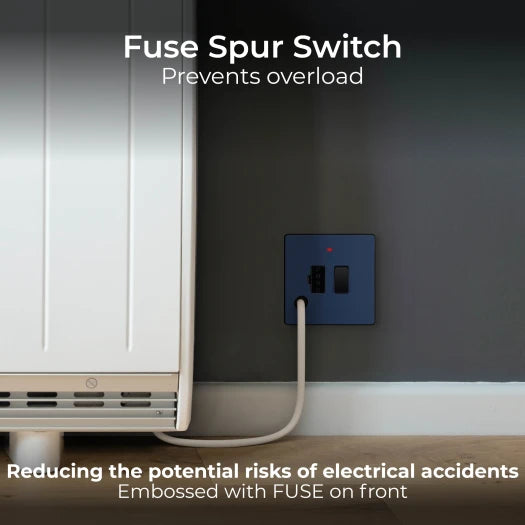

Suitable for Spur Circuits and Hardwired Appliances

The PCDDB52B-01 is designed to provide a fused connection from a suitable electrical circuit to a fixed or hardwired appliance. The integrated fuse gives the connected equipment and flexible cable an appropriate level of protection when the correct fuse rating is selected for the application.

Typical uses can include compatible:

• Boilers and heating controls
• Extractor fans and cooker hoods
• Dishwashers
• Washing machines
• Refrigeration equipment
• Electric towel rails
• Water heaters
• Waste-disposal units
• Ventilation equipment
• Fixed kitchen appliances

The suitability of the product, circuit, cable and fuse rating must be determined according to the connected appliance and current wiring requirements.

13A Fused Connection Unit

The fused connection unit is rated at 13A and 250V AC. It is suitable for appliances requiring a fused connection with a maximum load within the accessory and circuit ratings.

The removable fuse carrier is positioned on the front of the accessory, allowing the protective fuse to be accessed without removing the complete unit from the wall. The fuse carrier is finished in black to coordinate with the rocker switch and other insert components.

Double-Pole Rocker Switch

The PCDDB52B-01 incorporates a double-pole switch, allowing both the live and neutral conductors to be disconnected when the rocker is switched off.

This provides clear local control of the connected appliance and is particularly useful where equipment may need to be isolated for cleaning, servicing or everyday operation. The rocker is positioned prominently on the front of the unit for straightforward access.

Flush LED Power Indicator

A flush LED indicator provides a visible indication of the switched power state.

This is useful for appliances such as boilers, water heaters, fans and heating controls that may not otherwise show an obvious sign that power is being supplied. The indicator is integrated into the front of the unit without disrupting the slim appearance of the decorative plate.

Front-Facing Flex Outlet

The integrated front cable outlet allows a suitable flexible cable to leave directly through the face of the fused connection unit.

This makes the PCDDB52B-01 suitable for surface-connected appliances where the flex needs to remain visible rather than being routed entirely behind the wall. The outlet includes a removable blanking section, allowing it to be opened when required for the installation.

Contemporary Matt Blue Finish

The Matt Blue plate introduces a subtle decorative colour that works particularly well with:

• Navy or blue kitchen units
• Dark feature walls
• Black appliances
• Modern home offices
• Contemporary utility rooms
• Boutique hotels
• Apartments and new-build properties
• Creative commercial interiors

The contrasting black rocker, fuse carrier and indicator details create a coordinated appearance that can be matched with other Matt Blue sockets, switches and wiring accessories from the BG Evolve range.
