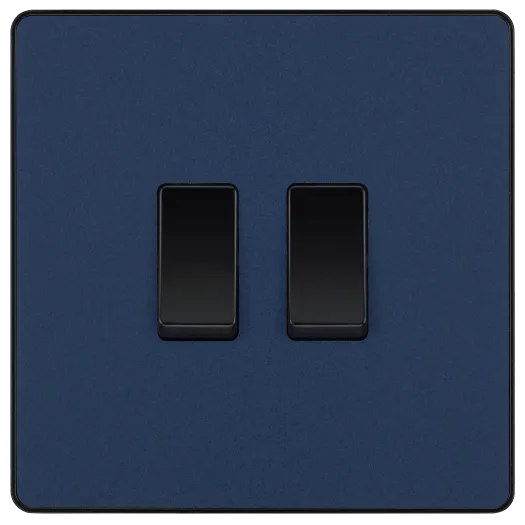

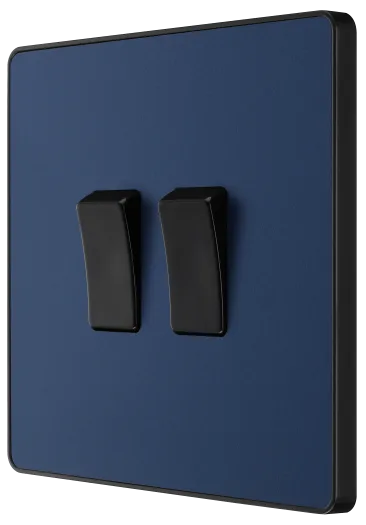

BG Evolve PCDDB42B 20A 16AX 2W Double Light Switch - Matt Blue

BG Evolve PCDDB42B-01 Matt Blue Double 2-Way Switch

Control two separate lighting circuits from one stylish wall position with the BG Evolve PCDDB42B-01 Matt Blue Double 2-Way Light Switch.

Combining two independently operated rocker switches with a slim screwless faceplate, this contemporary accessory delivers practical multi-zone lighting control without requiring two separate wall plates. Its deep Matt Blue finish and contrasting black rockers create a bold decorative look for modern kitchens, bedrooms, living spaces, home offices, apartments, hotels and commercial interiors.

Two Independent Lighting Controls

The PCDDB42B-01 contains two separate switch mechanisms, allowing two different lights or lighting zones to be controlled independently.

Typical applications include controlling:

• Main and feature lighting
• Ceiling and wall lights
• Kitchen and dining-area lighting
• Indoor and exterior lighting
• Bedroom and wardrobe lights
• Hallway and landing circuits
• Task and decorative lighting

Using one double switch creates a cleaner, more organised finish than installing two individual accessories beside one another.

Two-Way Switching on Both Rockers

Both rocker mechanisms provide 2-way switching. Each circuit can be controlled from the PCDDB42B-01 and a second compatible 2-way switch installed elsewhere.

This makes it suitable for:

• Kitchens with two entrances
• Staircases controlled upstairs and downstairs
• Long hallways
• Bedrooms with doorway and bedside controls
• Open-plan living areas
• Rooms with multiple access points

Each mechanism can also be wired for conventional one-way control where operation from only one location is required.

20A 16AX Electrical Rating

The switch is rated at 20A and 16AX and operates from a 220–240V electrical supply.

The 16AX rating makes it suitable for appropriate lighting loads that can produce higher current during switching. Each connected circuit must remain within the manufacturer’s published rating and be designed, protected and installed correctly.

Matt Blue Decorative Finish

The deep Matt Blue faceplate creates a distinctive alternative to standard white, chrome or black electrical accessories.

Its contrasting black rockers coordinate particularly well with:

• Navy kitchen cabinets
• Black handles and ironmongery
• Dark worktops
• Black appliances
• Contemporary light fittings
• Blue, grey and black colour schemes
• Modern hotel and apartment interiors

Matching sockets, USB charging outlets and other accessories from the BG Evolve Matt Blue range can be installed throughout the room to create a coordinated decorative wiring scheme.

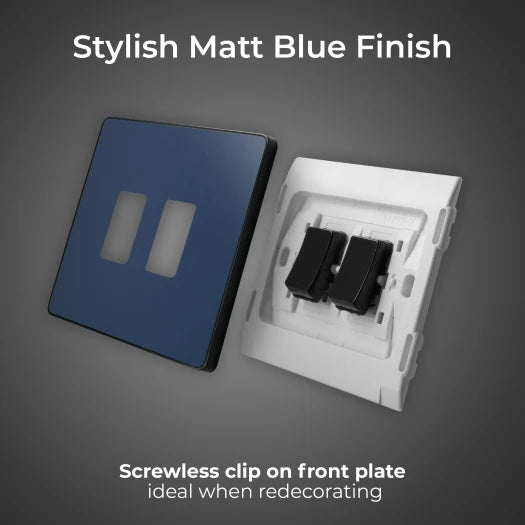

Slim Screwless Faceplate

The decorative front plate clips onto the installed switch base, concealing the fixing screws and creating a smooth, low-profile appearance.

It can be removed during painting or wallpapering and clipped back into place once decorating is complete. This helps protect the Matt Blue finish and avoids visible screw heads across the completed accessory.

The electrical supply must be safely isolated before removing the faceplate or carrying out installation work.

Captive Backed-Out Terminal Screws

Captive backed-out terminal screws are supplied in a ready-to-wire position and remain retained inside the switch mechanism.

This installer-friendly design helps reduce preparation time and lowers the risk of screws being dropped or lost during fitting.

The published terminal capacity is:

• Two 2.5mm² conductors
• Four 1.0mm² conductors
• One 4.0mm² conductor

Fixing screws and installation instructions are also supplied.

No Earth Terminal Required on the Switch

BG states that the switch itself does not require an earth terminal. This can make it a suitable decorative option for certain older homes where no protective conductor is present at the switch position.

This does not remove the need to assess the complete installation. Metal mounting boxes and other conductive components must still be earthed where required, and older wiring should be inspected by a competent electrician.

Minimum 25mm Back Box

The PCDDB42B-01 requires a minimum 25mm mounting box and uses standard 60.3mm fixing centres.

A deeper 35mm box may provide additional wiring space where several conductors are connected to both switch mechanisms. Suitable mounting options include compatible metal back boxes, dry-lining boxes and surface-mounted pattresses.

IP20 Indoor Installation

The switch carries an IP20 rating and is intended for dry indoor locations.

It is suitable for bedrooms, living rooms, kitchens away from direct water exposure, hallways, offices, hotels and apartment interiors. It should not be installed outdoors or where it may be exposed to rain, splashing water or excessive moisture.

Certification and Guarantee

The BG Evolve PCDDB42B-01 is certified to BS EN 60669-1 and carries ASTA licence number 1010.

BG provides a 25-year manufacturer warranty, subject to correct installation, appropriate use and its current warranty conditions.
