BG Evolve PCDDB22UWRB 13A Wi-Fi Extender Socket UK - Matt Blue

BG Evolve PCDDB22UWRB-01 Matt Blue Wi-Fi Extender Socket

Improve wireless coverage while retaining two usable mains outlets with the BG Evolve PCDDB22UWRB-01 Matt Blue Double 13A Switched Socket with Wi-Fi Extender and USB Charging.

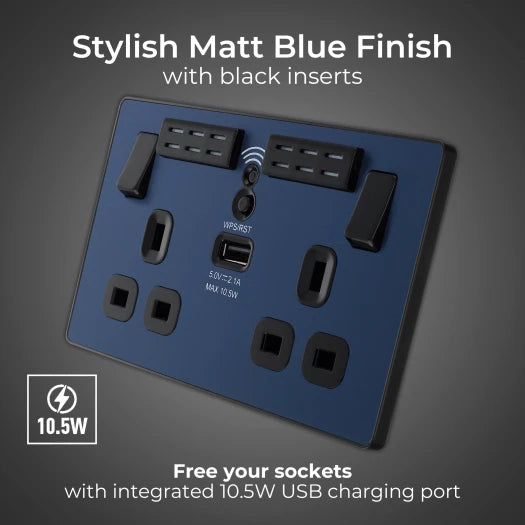

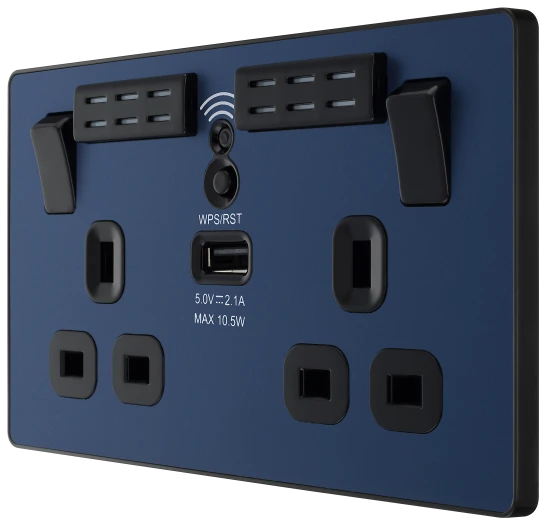

This multifunctional wall socket combines two individually switched UK power outlets, an integrated N300 Wi-Fi range extender and one 2.1A USB-A charging port. Its distinctive Matt Blue screwless plate and contrasting black inserts create a modern finish for bedrooms, home offices, kitchens, living spaces, apartments and hotel interiors.

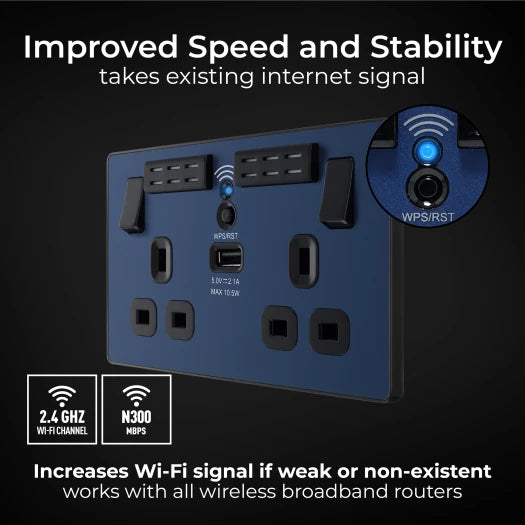

Integrated N300 Wi-Fi Range Extender

The built-in wireless extender repeats an existing router signal to improve coverage in areas where Wi-Fi has become weak or unreliable.

It supports:

• IEEE 802.11b, 802.11g and 802.11n
• 2.4GHz single-band Wi-Fi
• N300 link-rate classification
• Maximum stated wireless link rate of up to 300Mbps
• WPA-PSK, WPA2-PSK and combined WPA/WPA2-PSK security

The product requires an existing 2.4GHz broadband router. It does not provide broadband by itself and cannot extend a network operating exclusively on the 5GHz band. Actual internet speed will depend on the broadband service, router, property layout, interference and distance between connected devices.

Improve Wi-Fi Without Losing a Socket

Traditional plug-in Wi-Fi extenders occupy a mains outlet and project from the wall. The PCDDB22UWRB-01 integrates the extender inside the socket, leaving both 13A outlets available for appliances and electrical equipment.

BG recommends positioning the socket approximately halfway between the router and the weak-signal area. It should remain within sufficient range of the original router so it can receive and repeat the wireless connection effectively.

Suitable applications include:

• Upstairs bedrooms
• Home offices
• Converted lofts
• Hallways
• Living rooms
• Kitchens
• Apartments
• Hotel bedrooms
• Serviced accommodation
• Student residences

WPS, Browser and QR-Code Setup

The Wi-Fi extender can be configured through:

• One-touch WPS
• A compatible web browser
• QR-code setup

When successfully configured, it can use the same network name and password as the existing router, allowing compatible devices to connect through the established home network credentials. No separate mobile application is required for the setup methods described by BG.

Wi-Fi Holiday Mode

The wireless signal can be switched off without disabling the two 13A power outlets.

Pressing the WPS/reset control three times turns off the extender’s radio function. Repeating the process restores Wi-Fi operation. This provides a convenient way to disable the wireless extender when the property is unoccupied while leaving power available at both sockets.
