BG Evolve PCDDB12B Single 20A 16AX 2-Way Light Switch

BG Evolve PCDDB12B-01 Matt Blue 20A 16AX Light Switch

Introduce a distinctive splash of colour to contemporary interiors with the BG Evolve PCDDB12B-01 Matt Blue Single 2-Way Light Switch. Its muted blue screwless plate and contrasting black rocker create a modern decorative alternative to conventional white switches, making it ideal for stylish kitchens, bedrooms, living rooms, hallways, apartments and commercial interiors.

Part of the BG Evolve range, this single-gang wall switch combines a slim profile with practical 2-way switching, captive backed-out terminals and a 25-year manufacturer guarantee. It is designed for customers who want dependable everyday lighting control without compromising the appearance of the finished room.

Single 2-Way Lighting Control

The PCDDB12B-01 contains one rocker mechanism for controlling a single lighting circuit. Its 2-way configuration allows the connected light to be operated from two different locations when paired with another compatible 2-way switch.

This makes it particularly useful for:

• Staircases with switches upstairs and downstairs
• Hallways with controls at both ends
• Bedrooms with doorway and bedside switching
• Rooms with two separate entrances
• Open-plan living areas
• Hotel and apartment corridors

It can also be wired as a standard one-way switch where lighting control is required from only one position.

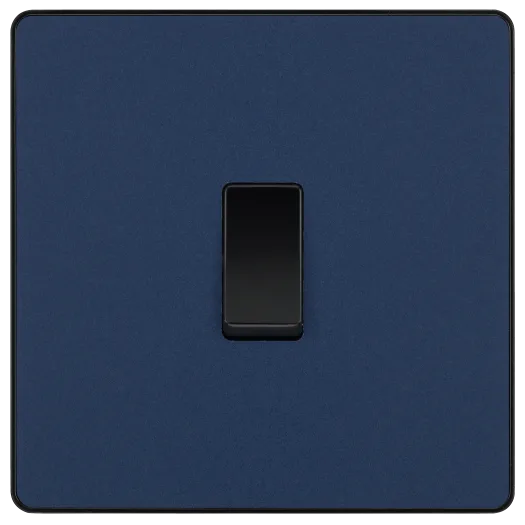

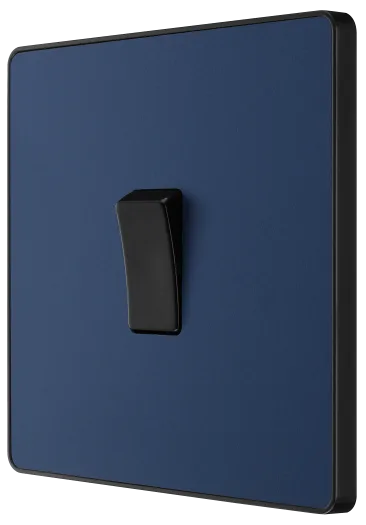

Matt Blue Plate with Black Rocker

The decorative Matt Blue plate gives the switch a softer, more contemporary appearance than polished metallic or plain white accessories. A black rocker insert creates a strong contrast against the blue front plate while coordinating with dark handles, light fittings, sockets and other interior details.

The finish is well suited to:

• Navy and blue kitchen cabinetry
• Modern children’s bedrooms
• Home offices
• Feature walls
• Contemporary apartments
• Boutique hotels
• Creative studios
• Retail and hospitality interiors

Matching Matt Blue sockets, dimmers and wiring accessories from the Evolve range can be used throughout the room to maintain a coordinated design.

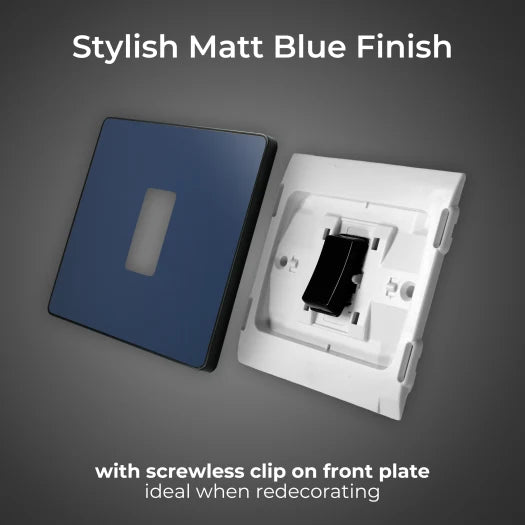

Slim Screwless Front Plate

The front plate clips onto the installed switch base, concealing the fixing screws and creating a smooth, low-profile appearance.

This clip-on design is also useful during decorating. The electrical base can remain installed while the Matt Blue plate is removed, then the decorative front can be refitted once painting or wallpapering is complete.

The electrical supply must always be isolated before removing the front plate or carrying out installation work.

20A 16AX Electrical Rating

The BG Evolve PCDDB12B-01 is rated at 20A and 16AX and operates from a 220–240V supply. The 16AX rating supports suitable lighting loads that may draw increased current during switching, provided the circuit remains within the manufacturer’s specification.

The switch is intended for fixed lighting circuits and is not a dimmer, smart switch, timer or motion sensor.

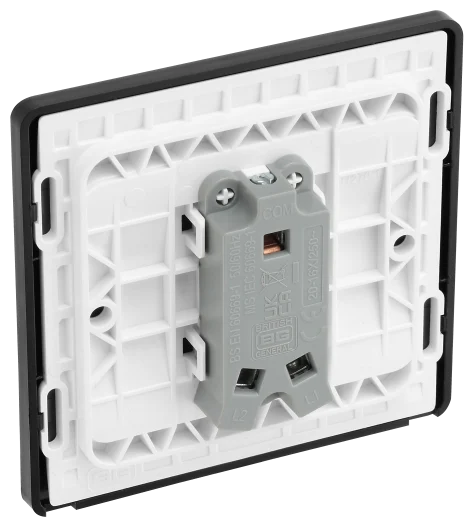

Captive Backed-Out Terminals

Captive backed-out terminal screws are retained within the switch mechanism and supplied in a ready-to-wire position. This helps speed up installation and reduces the risk of terminal screws being dropped or lost while the switch is being fitted.

BG lists the terminal capacity as:

• Two 2.5mm² conductors
• Four 1.0mm² conductors
• One 4.0mm² conductor

Fixing screws and installation instructions are supplied with the accessory.

No Earth Terminal on the Switch

BG states that the switch mechanism itself does not require an earth terminal. This may make it suitable for certain older properties where no protective conductor is present at the switch position, subject to the condition and safety of the existing installation.

This does not remove the need to earth a metal back box or other conductive components where required. Existing wiring should be assessed by a competent electrician before installation.
